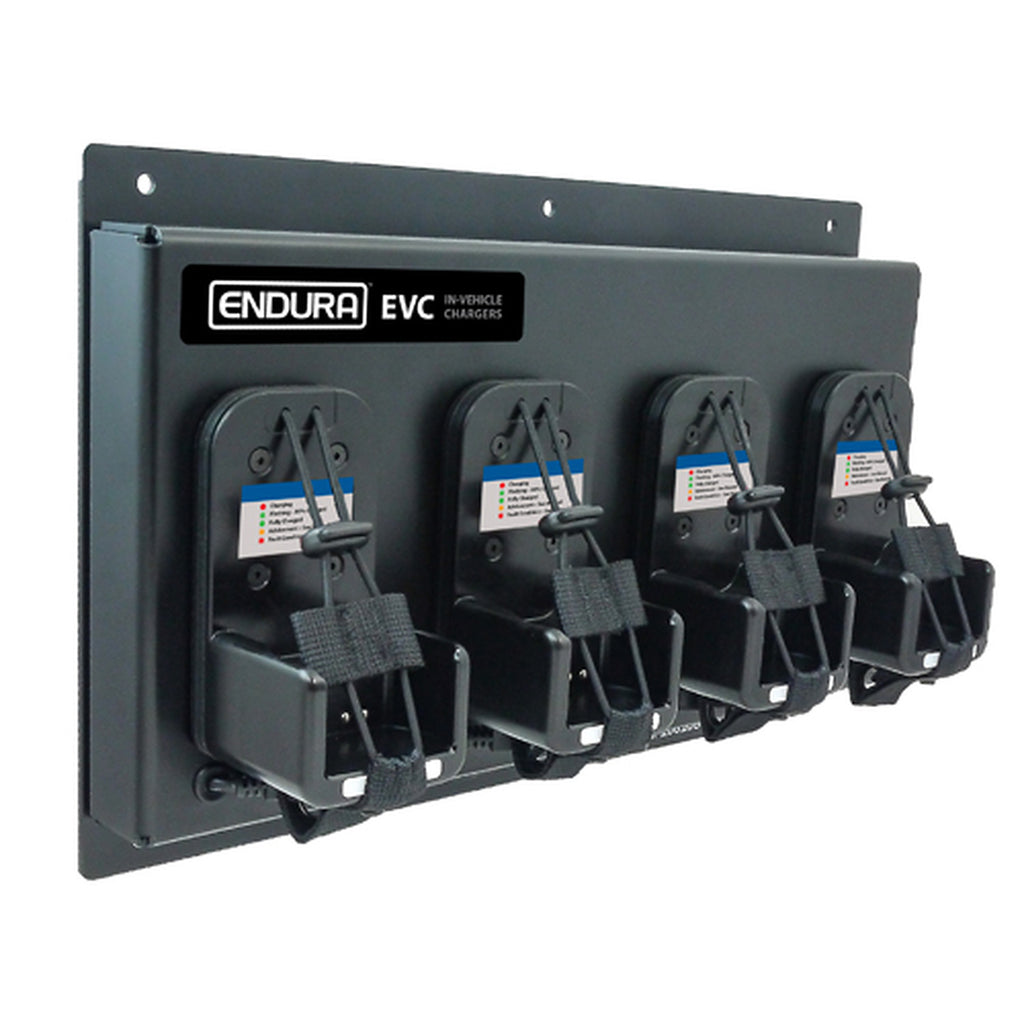

Kenwood KNB-L11 Rugged 4-UNIT In-vehicle Charger - Compatible Replacement.
Part number: (EVC-KW4-L11-4).
Compatible models
Kenwood NX-5200, NX-5300, NX-5400; EF JOHNSON Viking VP5000, VP6000, VP8000 radios; specifically with the Kenwood KNB-L11 battery
Features and specifications
- Includes DC power cable with locking XLR connector
- For use with Li-Ion and LiPo and NiMH batteries
- Dimensions (HxWxD): 10.0" x 16.0" x 4.8" (25.4 x 406.4 x 121.9 mm)
- Weight: Panel assembly weighs 3.6 lbs (1.63 kg); fully configured 4-position system weighs approximately 5.72 lbs (2.59 kg)
- The panel assembly includes the connector (part number EVC-HW-4), mounting screws, and integrated user-replaceable 6.3 × 32 mm fast-acting fuse (5A, 250V)
- Each charging position includes a tie-down strap and USB port for charging a mobile phone or tablet
- Status LED confirms charging in progress, charging 80% complete, and battery fully charged
- Charges battery packs with or without the radio attached
- 9 G shock and vibration tested for demanding vehicle environments; NFPA compliant
- 2-year extended warranty for materials & workmanship
- Note: Only Charges KNB-L11 Battery on Compatible Radios: Kenwood NX5200, NX5300, NX5400, or Viking VP5000, VP6000, VP8000 series
Related options and accessories
Explore these related items. Review the selected item for supported chemistry, required pods, and included components.
- EVC-HW-4 — Evc Charger Four Bay DC Power Cord — Special order item: typical lead time is 30 calendar days
- EVC-KW4-L11 — Kenwood KNB-L11 Battery Rugged In-vehicle Charger - Compatible Replacement — Kenwood NX-5200, NX-5300, NX-5400; EF JOHNSON Viking VP5000, VP6000, VP8000 radios; specifically with the Kenwood KNB-L11 battery Note: Only Charges KNB-L11 Battery on Compatible Radios: Kenwood NX5200, NX5300, NX5400, or Viking VP5000, VP6000, VP8000 series
Find more batteries, chargers, and accessories for Kenwood NX-5200
