Yuasa replacement references: YTX20, YTX20-BS, YTX20H, YTX20H-BS, YTX20HL, YTX20HL-BS, YTX20HL-BS-PW, YTX20HL-PW, YTX20L, YTX20L-BS, GYZ20H, GYZ20HL, GYZ20L, SYB16L-B, YB16-B, YB16-B-CX, YB16C-B, YB16CL-B, YB16L-B. Motobatt lists MLX20UHD-HP against these references. Confirm dimensions, polarity and any required installation accessories.

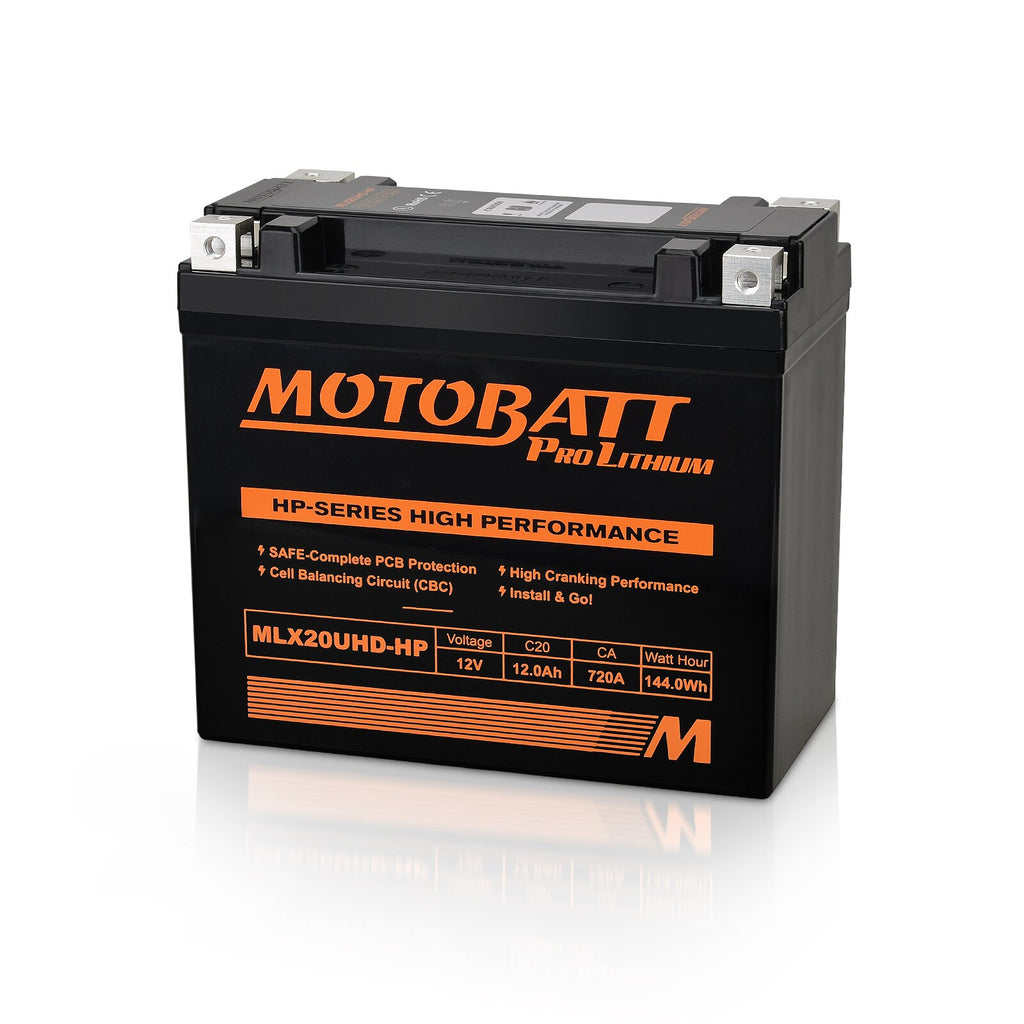

The Motobatt MLX20UHD-HP is a 13.2V LiFePO4 powersport battery. This model uses lithium iron phosphate chemistry; confirm charging-system and charger compatibility before installation.
Specifications
| Voltage | 13.2V |
|---|---|
| CCA | 720 |
| Weight | 3.06Lbs (1.39KG) |
| Dimensions (in / mm) | 6.89(175) W: 3.43(87) H: 6.10(155) |
| Assembly Figure Terminal Locations | 4 |
| Terminals | 4, Fixed HD Compatible |
| Spacers | 1x 175x87x20 mm Height Spacer Pt (EVA7) 1x 170x115x15 mm Width Spacer Pt (EVA8) |
Replacement references
Replaces Yuasa YTX20, YTX20L, YTX20BS, YTX20HBS, YTX20LBS, YTX20HLBS, YTX20HLBSPW, YTX20H, YTX20HL, YTX20HL-PW, YB16A, YB16A2, YB16B, YB16B2, YB16HLACX, SYB16LB, YB16LA, YB16LA2, YB16LB, YB16LB2, YB16CB, YB16CLB, YB16BCX, GT16L-BS, GT16BS, CTX19-BS CTX19L-BS , GYZ20H, GYZ20L, GYZ20HL, 12N163A, 12N163B, 12N164A, 12N164B Motobatt MBTX20U, MBTX20UHD Firepower 490-2425 DEKA ETX16, ETX16L, ETX20, ETX20L, ODYSSEY AGM16CL, AGM20L, PC625 HJX20HQ-FP-B
Manufacturer cross-references help identify options. Confirm voltage, polarity, complete dimensions and any required spacer or terminal adapter for your installation.
Choose a compatible charger
Match battery voltage and chemistry to the charger’s supported modes. Follow the charging limits in the battery instructions.
Shop Motobatt battery chargers or browse powersport batteries.
