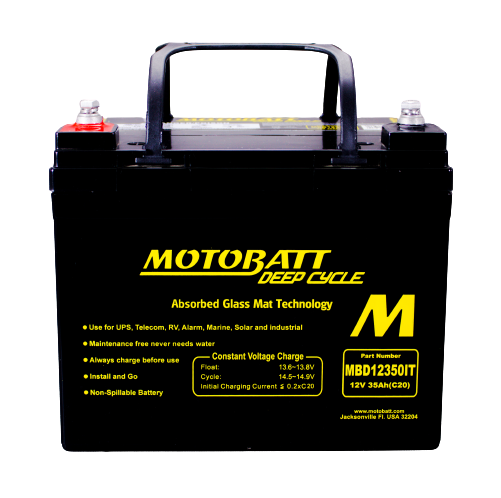

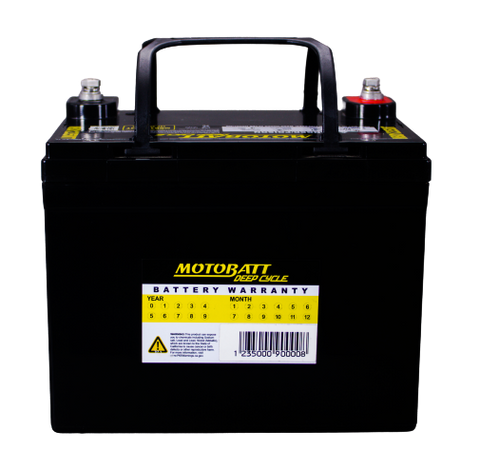

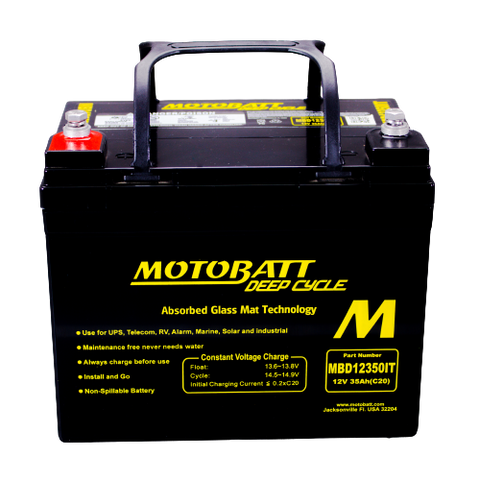

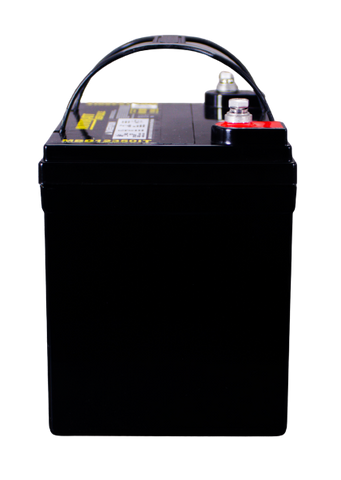

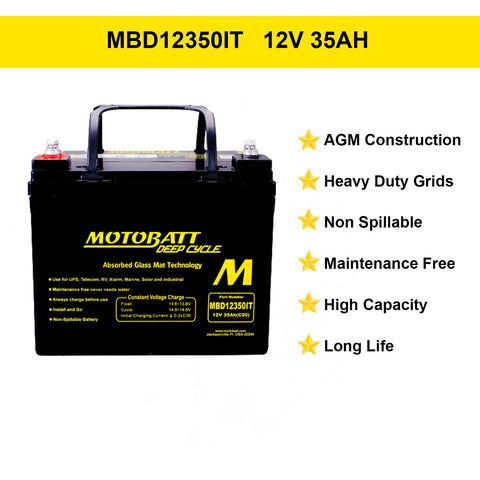

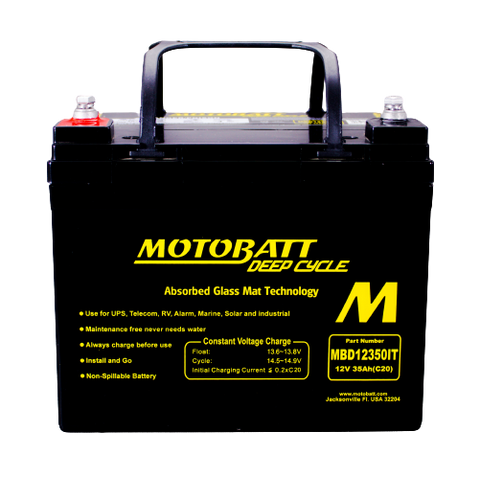

Motobatt MBD12350IT 12V AGM Battery. Confirm the manufacturer specifications and installation requirements before ordering.
Product details
Battery Motobatt AGM MBD12350IT, 12N24-4 Rhino/Mobility Battery*2/90
Specifications
| Battery Type | MBD12350IT |
|---|---|
| Specifications | |
| Voltage | 12 |
| Rated Capacity (20HR) | 35AH |

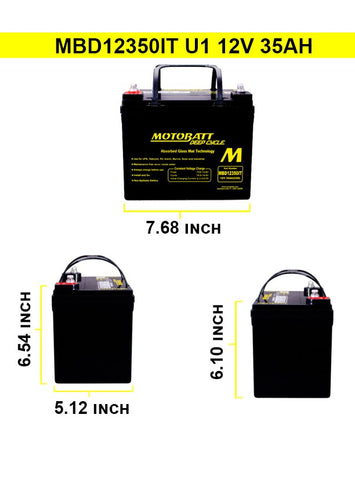

| Dimensions (in / mm) | Total Height Including Terminals: L:195mm (7.68) W:130 (5.12) H:155mm (6.10) |
| Weight | 9.21KG (20.30) Lbs |
| Capacity 77F (25C) | |
| 20 Hour Rate | 35AH |
| 10 Hour Rate | 32AH |
| 5 Hour Rate | |
| Reserve Capacity @25Amps | 48 minutes |
| Reserve Capacity @75Amps | |
| Internal Resistance (Fully Charged) | 10 Ohms |
| Capacity Affected by temperature (20HR) | 104F (40C) 102% 77F (25C) 100% 32F (0C) 85% 5F (-15C) 65% |
| Self Discharge 77F (25C) | 3 Months 91% 6 Months 82% 12 Months 65% |
| Max Discharge Current 77F (25C) | 1000A 5S |
| Terminal | M6 Internal Thread Terminal |
| Charging | Cycle 14.5V-14.9V Float 13.6V-13.8V |
Manufacturer replacement references
Group U1 Lifeline AGM1234T, Full River DC35-12A, UPG12350 Solar, Telecommunications, RV, Wheelchair Mobility, Marine, Automotive, Renewable Energy Storage, Security and UPS in fact anywhere a quality deep cycle battery is required.
