Motobatt MBD10512NB 12V AGM Deep Cycle Battery. Confirm the manufacturer specifications and installation requirements before ordering.
Product details
Battery Deep Cycle Motobatt DC10512 NB (10HR) 110AH (20HR) BCI-27
Specifications
| Battery Type | MBD10512NB |
|---|---|
| Specifications | |
| Voltage | 12 |
| Rated Capacity (20HR) | 105AH |

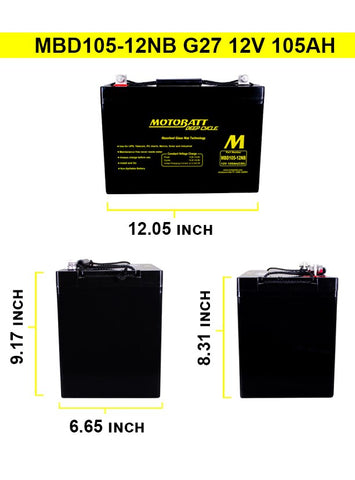

| Dimensions (in / mm) | L:12.05 (306) W:6.65 (169) H:8.31 (211) Total Height Including Terminals: 215mm (8.46") |
| Weight | 30.7KG (67.66 lbs) |
| Capacity 77F (25C) | |
| 20 Hour Rate (5.7A to 10.5 Volts) | 105AH |
| 10Hour Rate (11.0A to 10.5 Volts) | 95AH |
| 5 Hour Rate (18.8A to 10.5 Volts) | 92AH |
| Reserve Capacity @25Amps | 227 Minutes |
| Reserve Capacity @75Amps | 58 Minutes |
| Internal Resistance (Fully Charged) | 4.0 Ohms |
| Capacity Affected by temperature (20HR) | 104F (40C) 102% 77F (25C) 100% 32F (0C) 85% 5F (-15C) 65% |
| Self Discharge 77F (25C) | 3 Months 91% 6 Months 82% 12 Months 65% |
| Max Discharge Current 77F (25C) | 1000A (5S) |
| Terminal | M8 (With TP08 Brass AP and Stainless Steel Nuts and Bolts Included) |
Manufacturer replacement references
Group 27 Lifeline GPL27T, Full River DC105-12, Rolls S12-116-RE Solar, Telecommunications, RV, Wheelchair Mobility, Marine, Automotive, Renewable Energy Storage, Security and UPS in fact anywhere a quality deep cycle battery is required.
