Inspired Energy

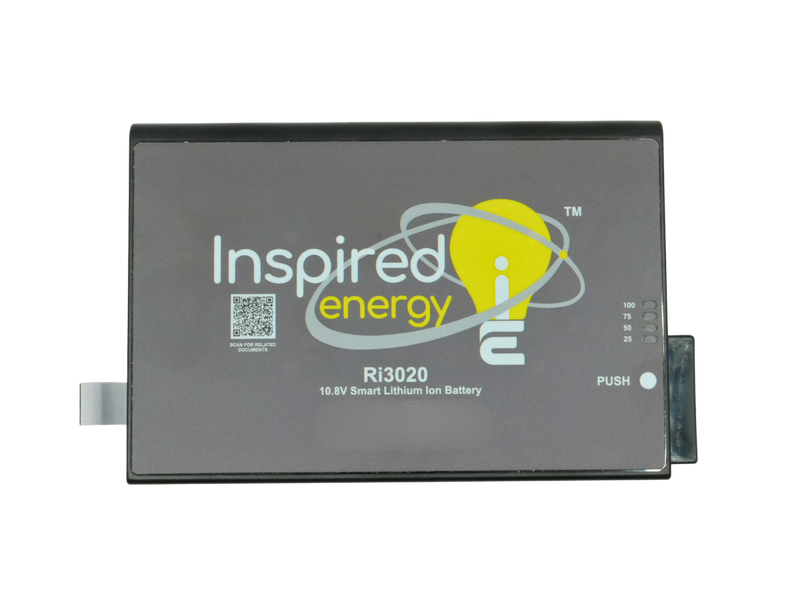

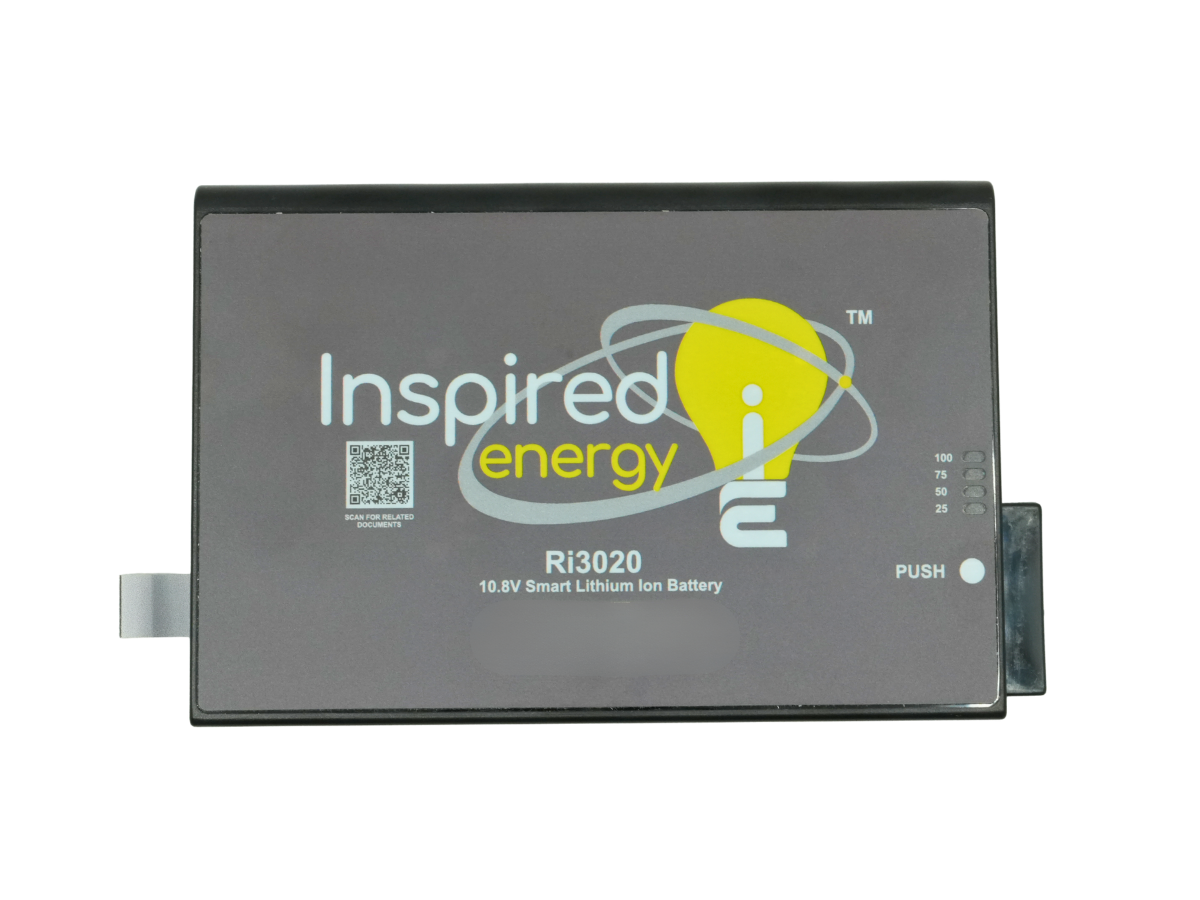

Inspired Energy Ri3020QE29 Battery — 10.8V, 8.4Ah
Part number: Ri3020QE29
$200.28
Need selection help, a volume quote or a confirmed delivery date?
Browse the Inspired Energy finderThe Inspired Energy Ri3020QE29 is a 10.8 V rechargeable lithium-ion battery pack rated 8.4 Ah, with 91 Wh of stored energy. Match its 5-Pin Standard Connector connection and physical dimensions to your device before ordering.
Specifications
| Voltage | 10.8 V |
|---|---|
| Capacity | 8.4 Ah |
| Current | 10 A |
| Power | 75 W |
| Energy (Wh) | 91 |
| Dimensions L × W × H (mm) | 167.7 x 109.22 x 22.86 mm |
| Chemistry / Cell Array | 9 Li-ion 18650 cells / 3S3P array |
| Mating Connector | 5-Pin Standard Connector |
| Fuel Gauge Display | Push button 4-bar LED |
Compatible chargers
Manufacturer-listed connections are shown below. Check each item’s specification and selection notes for the required configuration.
Data sheets and manufacturer documents
Help selecting and ordering
Send us your existing part number, equipment model, required quantity and delivery date. For batteries, include voltage, connector and enclosure dimensions. For chargers and power accessories, include the battery model, input supply and required output or mains-cord arrangement. Product-family similarity alone does not confirm interchangeability.
