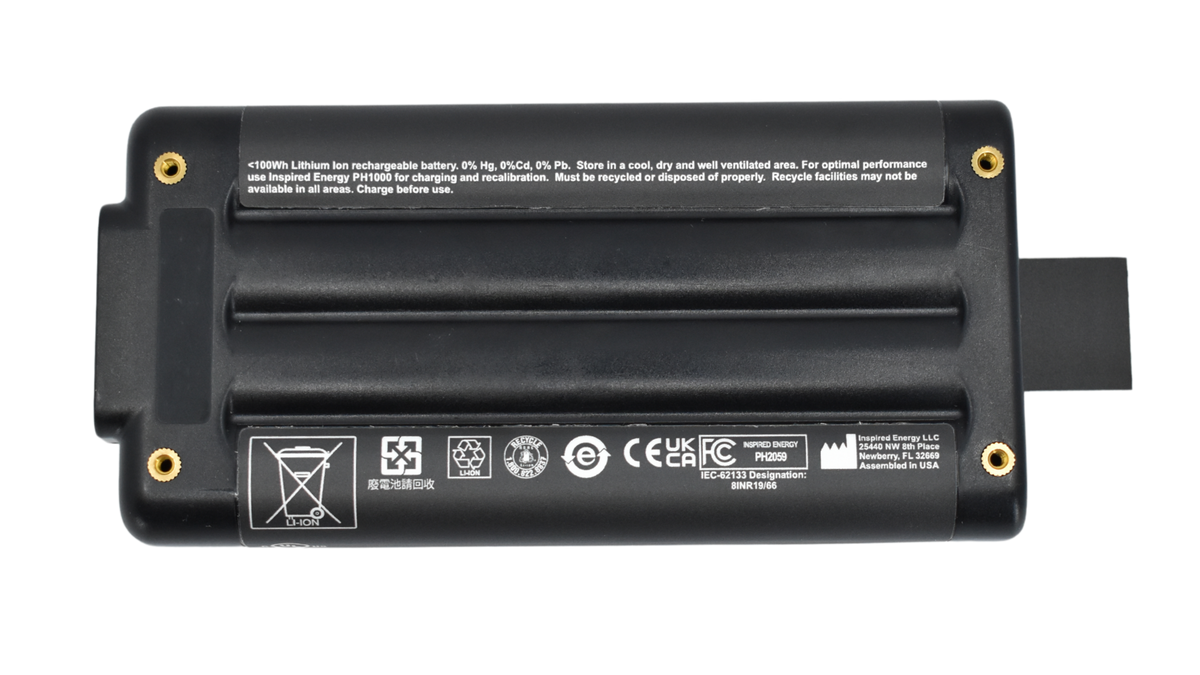

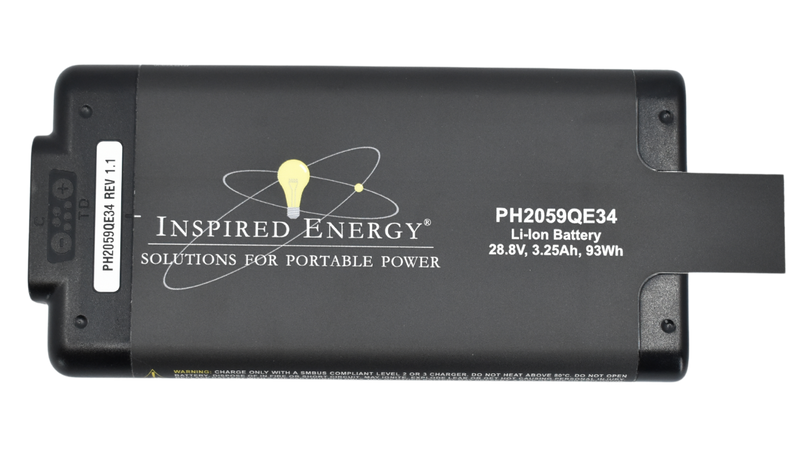

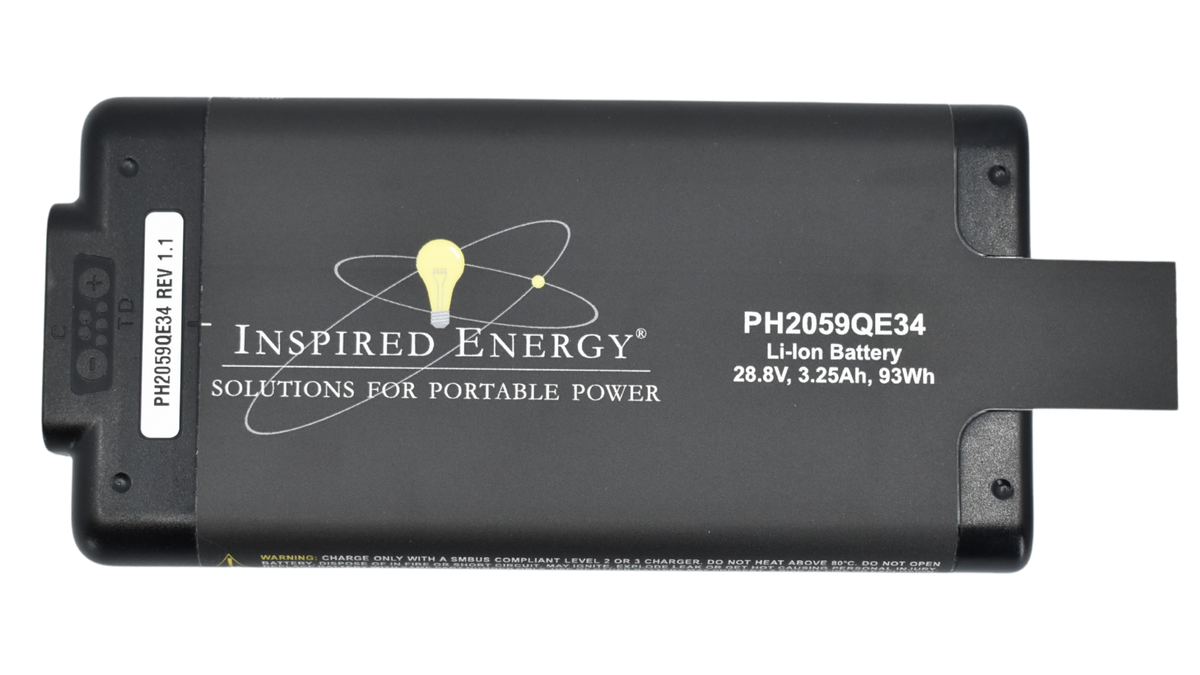

Inspired Energy PH2059QE34 Battery — 28.8V, 3.4Ah
Inspired Energy PH2059QE34 Battery — 28.8V, 3.4Ah

Inspired Energy

Inspired Energy PH2059QE34 Battery — 28.8V, 3.4Ah

Part number: PH2059QE34

$190.10

Need selection help, a volume quote or a confirmed delivery date?

Browse the Inspired Energy finder

The Inspired Energy PH2059QE34 is a 28.8 V rechargeable lithium-ion battery pack rated 3.4 Ah, with 98 Wh of stored energy. Match its 7-Pin D-Sub connection and physical dimensions to your device before ordering. Use a manufacturer-listed P-series charger.

Specifications

Voltage 28.8 V
Capacity 3.4 Ah
Current 6.0 A
Power 120 W
Dimensions L × W × H (in) 6.62" X 3.22" X 1.10"
Dimensions L × W × H (mm) 168.1mm X 81.8mm X 27.7mm
Energy (Wh) 98
Shape Rectangular
Chemistry / Cell Array 8 Li-ion 18650 cells / 8S1P array
Equivalent Lithium Content 6.9g
Mating Connector 7-Pin D-Sub
Fuel Gauge Display Always on 5-Bar LCD

Compatible chargers

Manufacturer-listed connections are shown below. Check each item’s specification and selection notes for the required configuration.

Compatible accessories and related components

Manufacturer-listed connections are shown below. Check each item’s specification and selection notes for the required configuration.

Data sheets and manufacturer documents
Help selecting and ordering

Send us your existing part number, equipment model, required quantity and delivery date. For batteries, include voltage, connector and enclosure dimensions. For chargers and power accessories, include the battery model, input supply and required output or mains-cord arrangement. Product-family similarity alone does not confirm interchangeability.
