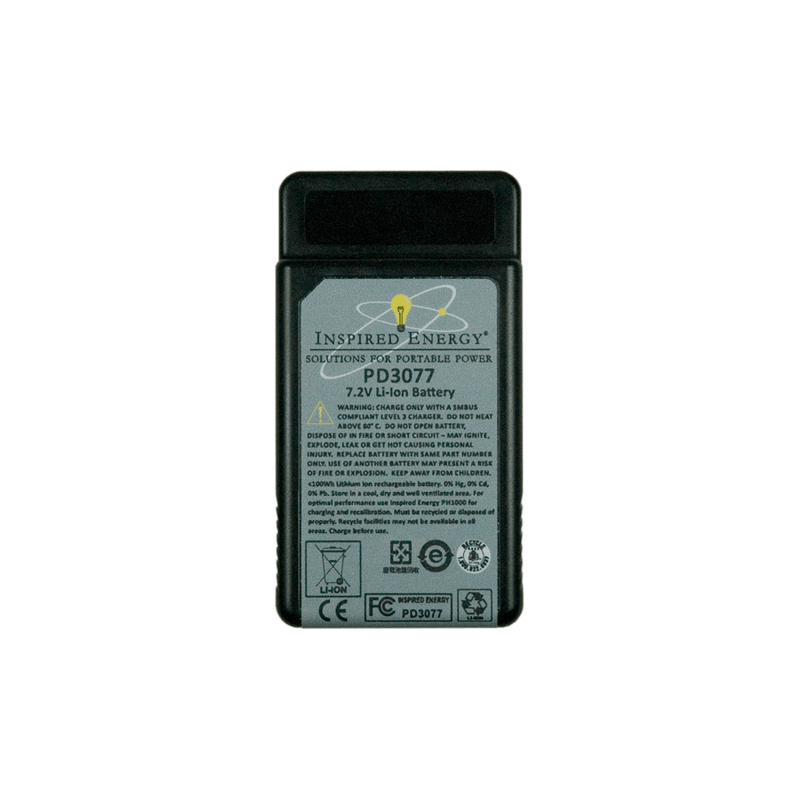

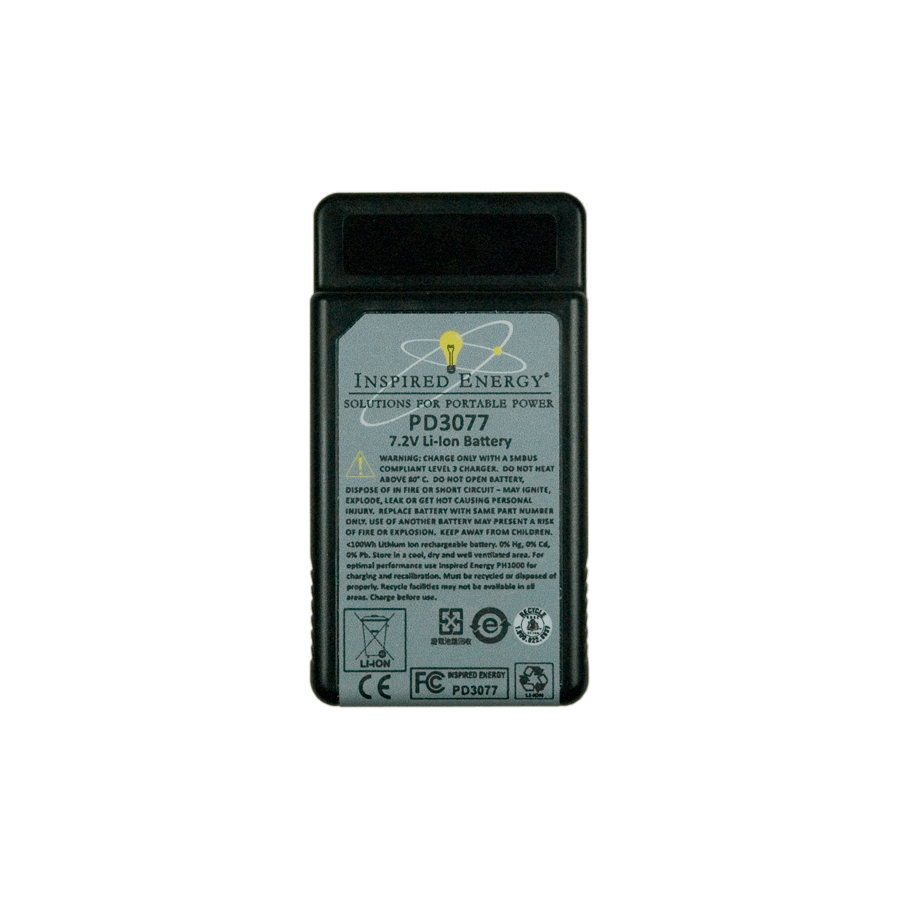

Inspired Energy PD3077HD26 Legacy Battery — Replacement Guide
Part number: PD3077HD26
Request a configuration quote
We’ll confirm the model, availability and price for your application.
Request a quote Browse the Inspired Energy finderThe Inspired Energy PD3077HD26 is a 7.2 V rechargeable lithium-ion battery pack rated 5.2 Ah, with 37 Wh of stored energy. Match its 7-Pin D-Sub connection and physical dimensions to your device before ordering. Use a manufacturer-listed P-series charger.
Legacy model: The manufacturer lists PD3077HD26 as obsolete. The manufacturer lists PD3077HD29 as the replacement; contact us to confirm availability. Confirm device compatibility before changing models.
Configuration quote: Contact us to confirm availability, configuration and pricing for this item.
Specifications
| Dimensions L × W × H (in) | 3.8" X 2.1" X 1.8" |
|---|---|
| Dimensions L × W × H (mm) | 99mm X 54mm X 46mm |
| Energy (Wh) | 37 |
| Shape | Rectangular |
| Chemistry / Cell Array | 4 Li-ion 18650 cells / 2S2P array |
| Equivalent Lithium Content | ≤4g |
| Mating Connector | 7-Pin D-Sub |
| Fuel Gauge Display | Push button 4-bar LED |
| IP Rating | IP65 |
| Voltage | 7.2 V |
| Capacity | 5.2 Ah |
| Current | 20.0 A |
| Power | 100 W |
Compatible chargers
Manufacturer-listed connections are shown below. Check each item’s specification and selection notes for the required configuration.
Compatible accessories and related components
Manufacturer-listed connections are shown below. Check each item’s specification and selection notes for the required configuration.
- 619039
- 699012 — enquire
- 699013 — enquire
- 699014 — enquire
- 699023 — enquire
- 936238A1 — enquire
- ATA005P — enquire
- EB429 — enquire
Data sheets and manufacturer documents
Help selecting and ordering
Send us your existing part number, equipment model, required quantity and delivery date. For batteries, include voltage, connector and enclosure dimensions. For chargers and power accessories, include the battery model, input supply and required output or mains-cord arrangement. Product-family similarity alone does not confirm interchangeability.
