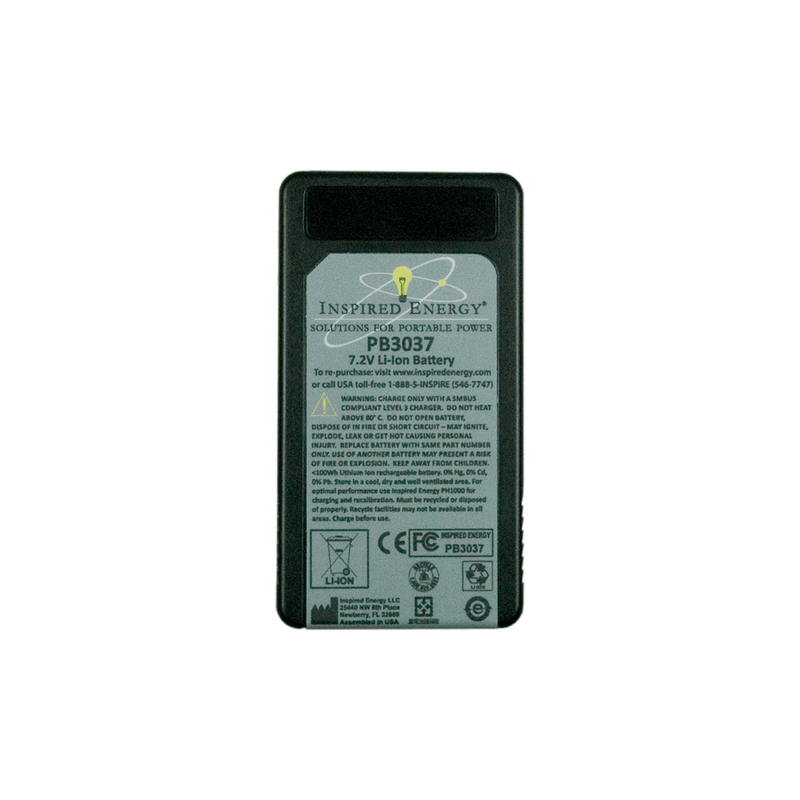

Inspired Energy PB3037HD29 Battery — 7.2V, 2.8Ah

Inspired Energy

Inspired Energy PB3037HD29 Battery — 7.2V, 2.8Ah

Part number: PB3037HD29

$157.15

Need selection help, a volume quote or a confirmed delivery date?

Browse the Inspired Energy finder

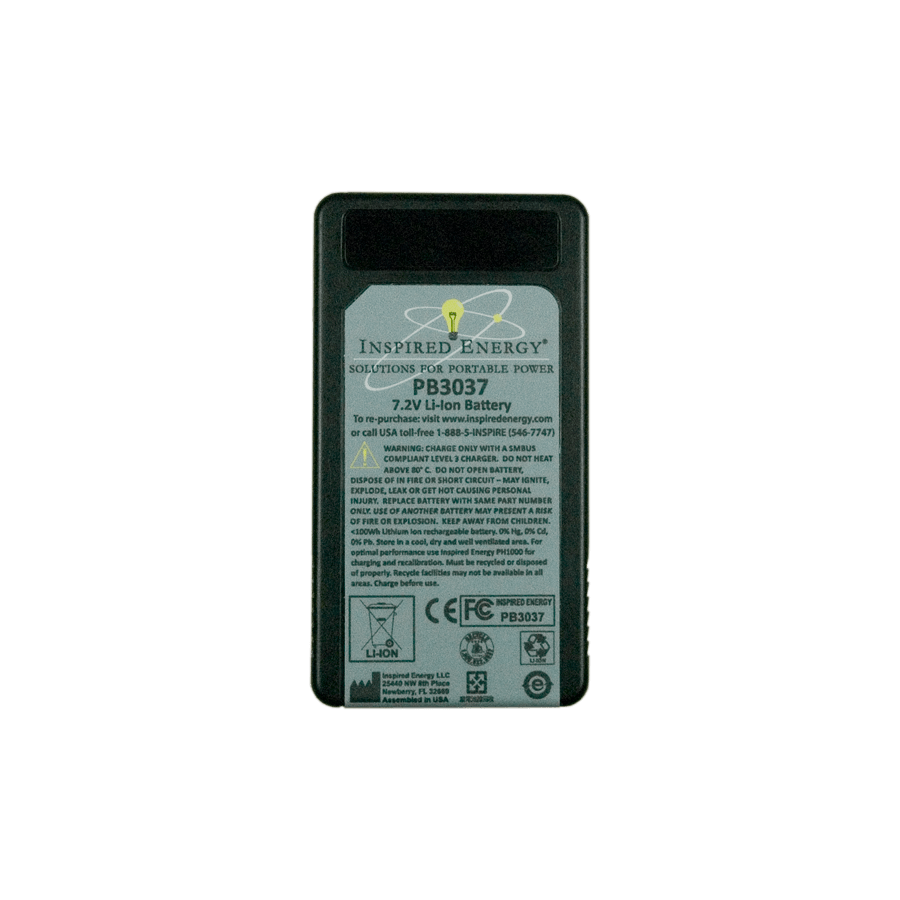

The Inspired Energy PB3037HD29 is a 7.2 V rechargeable lithium-ion battery pack rated 2.8 Ah, with 20 Wh of stored energy. Match its 7-Pin D-Sub connection and physical dimensions to your device before ordering. Use a manufacturer-listed P-series charger.

Specifications

Dimensions L × W × H (in) 3.8" X 2.1" X .54"
Dimensions L × W × H (mm) 99mm X 54mm X 29mm
Energy (Wh) 20
Shape Rectangular
Chemistry / Cell Array 2 Li-ion 18650 cells / 2S1P array
Equivalent Lithium Content ≤4g
Mating Connector 7-Pin D-Sub
Fuel Gauge Display Push button 4-bar LED
IP Rating IP65
Voltage 7.2 V
Capacity 2.8 Ah
Current 10.0 A
Power 50 W

Compatible chargers

Manufacturer-listed connections are shown below. Check each item’s specification and selection notes for the required configuration.

Compatible accessories and related components

Manufacturer-listed connections are shown below. Check each item’s specification and selection notes for the required configuration.

Data sheets and manufacturer documents
Help selecting and ordering

Send us your existing part number, equipment model, required quantity and delivery date. For batteries, include voltage, connector and enclosure dimensions. For chargers and power accessories, include the battery model, input supply and required output or mains-cord arrangement. Product-family similarity alone does not confirm interchangeability.
