Inspired Energy NL2024ED22 Legacy Battery — Replacement Guide

Part number: NL2024ED22

Request a configuration quote

We’ll confirm the model, availability and price for your application.

Request a quote Browse the Inspired Energy finder

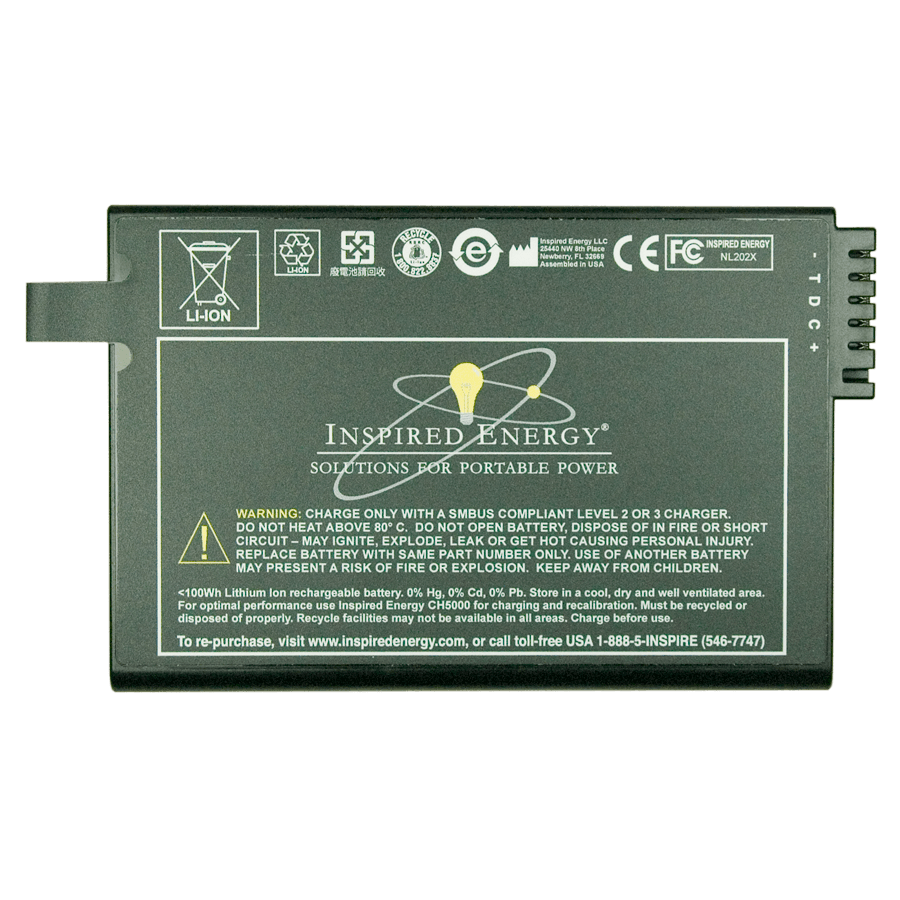

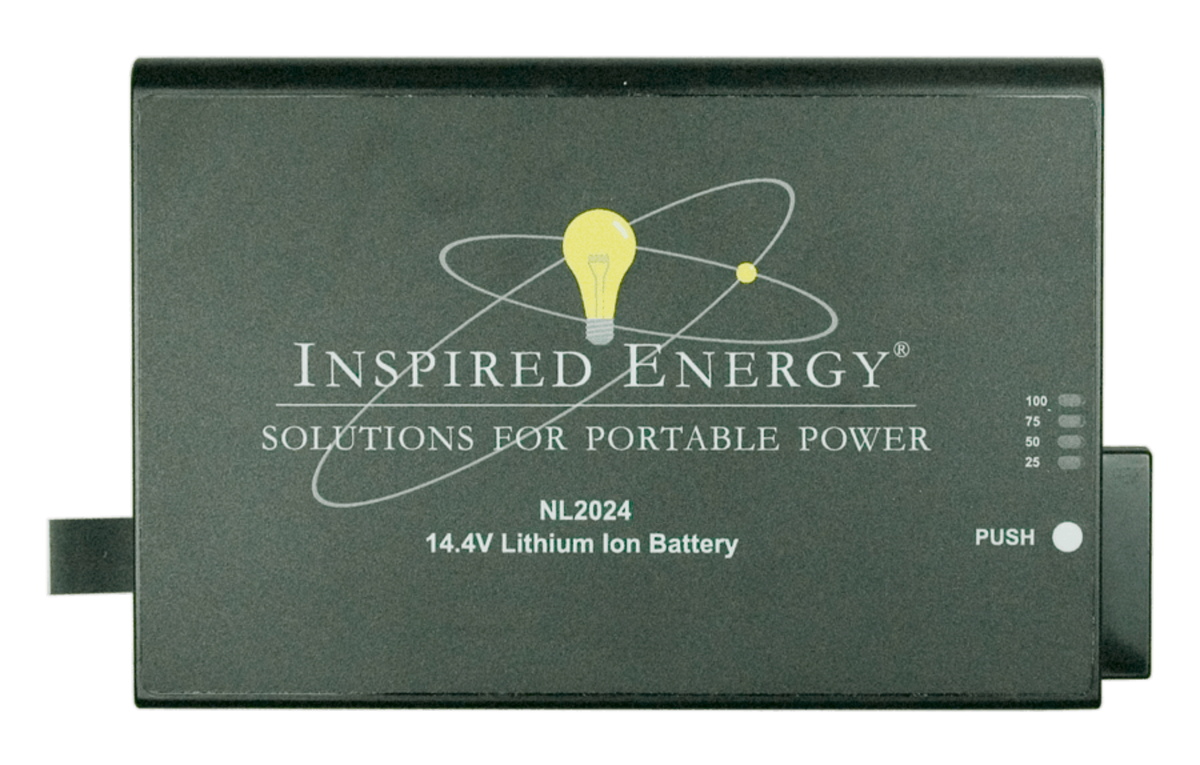

The Inspired Energy NL2024ED22 is a 14.4 V rechargeable lithium-ion battery pack rated 6.6 Ah, with 95 Wh of stored energy. Match its AMP P/N 5787422-1 or 5787446-1 connection and physical dimensions to your device before ordering.

Legacy model: The manufacturer lists NL2024ED22 as obsolete. Review RH3024HD34 as the listed replacement. Confirm device compatibility before changing models.

Configuration quote: Contact us to confirm availability, configuration and pricing for this item.

Specifications

Dimensions L × W × H (in) 6.6" X 4.3" X 0.9"
Dimensions L × W × H (mm) 167.7mm X 109.22mm X 22.86mm
Energy (Wh) 95
Shape Rectangular
Chemistry / Cell Array 12 Li-ion 18650 cells / 4S3P array
Equivalent Lithium Content ≤8g
Mating Connector AMP P/N 5787422-1 or 5787446-1
Cavity Size 22.5mm x 109mm cross section
Fuel Gauge Display Push button 4-bar LED
Belt Pack Number BPXX or BC2BVX
Voltage 14.4 V
Capacity 6.6 Ah
Current 10.0 A
Power 100 W

Compatible chargers

Manufacturer-listed connections are shown below. Check each item’s specification and selection notes for the required configuration.

Compatible accessories and related components

Manufacturer-listed connections are shown below. Check each item’s specification and selection notes for the required configuration.

Data sheets and manufacturer documents
Help selecting and ordering

Send us your existing part number, equipment model, required quantity and delivery date. For batteries, include voltage, connector and enclosure dimensions. For chargers and power accessories, include the battery model, input supply and required output or mains-cord arrangement. Product-family similarity alone does not confirm interchangeability.
