Inspired Energy Ni2020HD24 Legacy Battery — Replacement Guide
Part number: Ni2020HD24
Request a configuration quote
We’ll confirm the model, availability and price for your application.

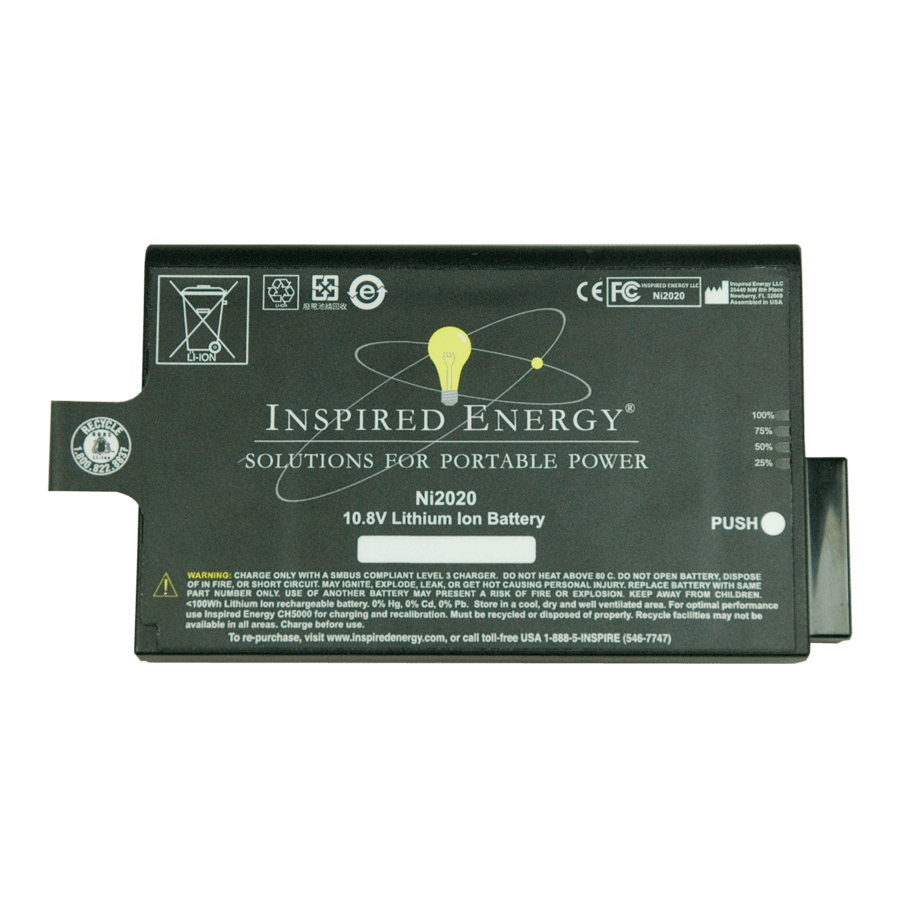

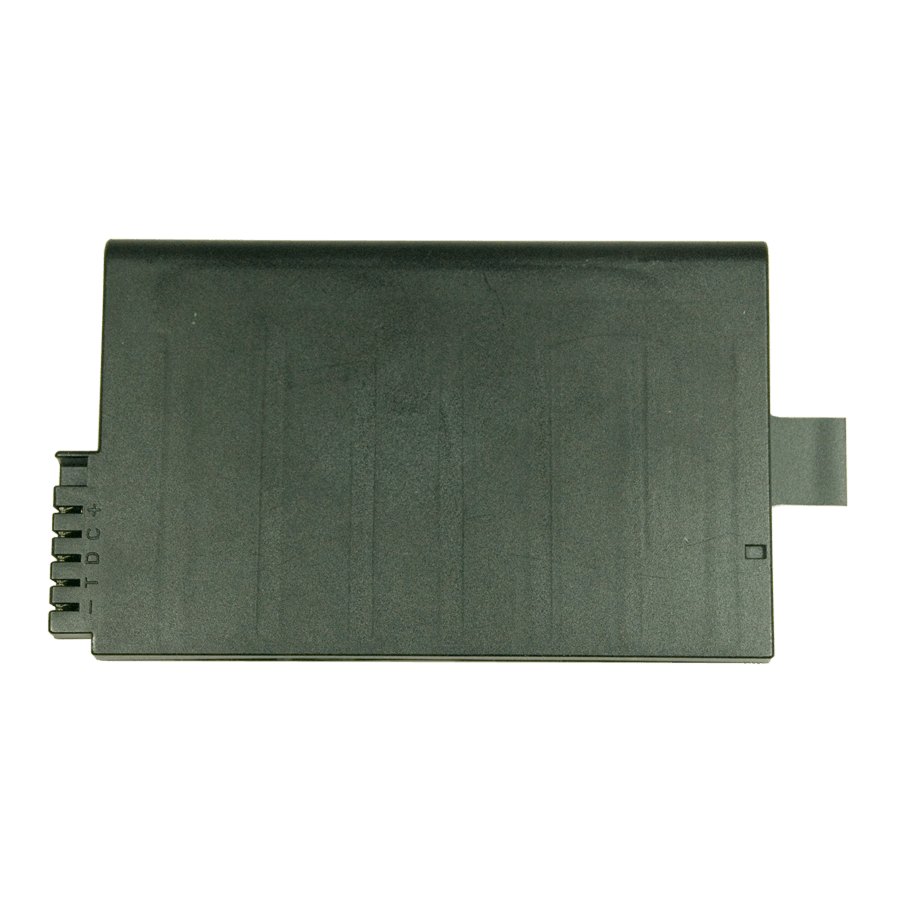

Request a quote Browse the Inspired Energy finderThe Inspired Energy Ni2020HD24 is a 10.8 V rechargeable lithium-ion battery pack rated 7.2 Ah, with 78 Wh of stored energy. Match its 5-Pin Standard Connector connection and physical dimensions to your device before ordering.
Legacy model: The manufacturer lists Ni2020HD24 as obsolete. The manufacturer lists Ni2020QE29 as the replacement; contact us to confirm availability. Confirm device compatibility before changing models.
Configuration quote: Contact us to confirm availability, configuration and pricing for this item.
Specifications
| Voltage | 10.8 V |
|---|---|
| Capacity | 7.2 Ah |
| Current | 6.0 A |
| Power | 45 W |
| Dimensions L × W × H (in) | 5.9" X 3.5" X 0.8" |
| Dimensions L × W × H (mm) | 149.1mm X 89mm X 20.3mm |
| Energy (Wh) | 78 |
| Shape | Rectangular |
| Chemistry / Cell Array | 9 Li-ion 18650 cells / 3S3P array |
| Equivalent Lithium Content | ≤6.9g |

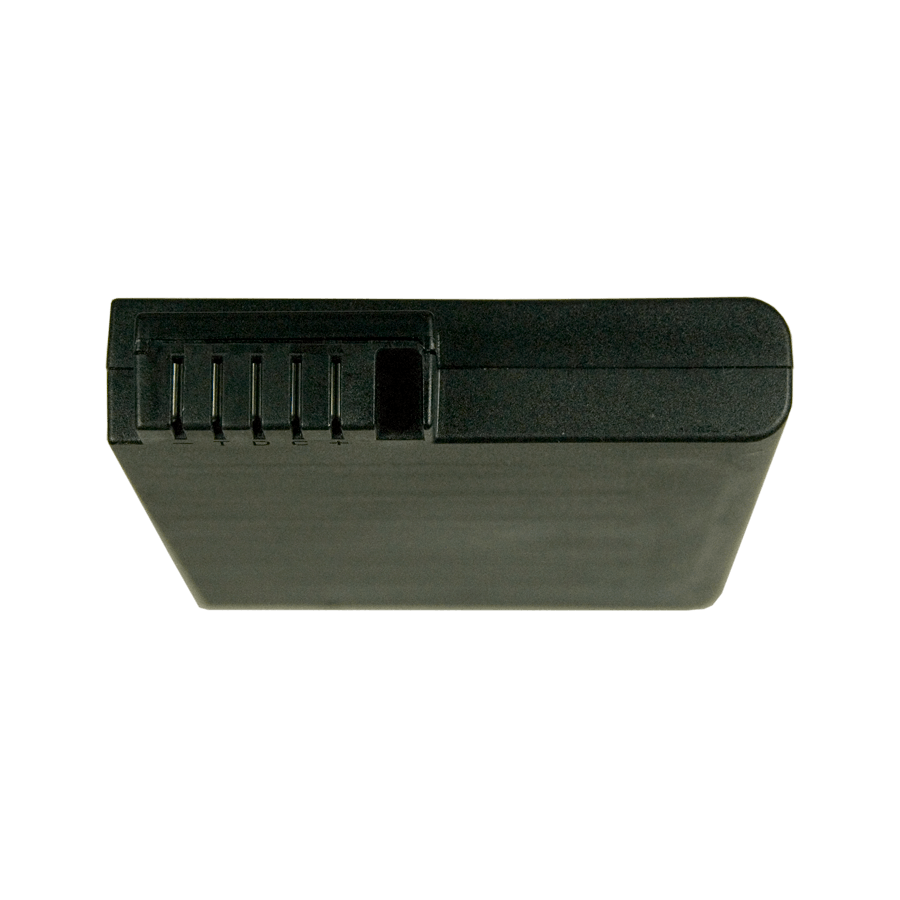

| Mating Connector | 5-Pin Standard Connector |
| Cavity Size | 21mm x 90 mm cross section |
Data sheets and manufacturer documents
Help selecting and ordering
Send us your existing part number, equipment model, required quantity and delivery date. For batteries, include voltage, connector and enclosure dimensions. For chargers and power accessories, include the battery model, input supply and required output or mains-cord arrangement. Product-family similarity alone does not confirm interchangeability.
