Inspired Energy

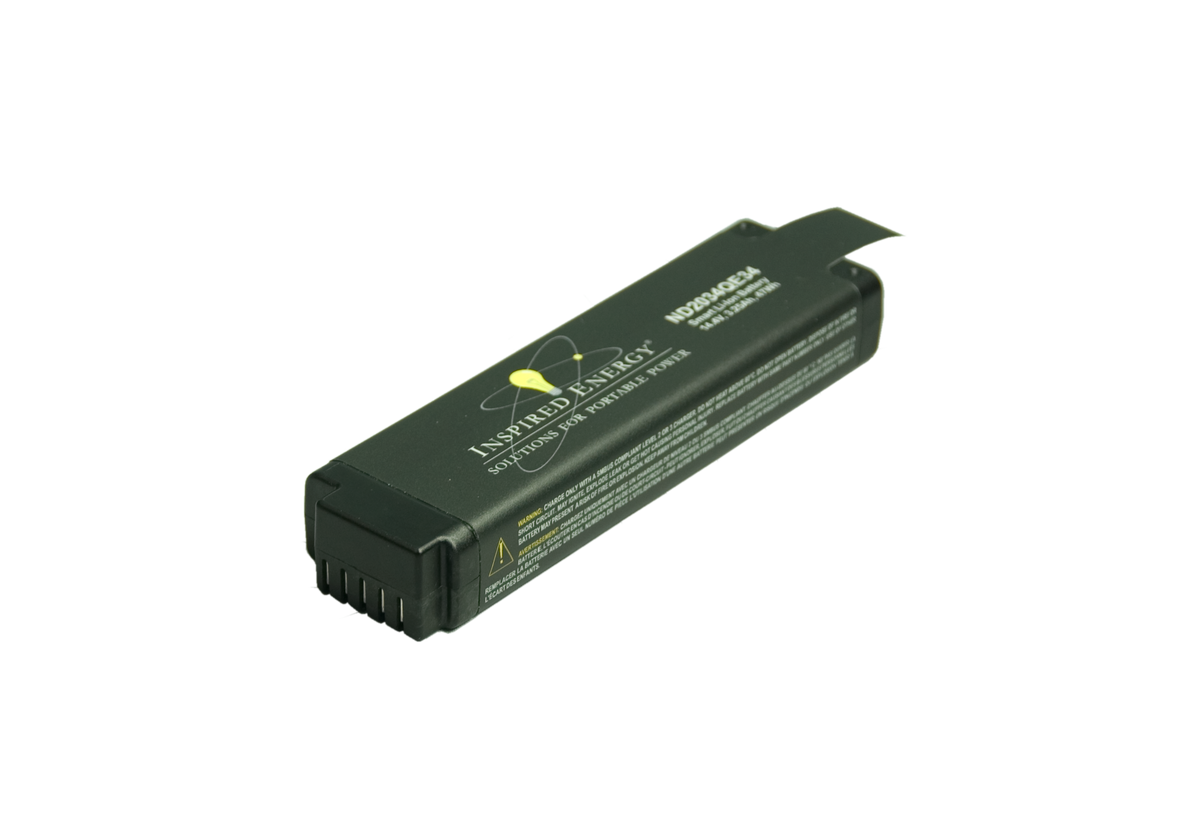

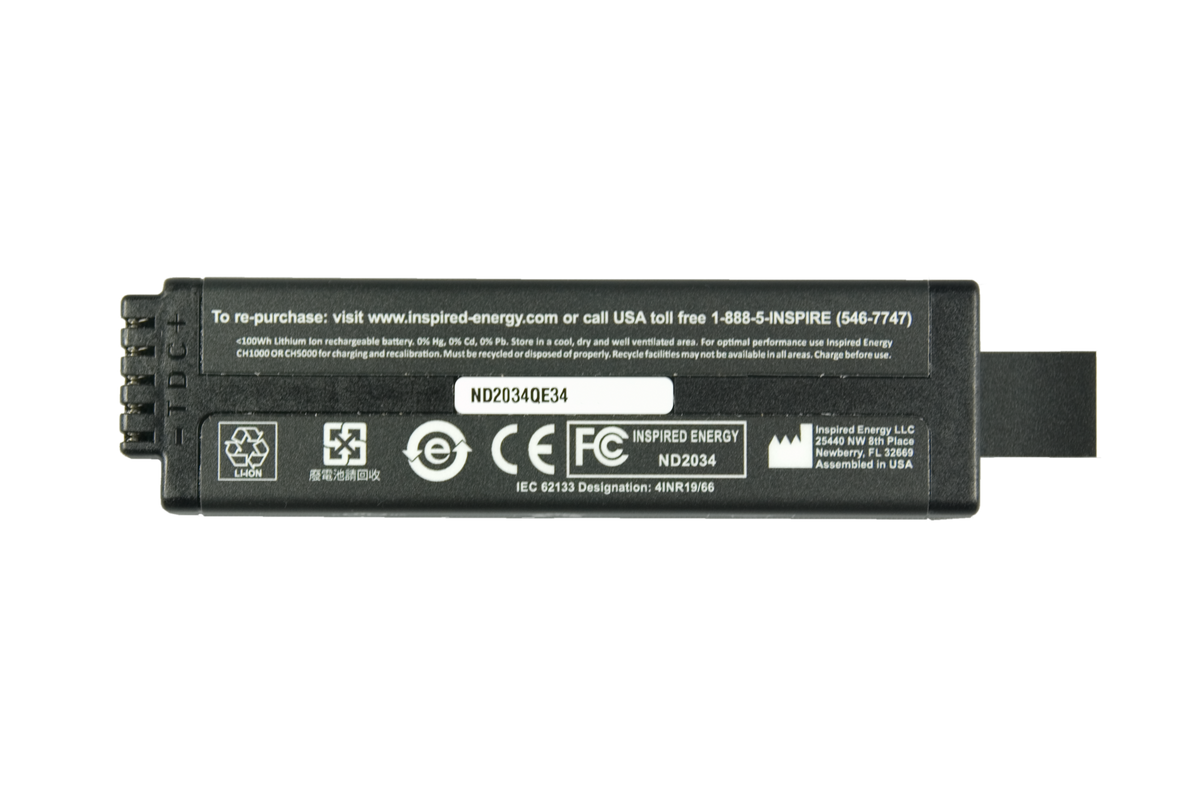

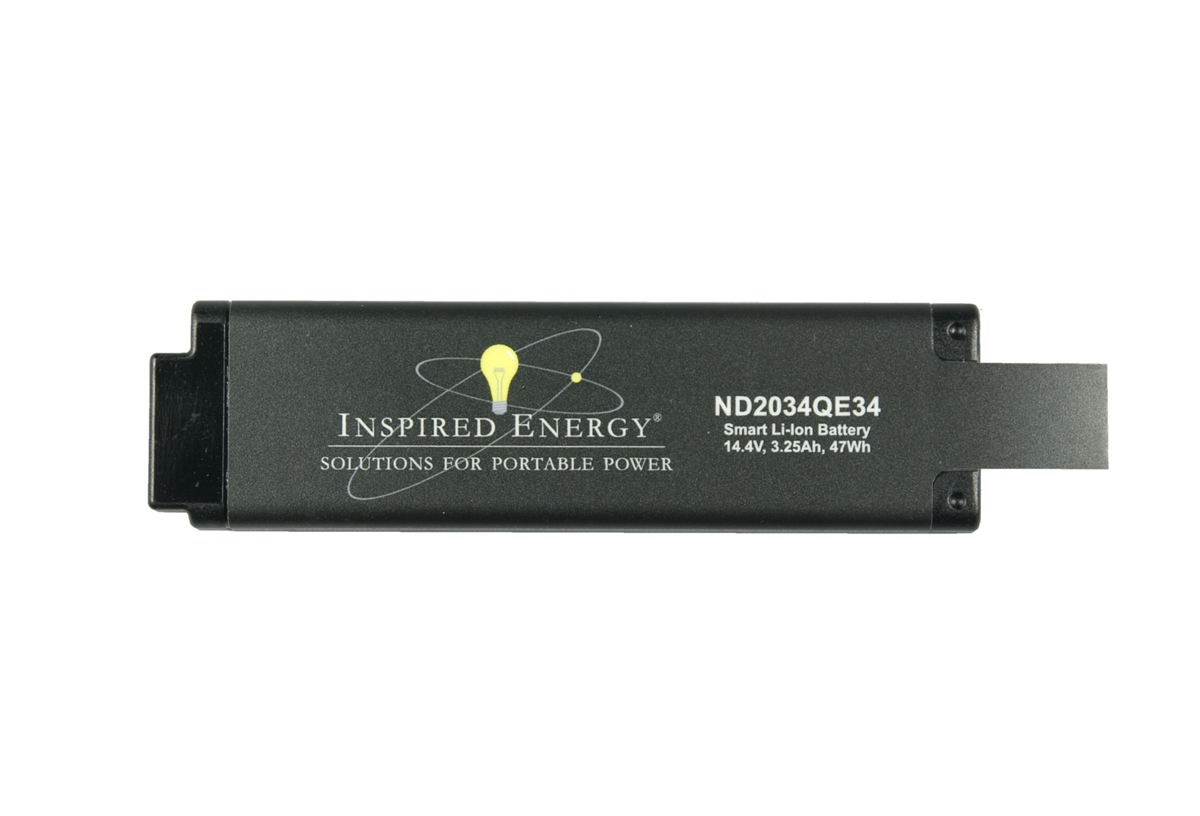

Inspired Energy ND2034QE34 Battery — 14.4V, 3.4Ah
Part number: ND2034QE34
$123.24
Need selection help, a volume quote or a confirmed delivery date?
Browse the Inspired Energy finderThe Inspired Energy ND2034QE34 is a 14.4 V rechargeable lithium-ion battery pack rated 3.4 Ah, with 49 Wh of stored energy. Match its AMP P/N 5787422-1 or 5787446-1 connection and physical dimensions to your device before ordering.
Specifications
| Dimensions L × W × H (in) | 6.0" X 1.7" X 0.9" |
|---|---|
| Dimensions L × W × H (mm) | 153mm X 42mm X 23mm |
| Energy (Wh) | 49 |
| Shape | Rectangular |
| Chemistry / Cell Array | 4 Li-ion 18650 cells / 4S1P array |
| Equivalent Lithium Content | ≤4g |
| Mating Connector | AMP P/N 5787422-1 or 5787446-1 |
| Cavity Size | 24mm x 43mm cross-section |
| Fuel Gauge Display | Always on 5-Bar LCD |
| Voltage | 14.4 V |
| Capacity | 3.4 Ah |
| Current | 4.0 A |
| Power | 40 W |
| ND2034HD29 , ND2034HD34 Price Qty 1-11 | $123.24 |
Manufacturer cross references
Listed replacement references: ND2034HD29 , ND2034HD34. Confirm connector, dimensions, firmware and device requirements before substituting a pack.
Compatible accessories and related components
Manufacturer-listed connections are shown below. Check each item’s specification and selection notes for the required configuration.
Data sheets and manufacturer documents
Help selecting and ordering
Send us your existing part number, equipment model, required quantity and delivery date. For batteries, include voltage, connector and enclosure dimensions. For chargers and power accessories, include the battery model, input supply and required output or mains-cord arrangement. Product-family similarity alone does not confirm interchangeability.
