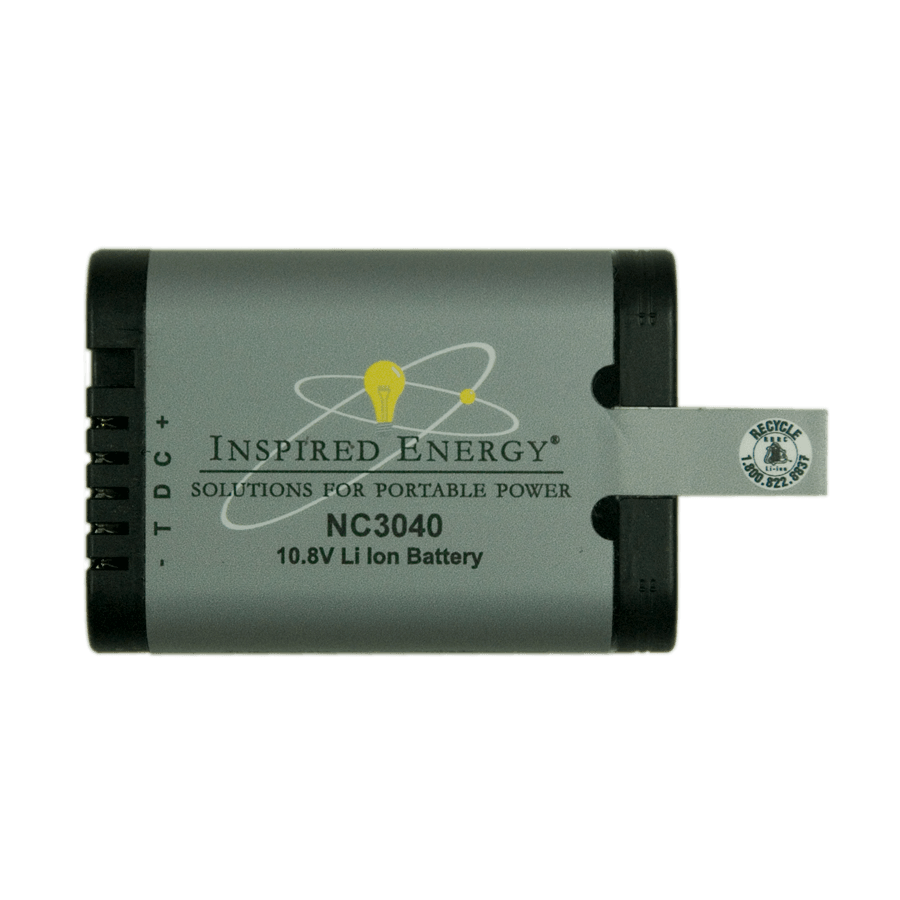

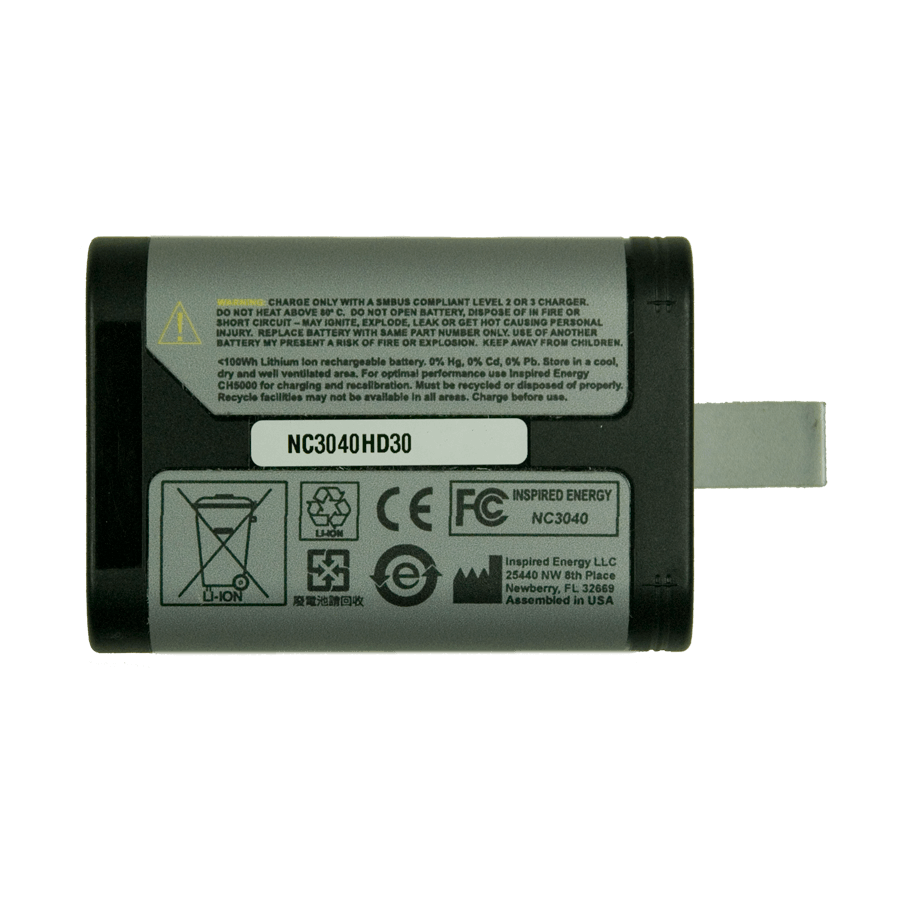

Inspired Energy NC3040HD30 Legacy Battery — Replacement Guide
Part number: NC3040HD30
Request a configuration quote
We’ll confirm the model, availability and price for your application.
Request a quote Browse the Inspired Energy finderThe Inspired Energy NC3040HD30 is a 10.8 V rechargeable lithium-ion battery pack rated 3.0 Ah, with 32 Wh of stored energy. Match its AMP 5787422-1 or 5787446-1 connection and physical dimensions to your device before ordering.
Specification note: The manufacturer's web listing contains conflicting cell-array information. Check the current data sheet and confirm the required configuration before ordering.
Legacy model: The manufacturer also lists NC3040HD30 on its obsolete-products page. Confirm availability and review NC3040QE29 as the listed replacement before ordering.
Specifications
| Voltage | 10.8 V |
|---|---|
| Capacity | 3.0 Ah |
| Current | 8 A |
| Power | 60 W |
| Energy (Wh) | 32 |
| Dimensions L × W × H (mm) | 85.1 x 59.02 x 22.4 mm |
| Mating Connector | AMP 5787422-1 or 5787446-1 |
| Fuel Gauge Display | Always on 5-Bar LCD |
Compatible chargers
Manufacturer-listed connections are shown below. Check each item’s specification and selection notes for the required configuration.
Compatible accessories and related components
Manufacturer-listed connections are shown below. Check each item’s specification and selection notes for the required configuration.
Data sheets and manufacturer documents
Help selecting and ordering
Send us your existing part number, equipment model, required quantity and delivery date. For batteries, include voltage, connector and enclosure dimensions. For chargers and power accessories, include the battery model, input supply and required output or mains-cord arrangement. Product-family similarity alone does not confirm interchangeability.
