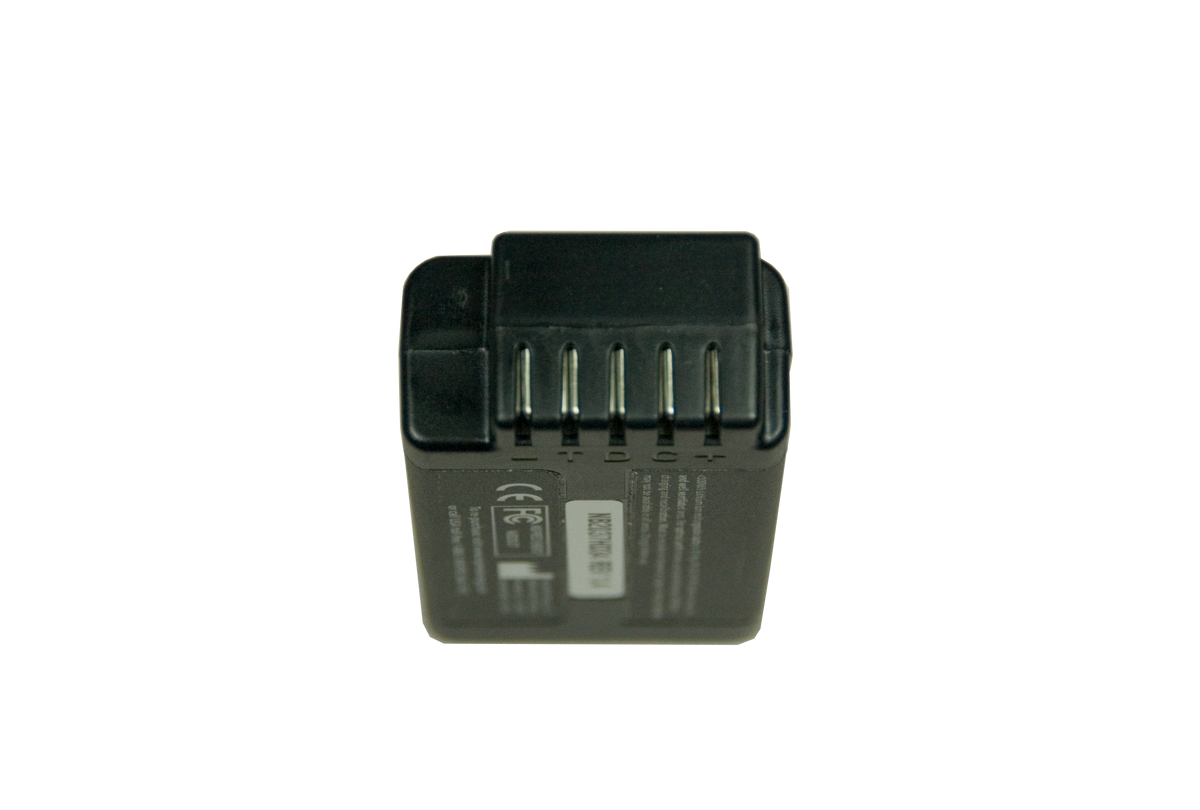

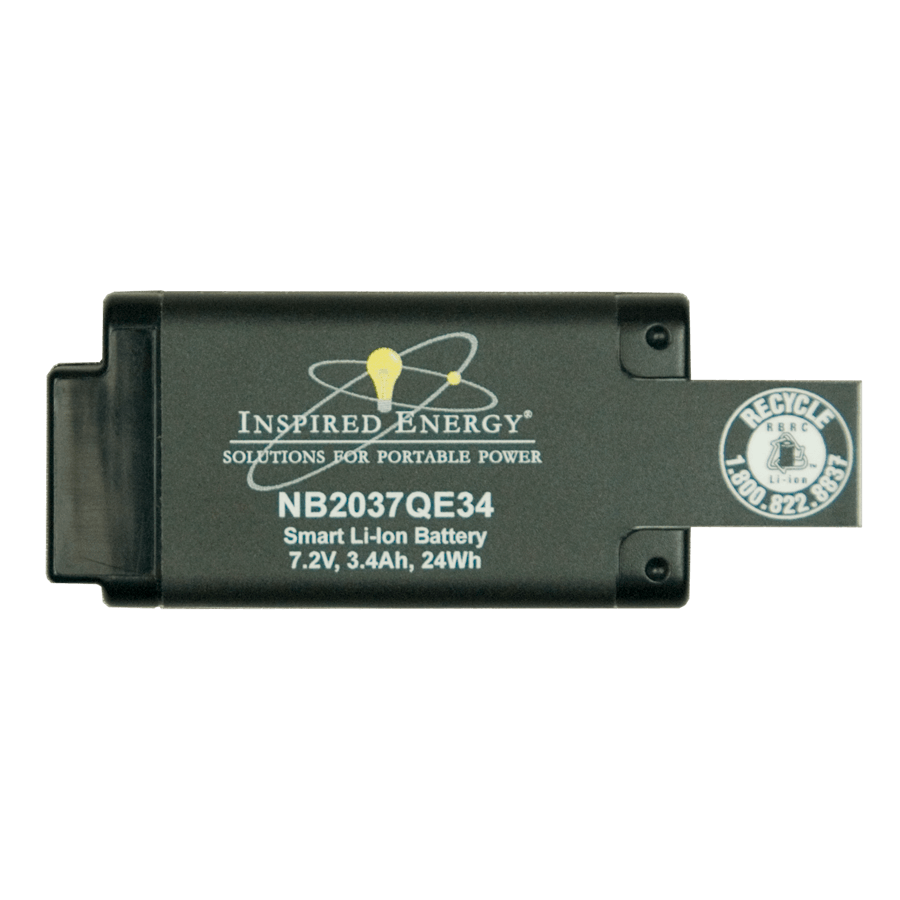

Inspired Energy NB2037QE34 Battery — 7.2V, 3.4Ah
Inspired Energy NB2037QE34 Battery — 7.2V, 3.4Ah

Inspired Energy

Inspired Energy NB2037QE34 Battery — 7.2V, 3.4Ah

Part number: NB2037QE34

$106.52

Need selection help, a volume quote or a confirmed delivery date?

Browse the Inspired Energy finder

The Inspired Energy NB2037QE34 is a 7.2 V rechargeable lithium-ion battery pack rated 3.4 Ah, with 24 Wh of stored energy. Match its AMP P/N 5787422-1 or 5787446-1 connection and physical dimensions to your device before ordering.

Specifications

Dimensions L × W × H (in) 3.36" X 1.65" X 0.88"
Dimensions L × W × H (mm) 85mm X 42mm X 23mm
Energy (Wh) 24
Shape Rectangular
Chemistry / Cell Array 2 Li-ion 18650 cells / 2S1P array
Equivalent Lithium Content ≤2g
Mating Connector AMP P/N 5787422-1 or 5787446-1
Cavity Size 24mm x 43mm cross-section
Fuel Gauge Display Always on 5-Bar LCD
Input Voltage 10-24V
Voltage 7.2 V
Capacity 3.4 Ah
Current 4.0 A
Power 20 W
NB2037HD29 Price Qty 1-11 $106.52
Additional manufacturer replacement references

The manufacturer’s obsolete-model table lists NB2037HD29, NB2037HD31 as references for this replacement. Confirm the full device configuration before substituting.

Request product information

Manufacturer cross references

Listed replacement references: NB2037HD29. Confirm connector, dimensions, firmware and device requirements before substituting a pack.

Compatible chargers

Manufacturer-listed connections are shown below. Check each item’s specification and selection notes for the required configuration.

Compatible accessories and related components

Manufacturer-listed connections are shown below. Check each item’s specification and selection notes for the required configuration.

Data sheets and manufacturer documents
Help selecting and ordering

Send us your existing part number, equipment model, required quantity and delivery date. For batteries, include voltage, connector and enclosure dimensions. For chargers and power accessories, include the battery model, input supply and required output or mains-cord arrangement. Product-family similarity alone does not confirm interchangeability.
