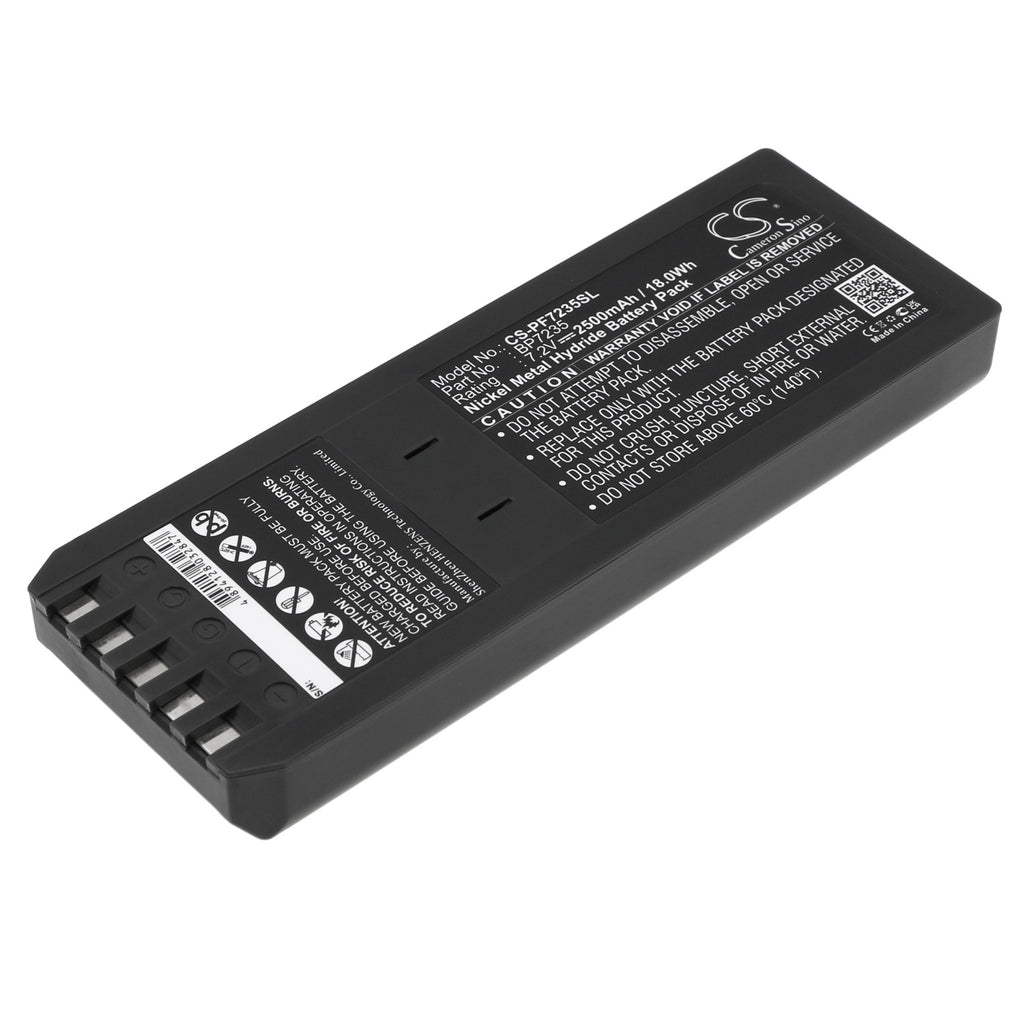

This 7.2V 2500mAh NiMH battery is a compatible replacement for Fluke DSP4100. Compare the number printed on your current battery, its voltage, chemistry, dimensions and connector before ordering.
Included: One replacement battery pack.
Battery specifications
| Voltage | 7.2V |
| Capacity | 2500mAh |
| Chemistry | NiMH |
| Energy | 18Wh |
| Dimensions | 153.20 x 54.90 x 20.90mm |
| Battery weight | 265g /9.35 oz |
Replacing your Fluke DSP4100 battery
Compare the connector shape, wire arrangement and polarity with your original battery. Check all listed specifications; a similar model name or matching voltage alone does not confirm a fit.
Compatible equipment models
Fluke DSP-100, DSP4100, DSP-2000, DSP-4000, DSP-4000PL, Impulse 6000D, 700 Calibrator, 740 Calibrator, 744 Calibrator, Impulse 7000DP, Impulse 7000DP, DSP4300 cable tester
Replacement battery numbers
Fluke 668225, BP7235, 116-066
