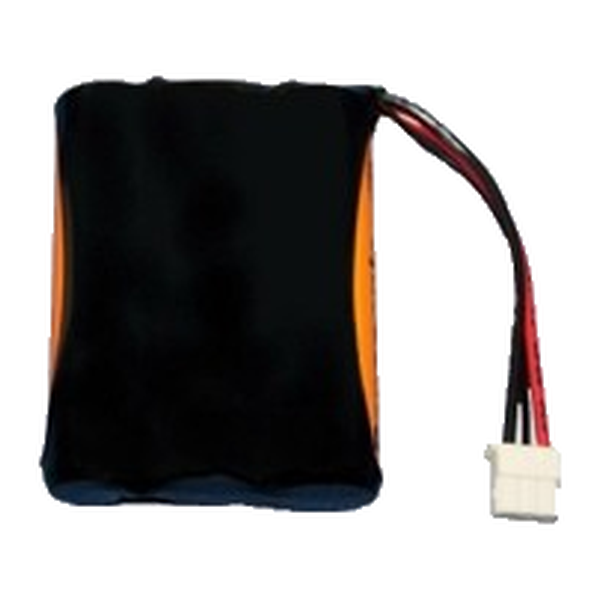

The ENERGY+ H150AA-3IBF is a 3.6V NiMH battery with a rated capacity of 1600 mAh. Its manufacturer-listed application is IBM System 2763 2778 2782 5703 5709 5729.
Specifications
| Part number | H150AA-3IBF |
|---|---|
| Voltage | 3.6 |
| Capacity | 1600 mAh |
| Chemistry | NiMH |
| Dimensions | 2.08" x 1.69" x 0.58" |
| Connection | Wire Leads 3 Pin Connector |
| Color | Black Heat Shrink |
| Manufacturer warranty | 12 Months |
| Cell count | 3 |
Replacement part numbers & cross-references
Manufacturer-listed replacement references:
- 22R2717
- 3HR-AAC
- 44L0313
Compatible equipment
Listed equipment: IBM System FC Series 2763, 2778, 2782, 5703, 5709, 5729 disk controllers.
Assembled in the USA.
Confirm your replacement
Match the complete battery part number, voltage, chemistry, dimensions, connector and polarity with your original assembly. Similar part numbers can identify different batteries.
Rocket Distributing is an authorized ENERGY+ distributor. Contact us for help matching your battery or requesting a quantity order.
