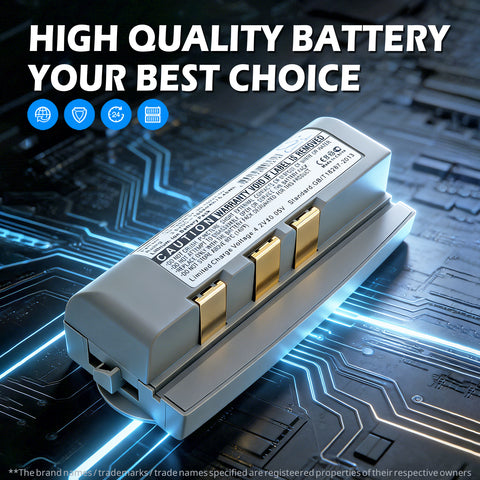

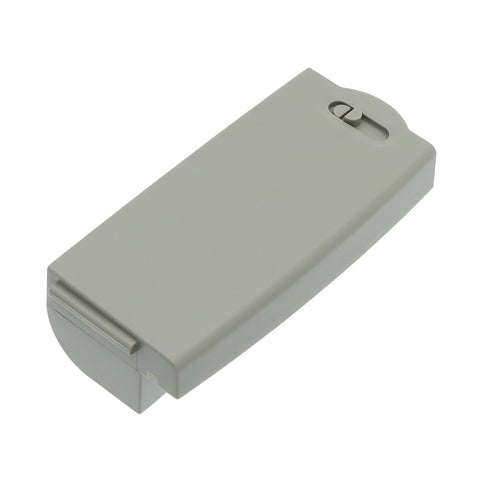

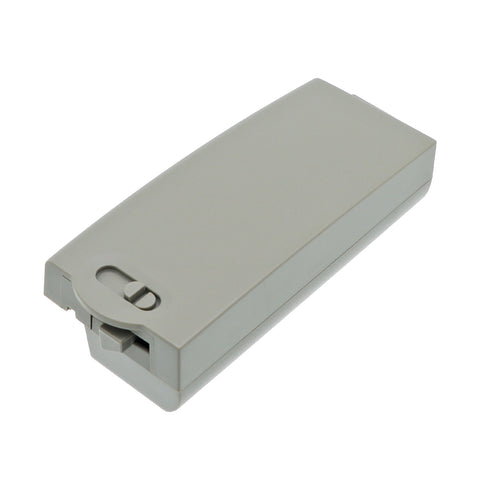

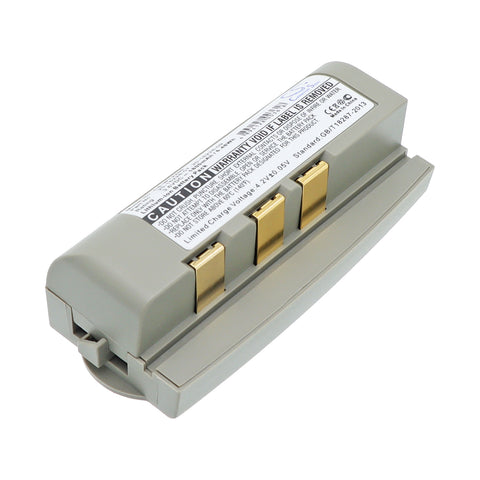

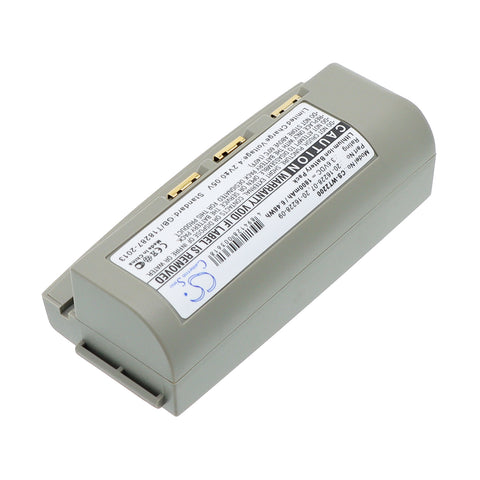

This 3.6 V 1800 mAh Li-ion battery is a compatible replacement for Chameleon 20-16228-07. Compare the number printed on your current battery, its voltage, chemistry, dimensions and connector before ordering.
Special Order - Non-Cancellable - Non-Returnable - Additional Lead Time May Be Required On This Item.
- Included: One replacement battery pack.
- Replaces battery number: Chameleon 20-16228-07
Current Estimated Delivery Date: 1-2 Weeks
Battery specifications
| Voltage | 3.6 V |
|---|---|
| Capacity | 1800 mAh |
| Chemistry | Li-ion |
| Energy | 6.48 Wh |
| Dimensions | 78.70 x 33.90 x 23.29mm |
| Battery weight | 61.6 g /2.17 oz |
Replacing your Chameleon 20-16228-07 battery
Compare the connector shape, wire arrangement and polarity with your original battery. Check all listed specifications; a similar model name or matching voltage alone does not confirm a fit.
Compatible equipment models
- Symbol: SY10L1-A, SY10L1-D, SY10L1-G, WSS1000, WSS1010, WSS1019, WSS1040, WSS1050, WSS1060, WSS1069, WT2280, WWC1040, WWC1049
- Chameleon: RF WT2200, RF WT2280
Replacement battery numbers
- Symbol: 20-16228-07, 20-16228-09
- Chameleon: 20-16228-07, 20-16228-09
Need help matching your battery?
Contact Rocket Distributing with your equipment model and a photo of the battery label and connector.
