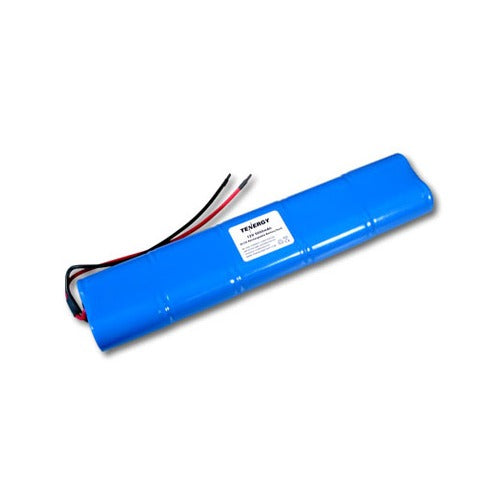

Shop the Tenergy NiCd 12V 5000mAh Rechargeable Battery Pack (10S1P, 60Wh, 4A Rate). Review the manufacturer description and specifications below to confirm voltage, capacity, dimensions, connector and compatibility for your application.
Product details and specifications
Product Highlights
- ChemistryNiCd
- Cell SizeD
- Nominal Voltage (V)12
- Capacity (mAh)5000
- Max Continuous Discharge Current4A
- Weight3lbs
- Dimension305 x 66.7 x 28.6mm (LxWxT)
- Connector Bare Leads
Product Highlights
- ChemistryNiCd
- Cell SizeD
- Nominal Voltage (V)12
- Capacity (mAh)5000
- Max Continuous Discharge Current4A
- Weight3lbs
- Dimension305 x 66.7 x 28.6mm (LxWxT)
- Connector Bare Leads
output
- TypePack
- ChemistryNiCd
- Cell SizeD
- Nominal Voltage (V)12
- Capacity (mAh)5000
- Max Continuous Discharge Current4A
-
Battery Charging Current
- Standard1A
- Rapid2.5A
- Weight3lbs
- Dimension305 x 66.7 x 28.6mm (LxWxT)
- Connector Bare Leads
-
Recommended Storage Temps*
- Less Than 30 Days-20 to 50°C
- Less Than 90 Days-20 to 40°C
- Less Than 1 Year-20 to 30°C
- Humidity45-85%
Supported Chargers:
| Item Number | Model/Description | Compatible Packs | Charging Current |
| 01025 | Tenergy Smart NiMH/NiCD Pack Charger for 6V-12V | 6V-12V (5-10S) | 1A or 2A |
| 01005 | Tenergy Smart NiMH/NiCD Pack Charger for 7.2V-12V | 7.2V-12V (6-10S) | 0.9A or 1.8A |
| 01004 | Tenergy Smart NiMH/NiCD Pack Charger for 12V-16.8V | 12V-16.8V (10-14S) | 0.9A or 1.8A |
| 90263 | Tenergy TB6B Multifunction Balance Charger + Power Supply | 1.2V - 18V (1-15S) | 0.1A to 5A |
*Disclaimer:
NiMH/NiCd battery voltage can drop significantly during storage due to self-discharge. We strongly recommend checking the voltage of your stored batteries, or cycle them, at least once every 6 months
