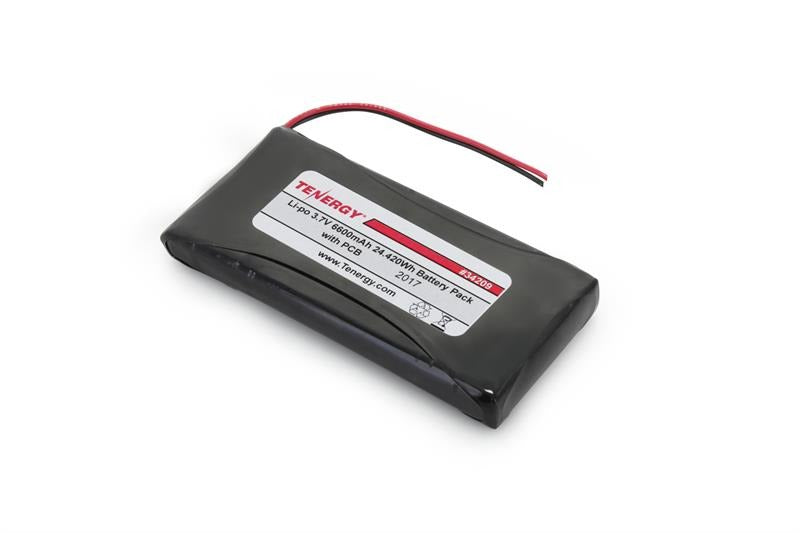

Tenergy LiPo 3.7V 6000mAh Rechargeable Battery Pack (1S2P, 22.2Wh, 6A, Bare Leads) (34209-00)

• Type: Pack
• Chemistry: Li-Polymer
• Weight: 125g, 6oz
• Dimensions: 105 x 52 x 13mm (LxWxT)
• Connector: Bare Leads

Specifications:

• Type: Pack
• Chemistry: Li-Polymer
• Nominal Voltage (V): 3.7
• Capacity (mAh): 6000
• Max Continuous Discharge Current: 6.0A
• Battery Charging Current:
• Standard: 0.6A
• Rapid: 1.5A
• Weight: 125g, 6oz
• Dimensions: 105 x 52 x 13mm (LxWxT)
• Connector: Bare Leads
• Avg. Temperature Ranges for:
• Charging: 0~40°C
• Discharging: 20~60°C
• Storage: 0~40°C
• PCB/Pack Protection(for single cell voltages):
• Over Charge Cutoff Voltage: 4.35 ± 0.025V
• Over Discharge Cutoff: 2.40 ± 0.08V
• Over Current Cutoff (Ah): 15A

Supported Chargers:

• Item Number; Model/Description; Compatible Packs; Charging Current
• 01211; Tenergy TLP-2000 Li-Ion Battery Pack Charger; 3.7V - 14.8V (1-4S); 0.5A
• 01281; Tenergy TLP-4000 Li-Ion Battery Pack Charger; 3.7V - 14.8V (1-4S); 1.0A

CAUTION:

• When working with Li-Polymer cells, they are very sensitive to charging characteristics and may explode if mis-handled.
• Users should have enough knowledge on Li-Polymer rechargeable batteries in charging, and discharging before use.
• We are not responsible for any damage caused by misuse or mishandling of these Li-Polymer battery packs.
• It is strongly suggest that you use our Smart Li-Ion battery chargers to recharge the battery pack
• Never use conventional DC adapter to charge the battery module - we are NOT responsible for any damage that is caused by improper charging.
• Do not make parallel connection with more than three modules to avoid uneven charge.
