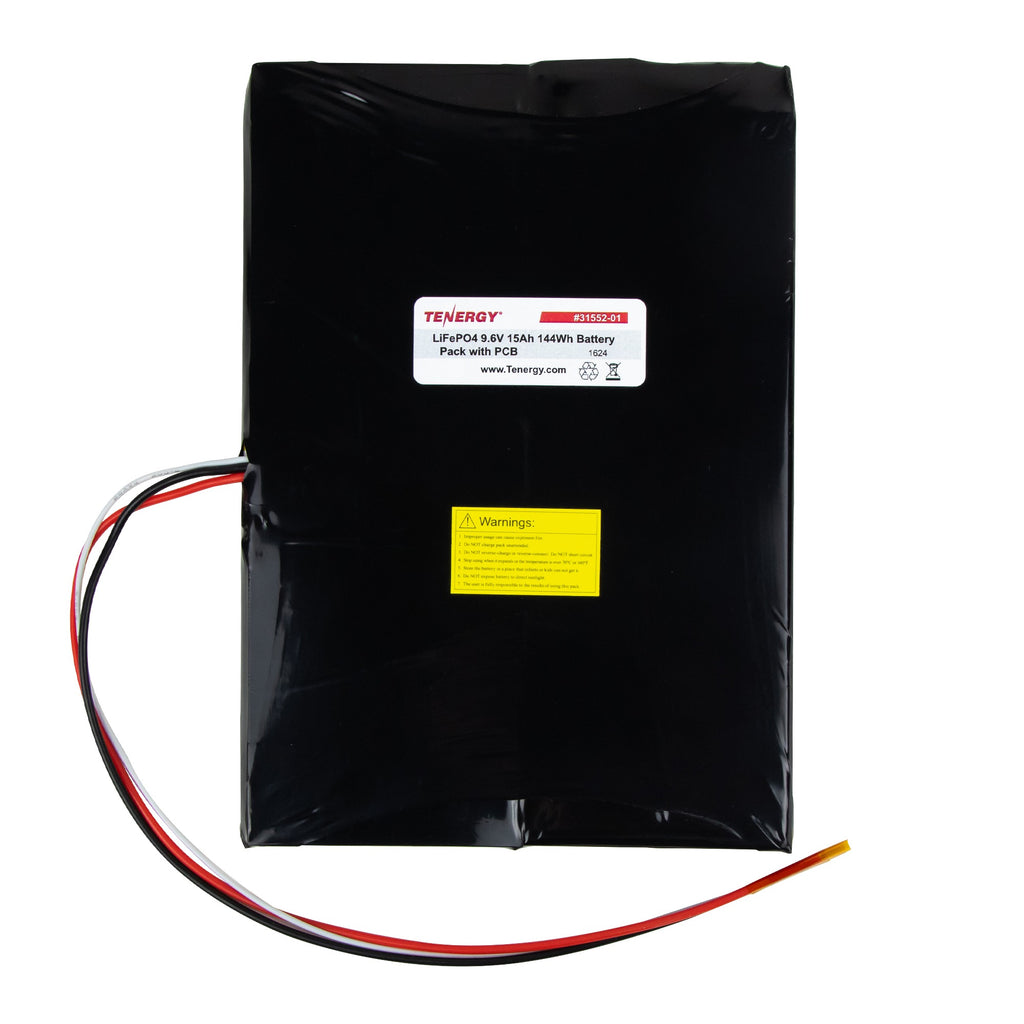

Shop the Tenergy LiFePO4 9.6V 15,000mAh Rechargeable Battery Pack w/ PCB, (3S1P, 144Wh, 15A). Review the manufacturer description and specifications below to confirm voltage, capacity, dimensions, connector and compatibility for your application.
Product details and specifications
Product Highlights
- Nominal Voltage: 9.6V
- Capacity: 15Ah
- Max 15-amp working/ 25-amp bursting
- Dimension: 235 x 165 x 20 mm (LxWxH)
- Wire: 18AWG bare leads
- Life cycle: 1000
- Weight: 1340g
Product Highlights
- Nominal Voltage: 9.6V
- Capacity: 15Ah
- Max 15-amp working/ 25-amp bursting
- Dimension: 235 x 165 x 20 mm (LxWxH)
- Wire: 18AWG bare leads
- Life cycle: 1000
- Weight: 1340g
Technical Data
- TypePack
- Chemistry: LiFePO4
- Nominal Voltage (V): 9.6
- Capacity (mAh): 15000
- Max Continuous Discharge Current: 15A
- Max Peak Discharge Current: 25A
-
Battery Charging Current
- Standard: 3A
- Rapid:15A
- Weight1340g
- Dimensions235 x 165 x 20 mm (LxWxT)
- ConnectorBare Leads
-
Avg. Temperature Ranges for
- Charging: 32° F~113° F / (0~45°C)
- Discharging: -4°F ~144°F / (-20~60°C)
- Storage: -4°F~68°F / (-20~20°C)
-
PCB/Pack Protection
- Over Charge Cutoff Voltage: 3.90V±0.025V
- Over Discharge Cutoff: 2.3±0.08V
- Over Current Cutoff (Ah): 30±5A
CAUTION:
- When working with Li-ion cells, they are very sensitive to charging characteristics and may explode if mishandled.- Users should have enough knowledge on Li-ion rechargeable batteries in charging, and discharging before use.
- We are not responsible for any damage caused by misuse or mishandling of these Li-ion battery packs.
- It is strongly suggest that you use our Smart Li-ion battery chargers to recharge the battery pack
- Never use conventional DC adapter to charge the battery module - we are NOT responsible for any damage that is caused by improper charging.
- Do not make parallel connection with more than three modules to avoid uneven charge.
