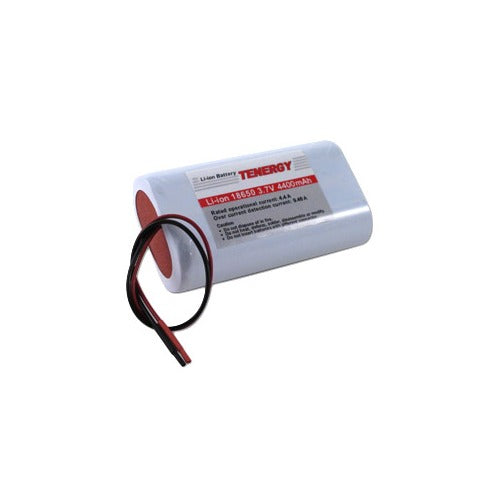

Shop the Tenergy Li-Ion 3.7V 4400mAh Rechargeable Battery w/ PCB (1S2P, 16.28Wh, 4A Rate). Review the manufacturer description and specifications below to confirm voltage, capacity, dimensions, connector and compatibility for your application.
Product details and specifications
Product Highlights
- ChemistryLi-ion
- Nominal Voltage (V)3.7
- Capacity (mAh)4400
- Max Continuous Discharge Current4A
- Weight98g
- Dimension66.8 x 37.3 x 19.3mm (LxWxT)
- ConnectorBare Leads
- High quality 3.7V Li-Ion Rechargeable Battery Pack
- Made of 2 x 2200mAh cylindrical 18650 cells with PCB for polyswitch for full protection
- LIght weight and higher energy density than any rechargeable battery
- Built-in IC chip will prevent battery pack by connecting two or three PCB ready battery module in parallel
- Perfect for building 3.7V battery packs for bike lighting, RC toys (cars and airplanes), robots, cameras, DVD external battery and more!
Product Highlights
- ChemistryLi-ion
- Nominal Voltage (V)3.7
- Capacity (mAh)4400
- Max Continuous Discharge Current4A
- Weight98g
- Dimension66.8 x 37.3 x 19.3mm (LxWxT)
- ConnectorBare Leads
- High quality 3.7V Li-Ion Rechargeable Battery Pack
- Made of 2 x 2200mAh cylindrical 18650 cells with PCB for polyswitch for full protection
- LIght weight and higher energy density than any rechargeable battery
- Built-in IC chip will prevent battery pack by connecting two or three PCB ready battery module in parallel
- Perfect for building 3.7V battery packs for bike lighting, RC toys (cars and airplanes), robots, cameras, DVD external battery and more!
Features
- High quality 3.7V Li-Ion Rechargeable Battery Pack
- Made of 2 x 2200mAh cylindrical 18650 cells with PCB for polyswitch for full protection
- LIght weight and higher energy density than any rechargeable battery
- Built-in IC chip will prevent battery pack by connecting two or three PCB ready battery module in parallel
- Perfect for building 3.7V battery packs for bike lighting, RC toys (cars and airplanes), robots, cameras, DVD external battery and more!
output
- TypePack
- ChemistryLi-ion
- Nominal Voltage (V)3.7
- Capacity (mAh)4400
- Max Continuous Discharge Current4A
-
Battery Charging Current
- Standard0.8A
- Rapid2A
- Weight98g
- Dimension66.8 x 37.3 x 19.3mm (LxWxT)
- ConnectorBare Leads
-
Avg. Temperature Ranges for:
- Charging32° F~113° F / (0~45°C)
- Discharging14°F ~140°F / (-10~60°C)
- Storage32°F ~86°F / (0~30°C)
-
PCB/Pack Protection:
- Overcharge Protection:4.35 ± 0.025V
- Over-discharge Protection:2.40 ± 0.08V
- Over Current Cutoff (A):15 ± 3A
Supported Chargers:
| Item Number | Model/Description | Compatible Packs | Charging Current |
| 01348 | Tenergy Li-Ion 3.7V 1.5A Battery Pack Charger | 3.7V (1S) | 1.5A |
| 01211 | Tenergy TLP-2000 Li-Ion Battery Pack Charger | 3.7V - 14.8V (1-4S) | 0.5A |
| 01281 | Tenergy TLP-4000 Li-Ion Battery Pack Charger | 3.7V - 14.8V (1-4S) | 1.0A |
CAUTION:
- when working with Li-ion cells, they are very sensitive to charging characteristics and may explode if mis-handled.
- users should have enough knowledge on Li-Ion rechargeable batteries in charging, and discharging before use.
- we are not responsible for any damage caused by misuse or mishandling of these Li-Ion battery packs.
- it is strongly suggest that you use our Smart Li-Ion battery chargers to recharge the battery pack
- never use conventional DC adapter to charge the battery module - we are NOT responsible for any damage that is caused by improper charging.
- do not make parallel connection with more than three modules to avoid uneven charge.
- What is the nominal voltage?
- 3.7V
