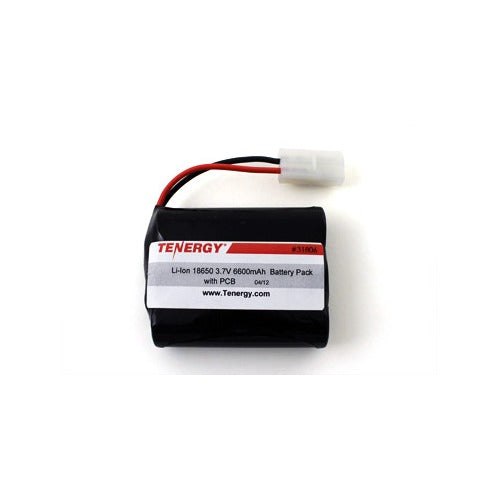

Shop the Tenergy Li-ion 3.6V 6600mAh Rechargeable Battery Pack w/ PCB (1S3P, 23.76Wh, 6A Rate, Tamiya Connector). Review the manufacturer description and specifications below to confirm voltage, capacity, dimensions, connector and compatibility for your application.
Product details and specifications
Product Highlights
- ChemistryLi-ion
- Nominal Voltage (V)3.6
- Capacity (mAh)6600
- Max Continuous Discharge Current6A
- Weight4.8oz
- Dimensions67x 54 x 18mm (LxWxT)
- ConnectorTamiya Connector
- Made of 3pcs 2200mAh (1S3P) cylindrical 18650 cells with PCB for protection
- Built-in IC chip will prevent battery pack from over charge and over discharge and prolongs battery life
- Longer storage life than NiMH battery
- Built with Standard Tamiya Connector
Product Highlights
- ChemistryLi-ion
- Nominal Voltage (V)3.6
- Capacity (mAh)6600
- Max Continuous Discharge Current6A
- Weight4.8oz
- Dimensions67x 54 x 18mm (LxWxT)
- ConnectorTamiya Connector
- Made of 3pcs 2200mAh (1S3P) cylindrical 18650 cells with PCB for protection
- Built-in IC chip will prevent battery pack from over charge and over discharge and prolongs battery life
- Longer storage life than NiMH battery
- Built with Standard Tamiya Connector
Features
- Made of 3pcs 2200mAh (1S3P) cylindrical 18650 cells with PCB for protection
- Built-in IC chip will prevent battery pack from over charge and over discharge and prolongs battery life
- Longer storage life than NiMH battery
- Built with Standard Tamiya Connector
output
- TypePack
- ChemistryLi-ion
- Nominal Voltage (V)3.6
- Capacity (mAh)6600
- Max Continuous Discharge Current6A
-
Battery Charging Current
- Standard:1.3A
- Rapid:3.3A
- Weight4.8oz
- Dimensions67x 54 x 18mm (LxWxT)
- ConnectorTamiya Connector
-
Avg. Temperature Ranges for
- Charging32° F~113° F / (0~45°C)
- Discharging14°F ~140°F / (-10~60°C)
- Storage32°F ~86°F / (0~30°C)
-
PCB/Pack Protection
- Over Charge Cutoff Voltage:>4.2V
- Over Discharge Cutoff:<3.0V
- Over Current Cutoff (Ah)15 ± 3A
Supported Chargers:
| Item Number | Model/Description | Compatible Packs | Charging Current |
| 01348 | Tenergy Li-ion 3.7V 1.5A Battery Pack Charger | 3.7V (1S) | 1.5A |
| 01211 | Tenergy TLP-2000 Li-ion Battery Pack Charger | 3.7V - 14.8V (1-4S) | 0.5A |
| 01281 | Tenergy TLP-4000 Li-ion Battery Pack Charger | 3.7V - 14.8V (1-4S) | 1.0A |
CAUTION:
- when working with Li-ion cells, they are very sensitive to charging characteristics and may explode if mis-handled.- users should have enough knowledge on Li-ion rechargeable batteries in charging, and discharging before use.
- we are not responsible for any damage caused by misuse or mishandling of these Li-ion battery packs.
- it is strongly suggested that you use our Smart Li-ion battery chargers to recharge the battery pack
- never use conventional DC adapter to charge the battery module - we are NOT responsible for any damage that is caused by improper charging.
- do not make parallel connection with more than three modules to avoid uneven charge.
