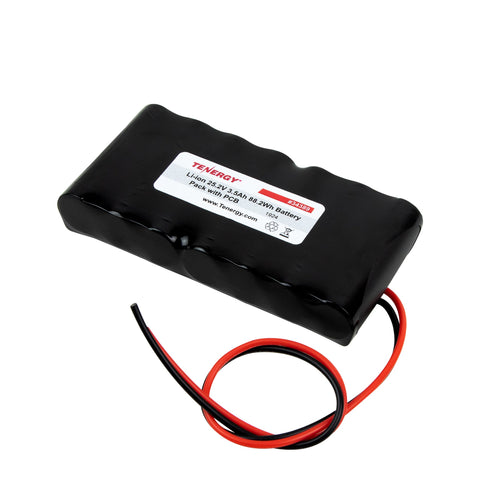

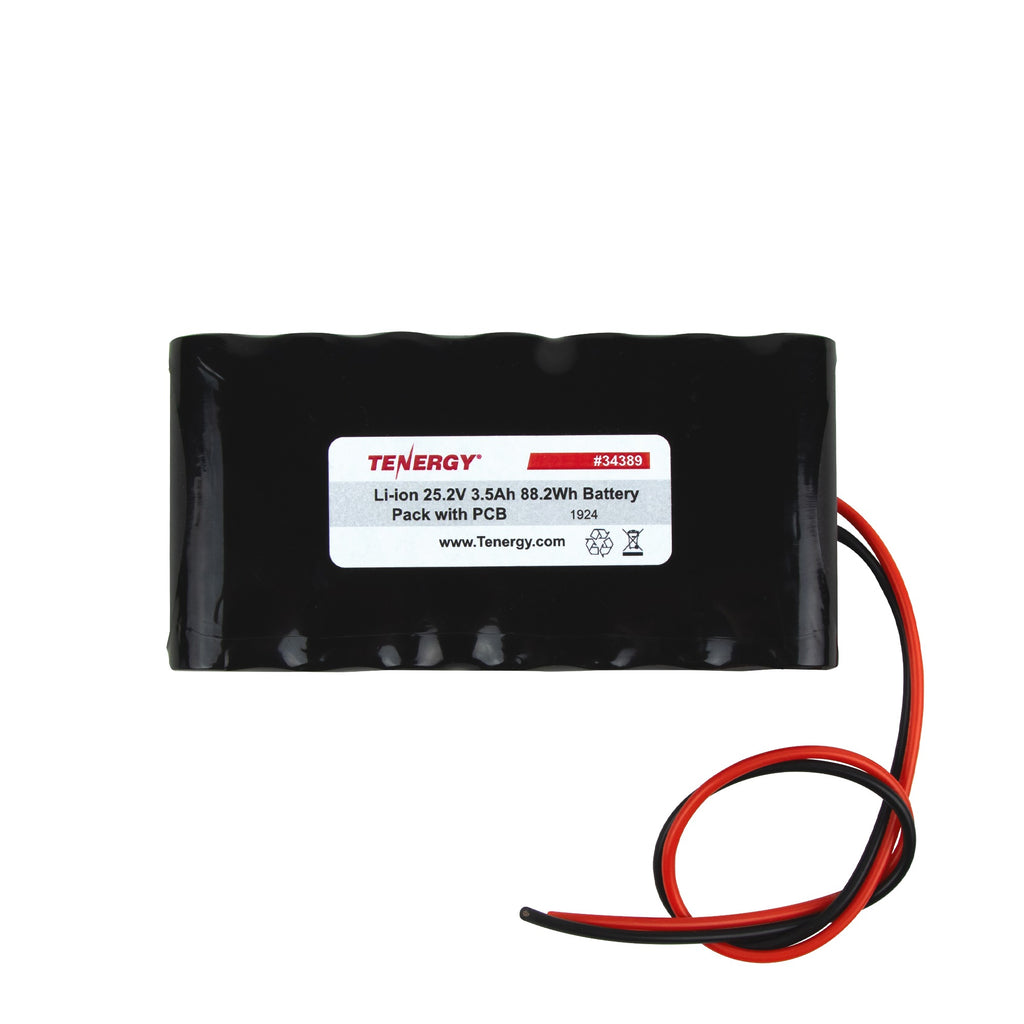

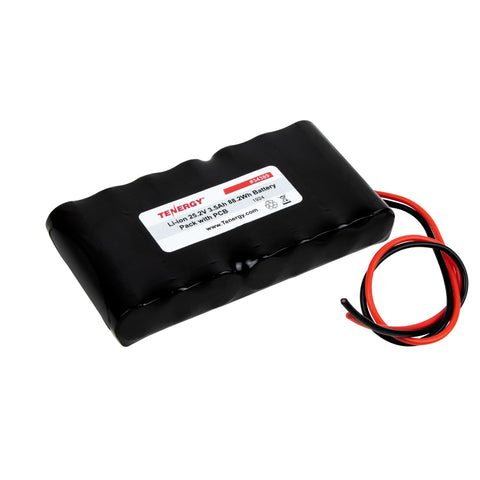

Shop the Tenergy Li-ion 25.4V 3,500mAh Rechargeable Battery Pack w/ PCB, (7S1P, 88.9Wh, 6A) - Built with LG MJ1 18650 Cells. Review the manufacturer description and specifications below to confirm voltage, capacity, dimensions, connector and compatibility for your application.
Product details and specifications
Product Highlights
- ChemistryLi-ion
- Nominal Voltage (V)25.4
- Capacity (mAh)3,500
- Max Continuous Discharge Current 6A
- Weight370g
- Dimension133 x 67 x 25mm (LxWxT)
- Life Cycle400
Product Highlights
- ChemistryLi-ion
- Nominal Voltage (V)25.4
- Capacity (mAh)3,500
- Max Continuous Discharge Current 6A
- Weight370g
- Dimension133 x 67 x 25mm (LxWxT)
- Life Cycle400
output
- TypePack
- ChemistryLi-ion
- Nominal Voltage (V)25.4
- Capacity (mAh)3,500
- Max Continuous Discharge Current 6A
-
Battery Charging Current
- Standard0.7A
- Rapid1.8A
- Weight370g
- Dimension133 x 67 x 25mm (LxWxT)
- ConnectorBare Leads
-
Avg. Temperature Ranges for
- Charging32° F~113° F / (0~45°C)
- Discharging14°F ~140°F / (-10~60°C)
- Storage32°F ~86°F / (0~30°C)
-
Temperature Protection
- Charge over temperature cutoff >50°C (cell temperture)
- Charge under temperature cutoff <0°C (cell temperture)
- Discharge over temperature cutoff >7°C (cell temperture)
-
PCB/Pack Protection (for single cell voltages)
- Overcharge Protection>4.25V
- Over-discharge Protection<2.7V
- Over Current Cutoff (A)17.7A
CAUTION:
- when working with Li-ion cells, they are very sensitive to charging characteristics and may explode if mis-handled.
- users should have enough knowledge on Li-ion rechargeable batteries in charging, and discharging before use.
- we are not responsible for any damage caused by misuse or mishandling of these Li-ion battery packs.
- it is strongly suggested that you use our Smart Li-ion battery chargers to recharge the battery pack
- never use conventional DC adapter to charge the battery module - we are NOT responsible for any damage that is caused by improper charging.
- do not make parallel connection with more than three modules to avoid uneven charge.
