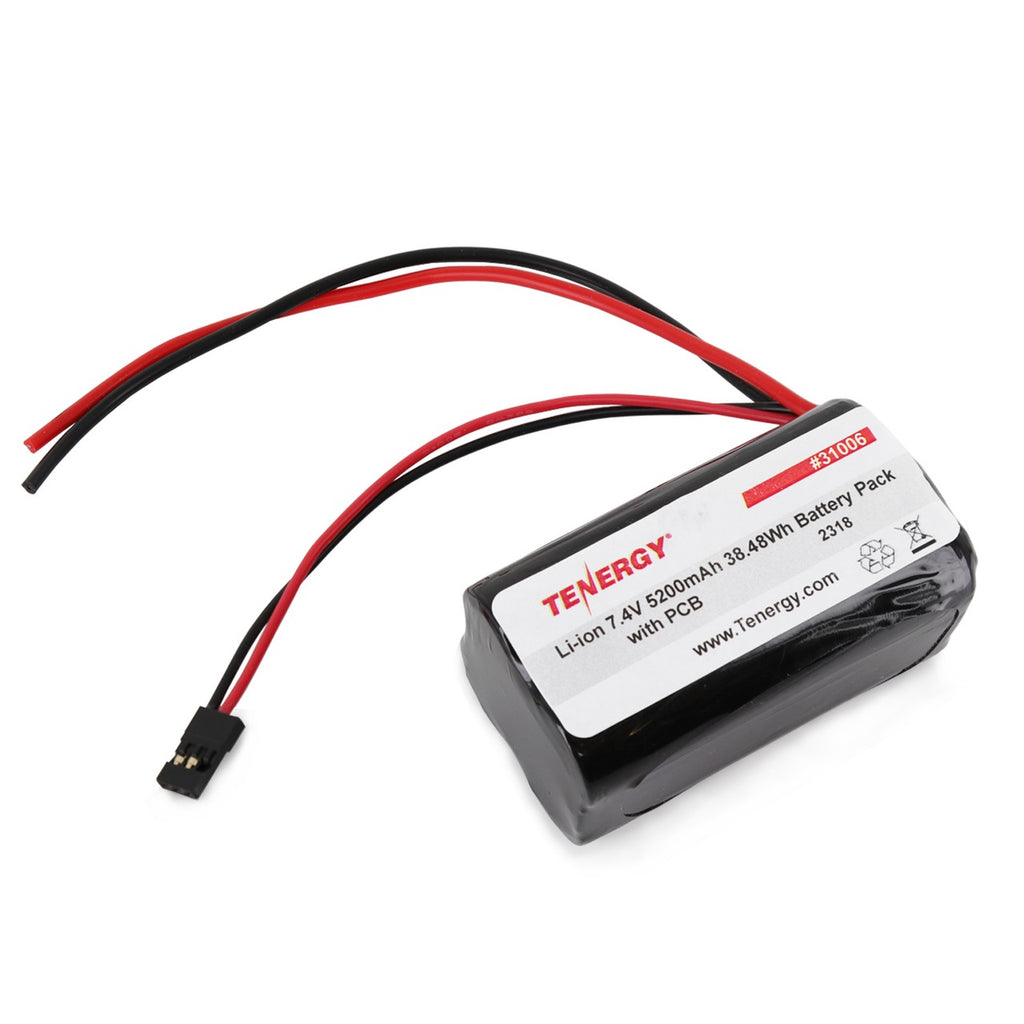

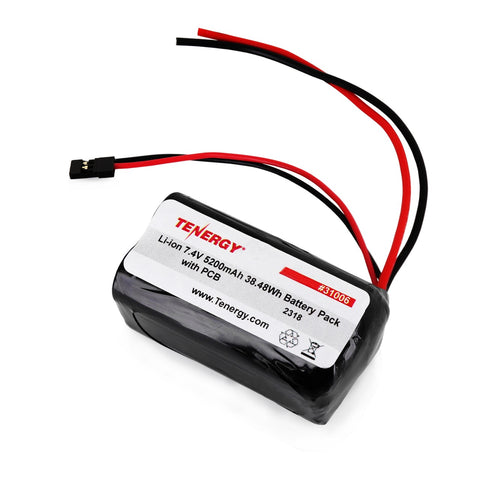

Shop the Tenergy Li-Ion 18650 7.4V 5200mAh Square Rechargeable Battery Pack w/ PCB (2S2P, 38.48Wh, 5A Rate, Bare Leads + Hitec Connector). Review the manufacturer description and specifications below to confirm voltage, capacity, dimensions, connector and compatibility for your application.
Product details and specifications
Product Highlights
- ChemistryLi-ion
- Nominal Voltage (V)7.4
- Capacity (mAh)5200
- Max Continuous Discharge Current5.0A
- Weight191g
- Dimension70 x 36 x 36mm (LxWxT)
- ConnectorBare Leads + Hitec Connector
Product Highlights
- ChemistryLi-ion
- Nominal Voltage (V)7.4
- Capacity (mAh)5200
- Max Continuous Discharge Current5.0A
- Weight191g
- Dimension70 x 36 x 36mm (LxWxT)
- ConnectorBare Leads + Hitec Connector
output
- TypePack
- ChemistryLi-ion
- Nominal Voltage (V)7.4
- Capacity (mAh)5200
- Max Continuous Discharge Current5.0A
-
Battery Charging Current
- Standard1A
- Rapid2.5A
- Weight191g
- Dimension70 x 36 x 36mm (LxWxT)
- ConnectorBare Leads + Hitec Connector
-
Avg. Temperature Ranges for:
- Charging32° F~113° F / (0~45°C)
- Discharging14°F ~140°F / (-10~60°C)
- Storage32°F ~86°F / (0~30°C)
-
PCB/Pack Protection:
- Overcharge Protection:>8.4V
- Over-discharge Protection:<6.0V
- Over Current Cutoff (A):11 ± 3A
*Note: both sets of connectors can charge/discharge, with the bare leads (thicker wire) being more suitable for discharging.
Supported Chargers:
| Item Number | Model/Description | Compatible Packs | Charging Current |
| 01211 | Tenergy TLP-2000 Li-Ion Battery Pack Charger | 3.7V - 14.8V (1-4S) | 0.5A |
| 01281 | Tenergy TLP-4000 Li-Ion Battery Pack Charger | 3.7V - 14.8V (1-4S) | 1.0A |
CAUTION:
- when working with Li-ion cells, they are very sensitive to charging characteristics and may explode if mis-handled.
- users should have enough knowledge on Li-Ion rechargeable batteries in charging, and discharging before use.
- we are not responsible for any damage caused by misuse or mishandling of these Li-Ion battery packs.
- it is strongly suggest that you use our Smart Li-Ion battery chargers to recharge the battery pack
- never use conventional DC adapter to charge the battery module - we are NOT responsible for any damage that is caused by improper charging.
- do not make parallel connection with more than three modules to avoid uneven charge.
