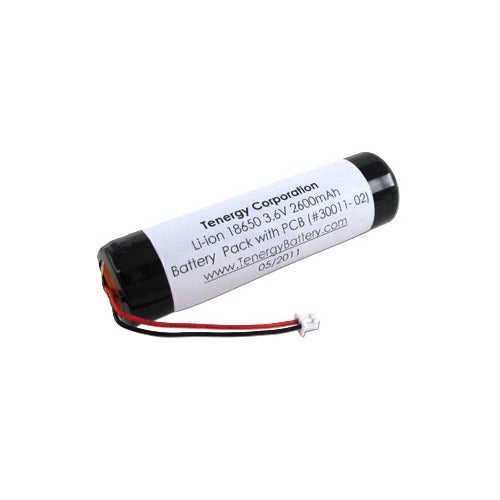

Shop the Tenergy Li-ion 18650 3.7V 2600mAh Rechargeable Battery Pack w/ PCB (1S1P, 9.62Wh, 1.4A Rate, Molex Connector). Review the manufacturer description and specifications below to confirm voltage, capacity, dimensions, connector and compatibility for your application.
Product details and specifications
Product Highlights
- ChemistryLi-ion
- Nominal Voltage (V)3.7
- Capacity (mAh)2600
- Max Continuous Discharge Current1.4A
- Weight50g
- Dimension72 x 19mm (LxD)
- ConnectorMolex 51021-0200
Product Highlights
- ChemistryLi-ion
- Nominal Voltage (V)3.7
- Capacity (mAh)2600
- Max Continuous Discharge Current1.4A
- Weight50g
- Dimension72 x 19mm (LxD)
- ConnectorMolex 51021-0200
Technical Specification
- TypePack
- ChemistryLi-ion
- Nominal Voltage (V)3.7
- Capacity (mAh)2600
- Max Continuous Discharge Current1.4A
-
Battery Charging Current
- Standard0.5A
- Rapid1.3A
- Weight50g
- Dimension72 x 19mm (LxD)
- ConnectorMolex 51021-0200
-
Avg. Temperature Ranges for
- Charging32° F~113° F / (0~45°C)
- Discharging14°F ~140°F / (-10~60°C)
- Storage32°F ~86°F / (0~30°C)
-
PCB/Pack Protection(for single cell voltages)
- Overcharge Protection<4.2V
- Over-discharge Protection>3.0V
- Over Current Cutoff (A):6.5 ± 1.5A
Supported Chargers:
| Item Number | Model/Description | Compatible Packs | Charging Current |
| 01348 | Tenergy Li-ion 3.7V 1.5A Battery Pack Charger | 3.7V (1S) | 1.5A |
| 01211 | Tenergy TLP-2000 Li-ion Battery Pack Charger | 3.7V - 14.8V (1-4S) | 0.5A |
| 01281 | Tenergy TLP-4000 Li-ion Battery Pack Charger | 3.7V - 14.8V (1-4S) | 1.0A |
CAUTION:
- when working with Li-ion cells, they are very sensitive to charging characteristics and may explode if mis-handled.
- users should have enough knowledge on Li-ion rechargeable batteries in charging, and discharging before use.
- we are not responsible for any damage caused by misuse or mishandling of these Li-ion battery packs.
- it is strongly suggest that you use our Smart Li-ion battery chargers to recharge the battery pack
- never use conventional DC adapter to charge the battery module - we are NOT responsible for any damage that is caused by improper charging.
- do not make parallel connection with more than three modules to avoid uneven charge.
