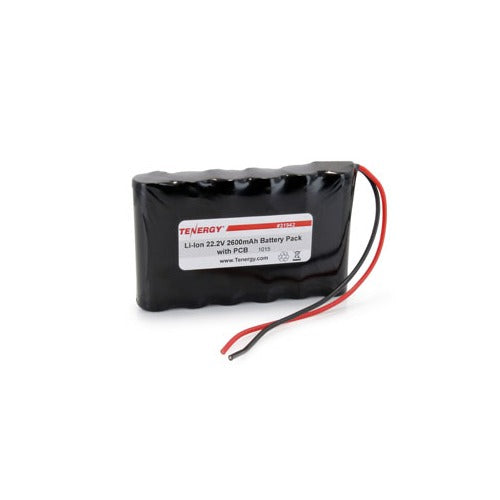

Shop the Tenergy Li-ion 18650 22.2V 2600mAh Rechargeable Battery Pack w/ PCB (6S1P, 57.72Wh, 5A Rate). Review the manufacturer description and specifications below to confirm voltage, capacity, dimensions, connector and compatibility for your application.
Product details and specifications
Product Highlights
- ChemistryLi-ion
- Nominal Voltage (V)22.2
- Capacity (mAh)2600
- Max Continuous Discharge Current5A
- Weight290g
- Dimension111 x 69 x 30mm (LxWxT)
- ConnectorBare Leads
Product Highlights
- ChemistryLi-ion
- Nominal Voltage (V)22.2
- Capacity (mAh)2600
- Max Continuous Discharge Current5A
- Weight290g
- Dimension111 x 69 x 30mm (LxWxT)
- ConnectorBare Leads
output
- TypePack
- ChemistryLi-ion
- Nominal Voltage (V)22.2
- Capacity (mAh)2600
- Max Continuous Discharge Current5A
-
Battery Charging Current
- Standard0.5A
- Rapid1A
- Weight290g
- Dimension111 x 69 x 30mm (LxWxT)
- ConnectorBare Leads
-
Avg. Temperature Ranges for
- Charging32° F~113° F / (0~45°C)
- Discharging14°F ~140°F / (-10~60°C)
- Storage32°F ~86°F / (0~30°C)
-
PCB/Pack Protection(for single cell voltages)
- Overcharge Protection<25.2V
- Over-discharge Protection>18.0V
- Over Current Cutoff (A):8 ± 2A
CAUTION:
- when working with Li-ion cells, they are very sensitive to charging characteristics and may explode if mis-handled.
- users should have enough knowledge on Li-ion rechargeable batteries in charging, and discharging before use.
- we are not responsible for any damage caused by misuse or mishandling of these Li-ion battery packs.
- it is strongly suggested that you use our Smart Li-ion battery chargers to recharge the battery pack
- never use conventional DC adapter to charge the battery module - we are NOT responsible for any damage that is caused by improper charging.
- do not make parallel connection with more than three modules to avoid uneven charge.
