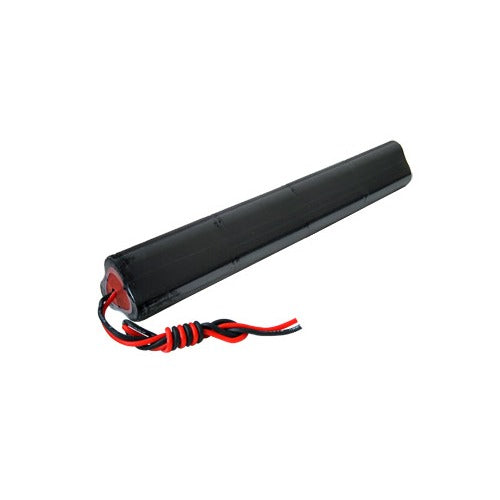

Shop the Tenergy Li-Ion 18650 14.8V 7800mAh Stick Rechargeable Battery Pack w/ PCB (4S3P, 115.44Wh, 6A Rate)**DGR-A. Review the manufacturer description and specifications below to confirm voltage, capacity, dimensions, connector and compatibility for your application.
Product details and specifications
Product Highlights
- ChemistryLi-ion
- Nominal Voltage (V)14.8
- Capacity (mAh)7800
- Max Continuous Discharge Current6A
- Weight567g
- Dimensions261 x 37 x 37mm (LxWxT)
- ConnectorBare Leads
Product Highlights
- ChemistryLi-ion
- Nominal Voltage (V)14.8
- Capacity (mAh)7800
- Max Continuous Discharge Current6A
- Weight567g
- Dimensions261 x 37 x 37mm (LxWxT)
- ConnectorBare Leads
output
- TypePack
- ChemistryLi-ion
- Nominal Voltage (V)14.8
- Capacity (mAh)7800
- Max Continuous Discharge Current6A
-
Battery Charging Current
- Standard:1.5A
- Rapid:3.5A
- Weight567g
- Dimensions261 x 37 x 37mm (LxWxT)
- ConnectorBare Leads
-
Avg. Temperature Ranges for
- Charging32° F~113° F / (0~45°C)
- Discharging14°F ~140°F / (-10~60°C)
- Storage32°F ~86°F / (0~30°C)
-
PCB/Pack Protection
- Over Charge Cutoff Voltage:>16.8V
- Over Discharge Cutoff:<12.0V
- Over Current Cutoff (Ah)17 ± 4
Supported Chargers:
| Item Number | Model/Description | Compatible Packs | Charging Current |
| 01211 | Tenergy TLP-2000 Li-Ion Battery Pack Charger | 3.7V - 14.8V (1-4S) | 0.5A |
| 01281 | Tenergy TLP-4000 Li-Ion Battery Pack Charger | 3.7V - 14.8V (1-4S) | 1.0A |
| 01206-01 | Tenergy TLP-3000 Li-Ion Battery Pack Charger | 14.8V (4S only) | 1.5A |
- Model/Description: Tenergy TLP-3000 Li-Ion Battery Pack Charger
- Compatible Packs: 14.8V (4S only)
- Charging Current: 1.5A
CAUTION:
- when working with Li-ion cells, they are very sensitive to charging characteristics and may explode if mis-handled.- users should have enough knowledge on Li-Ion rechargeable batteries in charging, and discharging before use.
- we are not responsible for any damage caused by misuse or mishandling of these Li-Ion battery packs.
- it is strongly suggest that you use our Smart Li-Ion battery chargers to recharge the battery pack
- never use conventional DC adapter to charge the battery module - we are NOT responsible for any damage that is caused by improper charging.
- do not make parallel connection with more than three modules to avoid uneven charge.
