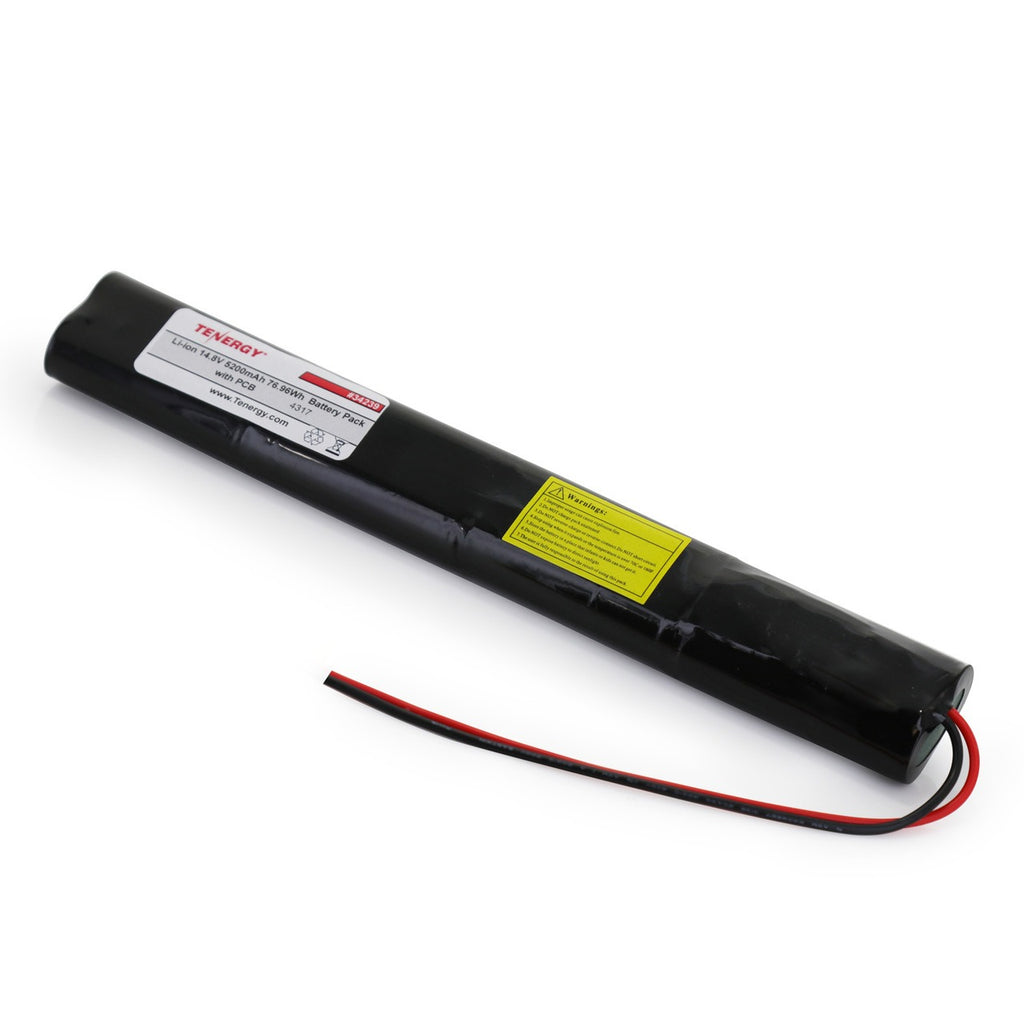

Shop the Tenergy Li-ion 18650 14.8V 5200mAh Rechargeable Battery Pack w/ PCB (4S2P, 76.96Wh, 5A Rate, Flat Pack). Review the manufacturer description and specifications below to confirm voltage, capacity, dimensions, connector and compatibility for your application.
Product details and specifications
Product Highlights
- ChemistryLi-ion
- Nominal Voltage (V)14.8
- Capacity (mAh) 5200
- Max Continuous Discharge Current5A
- Weight377g
- Dimension261 x 38 x 23mm (LxWxT)
- ConnectorBare Leads
Product Highlights
- ChemistryLi-ion
- Nominal Voltage (V)14.8
- Capacity (mAh) 5200
- Max Continuous Discharge Current5A
- Weight377g
- Dimension261 x 38 x 23mm (LxWxT)
- ConnectorBare Leads
output
- TypePack
- ChemistryLi-ion
- Nominal Voltage (V)14.8
- Capacity (mAh)5200
- Max Continuous Discharge Current5A
-
Battery Charging Current
- Standard1A
- Rapid2.6A
- Weight377g
- Dimension261 x 38 x 23mm (LxWxT)
- ConnectorBare Leads
- ConnectorBare Leads
-
Avg. Temperature Ranges for:
- Charging:0~40°C
- Discharging:20~60°C
- Storage0~40°C
-
PCB/Pack Protection:
- Overcharge Protection:>16.8V
- Over-discharge Protection:<12.0V
- Over Current Cutoff (A):6.5 ± 1.5
Supported Chargers:
| Item Number | Model/Description | Compatible Packs | Charging Current |
| 01211 | Tenergy TLP-2000 Li-ion Battery Pack Charger | 3.7V - 14.8V (1-4S) | 0.5A |
| 01281 | Tenergy TLP-4000 Li-ion Battery Pack Charger | 3.7V - 14.8V (1-4S) | 1.0A |
| 01206-01 | Tenergy TLP-3000 Li-ion Battery Pack Charger | 14.8V (4S only) | 1.5A |
CAUTION:
- when working with Li-ion cells, they are very sensitive to charging characteristics and may explode if mis-handled.
- users should have enough knowledge on Li-ion rechargeable batteries in charging, and discharging before use.
- we are not responsible for any damage caused by misuse or mishandling of these Li-ion battery packs.
- it is strongly suggest that you use our Smart Li-ion battery chargers to recharge the battery pack
- never use conventional DC adapter to charge the battery module - we are NOT responsible for any damage that is caused by improper charging.
- do not make parallel connection with more than three modules to avoid uneven charge.
