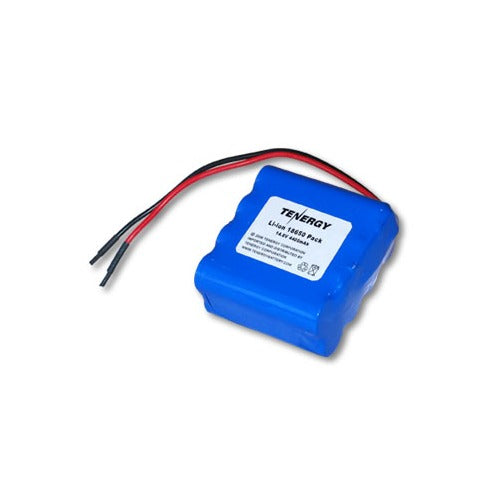

Shop the Tenergy Li-ion 18650 14.8V 4400mAh Rechargeable Battery Pack w/ PCB (4S2P, 65.12Wh, 6A Rate). Review the manufacturer description and specifications below to confirm voltage, capacity, dimensions, connector and compatibility for your application.
Product details and specifications
Product Highlights
- ChemistryLi-ion
- Nominal Voltage (V)14.4
- Capacity (mAh)4400
- Max Continuous Discharge Current6A
- Weight380g
- Dimension76 x 72 x 39mm (LxWxT)
- ConnectorBare Leads
Product Highlights
- ChemistryLi-ion
- Nominal Voltage (V)14.4
- Capacity (mAh)4400
- Max Continuous Discharge Current6A
- Weight380g
- Dimension76 x 72 x 39mm (LxWxT)
- ConnectorBare Leads
output
- TypePack
- ChemistryLi-ion
- Nominal Voltage (V)14.4
- Capacity (mAh)4400
- Max Continuous Discharge Current6A
-
Battery Charging Current
- Standard0.9A
- Rapid2A
- Weight380g
- Dimension76 x 72 x 39mm (LxWxT)
- ConnectorBare Leads
-
Avg. Temperature Ranges for
- Charging0~40°C
- Discharging20~60°C
- Storage0~40°C
-
PCB/Pack Protection(for single cell voltages)
- Overcharge Protection<16.8V
- Over-discharge Protection>12.0V
- Over Current Cutoff (A):17 ± 4
Supported Chargers:
| Item Number | Model/Description | Compatible Packs | Charging Current |
| 01211 | Tenergy TLP-2000 Li-Ion Battery Pack Charger | 3.7V - 14.8V (1-4S) | 0.5A |
| 01281 | Tenergy TLP-4000 Li-Ion Battery Pack Charger | 3.7V - 14.8V (1-4S) | 1.0A |
| 01206-01 | Tenergy TLP-3000 Li-Ion Battery Pack Charger | 14.8V (4S only) | 1.5A |
CAUTION:
- when working with Li-ion cells, they are very sensitive to charging characteristics and may explode if mis-handled.
- users should have enough knowledge on Li-Ion rechargeable batteries in charging, and discharging before use.
- we are not responsible for any damage caused by misuse or mishandling of these Li-Ion battery packs.
- it is strongly suggest that you use our Smart Li-Ion battery chargers to recharge the battery pack
- never use conventional DC adapter to charge the battery module - we are NOT responsible for any damage that is caused by improper charging.
- do not make parallel connection with more than three modules to avoid uneven charge.
