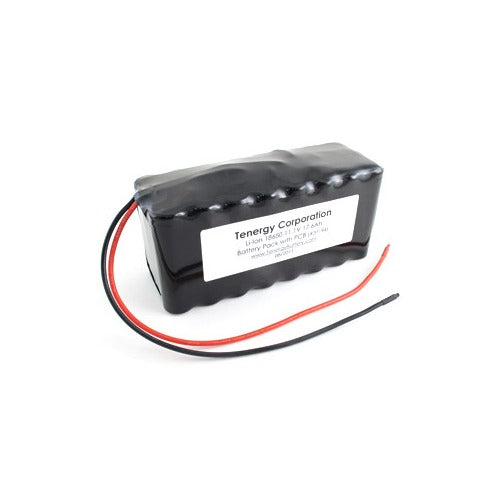

Shop the Tenergy Li-ion 18650 11.1V 17,600mAh Rechargeable Battery Pack w/ PCB (3S8P, 195.36Wh, 9A Rate)**DGR-A. Review the manufacturer description and specifications below to confirm voltage, capacity, dimensions, connector and compatibility for your application.
Product details and specifications
Product Highlights
- ChemistryLi-ion
- Nominal Voltage (V)11.1
- Capacity (mAh)17600
- Max Continuous Discharge Current9.0A
- Weight1106g
- Dimensions147 x 74 x 56mm (LxWxT)
- ConnectorBare Leads
Product Highlights
- ChemistryLi-ion
- Nominal Voltage (V)11.1
- Capacity (mAh)17600
- Max Continuous Discharge Current9.0A
- Weight1106g
- Dimensions147 x 74 x 56mm (LxWxT)
- ConnectorBare Leads
output
- TypePack
- Chemistry:Li-ion
- Nominal Voltage:11.1V
- Capacity: 17600mAh
- Max Continuous Discharge Current:9.0A
-
Battery Charging Current
- Standard:3.5A
- Rapid:8A
- Weight:1106g
- Dimensions:147 x 74 x 56mm (LxWxT)
- ConnectorBare Leads
-
Avg. Temperature Ranges for
- Charging32° F~113° F / (0~45°C)
- Discharging14°F ~140°F / (-10~60°C)
- Storage32°F ~86°F / (0~30°C)
-
PCB/Pack Protection
- Over Charge Cutoff Voltage:>12.6V
- Over Discharge Cutoff:<9.0V
- Over Current Cutoff (A)17 ± 4A
Supported Chargers:
| Item Number | Model/Description | Compatible Packs | Charging Current |
| 01281 | Tenergy TLP-4000 Li-ion Battery Pack Charger | 3.7V - 14.8V (1-4S) | 1.0A |
| 01340 | Tenergy Li-ion 11.1V Battery Pack Charger | 11.1V (3S only) | 2.0A |
CAUTION:
- when working with Li-ion cells, they are very sensitive to charging characteristics and may explode if mis-handled.- users should have enough knowledge on Li-ion rechargeable batteries in charging, and discharging before use.
- we are not responsible for any damage caused by misuse or mishandling of these Li-ion battery packs.
- it is strongly suggest that you use our Smart Li-ion battery chargers to recharge the battery pack
- never use conventional DC adapter to charge the battery module - we are NOT responsible for any damage that is caused by improper charging.
- do not make parallel connection with more than three modules to avoid uneven charge.
