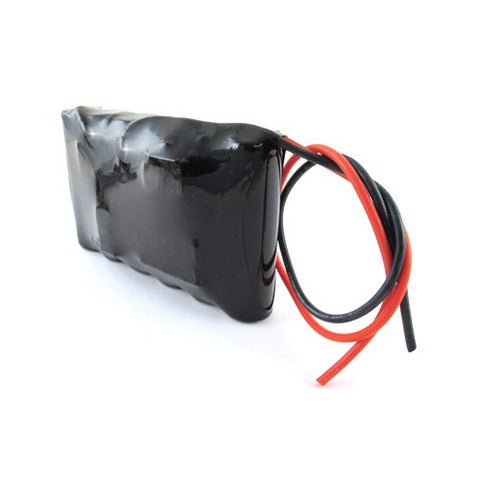

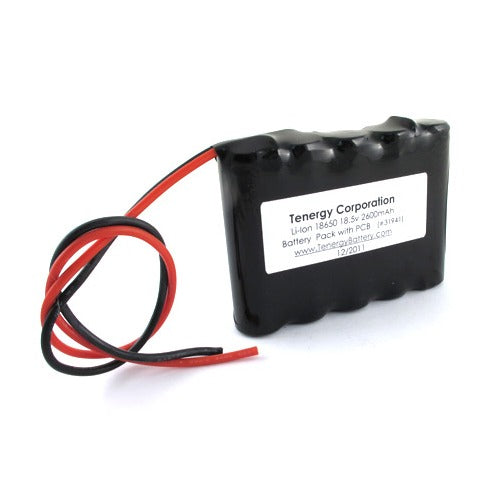

Shop the Tenergy Li-Ion 18.0V 2600mAh Rechargeable Battery Pack w/ PCB (5S1P, 48.10Wh, 2.6A Rate). Review the manufacturer description and specifications below to confirm voltage, capacity, dimensions, connector and compatibility for your application.
Product details and specifications
Product Highlights
- ChemistryLi-ion
- Nominal Voltage (V)18.0
- Capacity (mAh)2600
- Max Continuous Discharge Current 2.6A
- Weight269g
- Dimension90 x 70 x 26mm (LxWxT)
- ConnectorBare Leads
Product Highlights
- ChemistryLi-ion
- Nominal Voltage (V)18.0
- Capacity (mAh)2600
- Max Continuous Discharge Current 2.6A
- Weight269g
- Dimension90 x 70 x 26mm (LxWxT)
- ConnectorBare Leads
output
- TypePack
- ChemistryLi-ion
- Nominal Voltage (V) 18.0
- Capacity (mAh)2600
- Max Continuous Discharge Current
- 5A (5~45°C)
- 1.25A (-20~5°C)
-
Battery Charging Current
- Standard0.4A
- Weight269g
- Dimension90 x 70 x 26mm (LxWxT)
- ConnectorBare Leads
-
Avg. Temperature Ranges for
- Charging32° F~113° F / (0~45°C)
- Discharging14°F ~140°F / (-10~60°C)
- Storage32°F ~86°F / (0~30°C)
-
PCB/Pack Protection(for single cell voltages)
- Overcharge Cutoff Voltage: 4.25 ± 0.025V
- Over-discharge Cutoff (Ah): 2.80 ± 0.05V
- Over Current Cutoff (A): 25 ± 6.5A
CAUTION:
- when working with Li-ion cells, they are very sensitive to charging characteristics and may explode if mis-handled.
- users should have enough knowledge on Li-Ion rechargeable batteries in charging, and discharging before use.
- we are not responsible for any damage caused by misuse or mishandling of these Li-Ion battery packs.
- it is strongly suggest that you use our Smart Li-Ion battery chargers to recharge the battery pack
- never use conventional DC adapter to charge the battery module - we are NOT responsible for any damage that is caused by improper charging.
- do not make parallel connection with more than three modules to avoid uneven charge.
