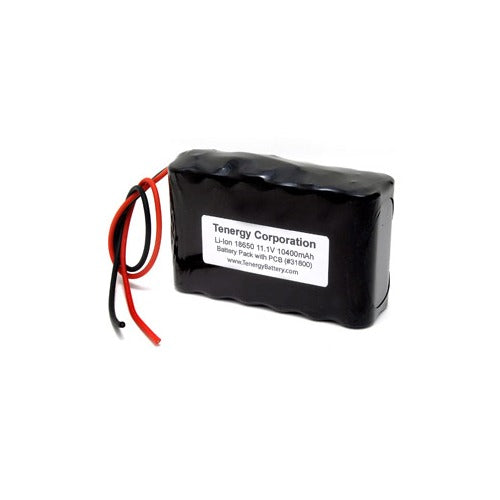

Shop the Tenergy Li-ion 11.1V 10400mAh Rechargeable Battery Pack w/ PCB (3S4P, 115.44Wh, 9A Rate) **DGR-A. Review the manufacturer description and specifications below to confirm voltage, capacity, dimensions, connector and compatibility for your application.
Product details and specifications
Product Highlights
- ChemistryLi-ion
- Nominal Voltage (V)11.1
- Capacity (mAh)10400
- Max Continuous Discharge Current9A
- Weight589g
- Dimensions110 x 73 x 38mm (LxWxT)
- ConnectorBare Leads
Product Highlights
- ChemistryLi-ion
- Nominal Voltage (V)11.1
- Capacity (mAh)10400
- Max Continuous Discharge Current9A
- Weight589g
- Dimensions110 x 73 x 38mm (LxWxT)
- ConnectorBare Leads
output
- TypePack
- ChemistryLi-ion
- Nominal Voltage (V)11.1
- Capacity (mAh)10400
- Max Continuous Discharge Current 9A
-
Battery Charging Current
- Standard: 2A
- Rapid: 5A
- Weight589g
- Dimensions110 x 73 x 38mm (LxWxT)
- ConnectorBare Leads
-
Avg. Temperature Ranges for
- Charging32° F~113° F / (0~45°C)
- Discharging14°F ~140°F / (-10~60°C)
- Storage32°F ~86°F / (0~30°C)
-
PCB/Pack Protection
- Over Charge Cutoff Voltage:>12.6V
- Over Discharge Cutoff:<9.0V
- Over Current Cutoff (A) 17 ± 4A
Supported Chargers:
| Item Number | Model/Description | Compatible Packs | Charging Current |
| 01211 | Tenergy TLP-2000 Li-ion Battery Pack Charger | 3.7V - 14.8V (1-4S) | 0.5A |
| 01281 | Tenergy TLP-4000 Li-ion Battery Pack Charger | 3.7V - 14.8V (1-4S) | 1.0A |
| 01340 | Tenergy Li-ion 11.1V Battery Pack Charger | 11.1V (3S only) | 2.0A |
CAUTION:
- when working with Li-ion cells, they are very sensitive to charging characteristics and may explode if mis-handled.- users should have enough knowledge on Li-ion rechargeable batteries in charging, and discharging before use.
- we are not responsible for any damage caused by misuse or mishandling of these Li-ion battery packs.
- it is strongly suggestedthat you use our Smart Li-ion battery chargers to recharge the battery pack
- never use conventional DC adapter to charge the battery module - we are NOT responsible for any damage that is caused by improper charging.
- do not make parallel connection with more than three modules to avoid uneven charge.
