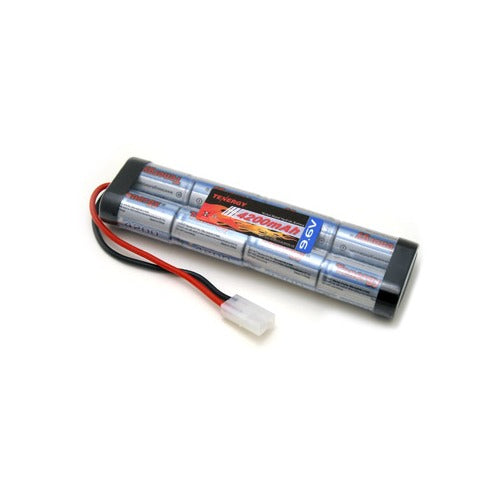

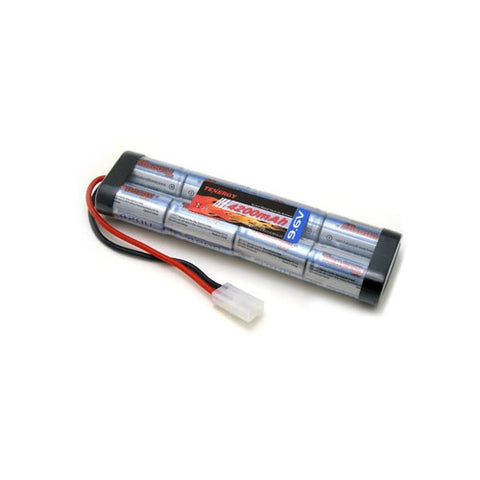

Shop the Tenergy 9.6V 4200mAh NiMH Rechargeable Battery Pack (8S1P, 40.3Wh, 30A Rate, Tamiya Connector, Flat Config). Review the manufacturer description and specifications below to confirm voltage, capacity, dimensions, connector and compatibility for your application.
Product details and specifications
Product Highlights
- ChemistryNi-MH
- Nominal Voltage (V)9.6
- Capacity (mAh)4200
- Max Continuous Discharge Current30A
- Weight1.25lb
- Dimension178 x 46 x 22.8mm (LxWxT)
- Connector Standard Tamiya Connector
Product Highlights
- ChemistryNi-MH
- Nominal Voltage (V)9.6
- Capacity (mAh)4200
- Max Continuous Discharge Current30A
- Weight1.25lb
- Dimension178 x 46 x 22.8mm (LxWxT)
- Connector Standard Tamiya Connector
output
- TypePack
- ChemistryNi-MH
- Cell SizeSub C
- Nominal Voltage (V)9.6
- Capacity (mAh)4200
- Max Continuous Discharge Current30A
-
Battery Charging Current
- Standard0.4A
- Rapid2A
- Weight1.25lb
- Dimension178 x 46 x 22.8mm (LxWxT)
- Connector Standard Tamiya Connector
-
Recommended Storage Temps*
- Less Than 30 Days-20 to 50°C
- Less Than 90 Days-20 to 40°C
- Less Than 1 Year-20 to 30°C
- Humidity45-85%
Supported Chargers:
| Item Number | Model/Description | Compatible Packs | Charging Current |
| 01025 | Tenergy Smart NiMH/NiCD Pack Charger for 6V-12V | 6V-12V (5-10S) | 1A or 2A |
| 01005 | Tenergy Smart NiMH/NiCD Pack Charger for 7.2V-12V | 7.2V-12V (6-10S) | 0.9A or 1.8A |
| 90263 | Tenergy TB6B Multifunction Balance Charger + Power Supply | 1.2V - 18V (1-15S) | 0.1A to 5A |
*Disclaimer:
NiMH/NiCd battery voltage can drop significantly during storage due to self-discharge. We strongly recommend checking the voltage of your stored batteries, or cycle them, at least once every 6 months.
