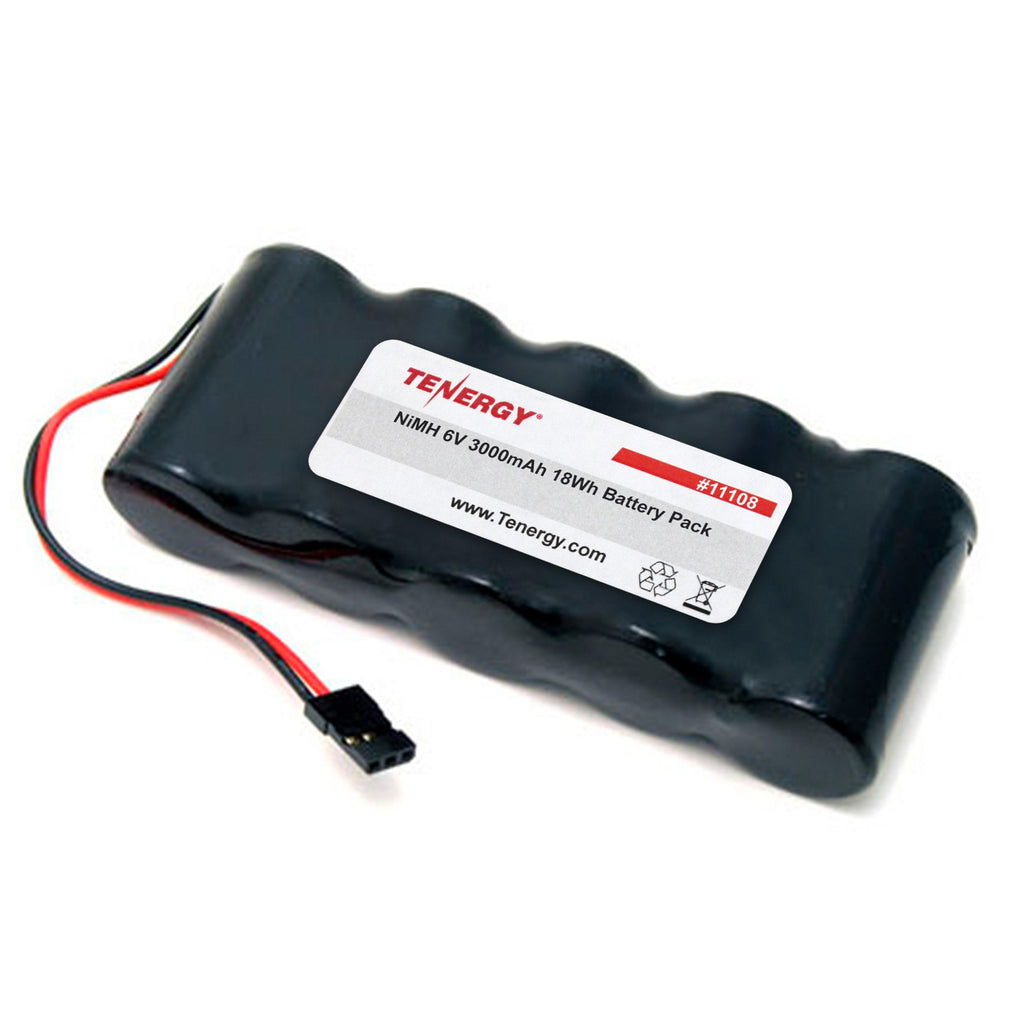

Shop the Tenergy 6V 3000mAh NiMH Rechargeable Battery Pack (5S1P, 18Wh, Hitech Connector, SBS Config). Review the manufacturer description and specifications below to confirm voltage, capacity, dimensions, connector and compatibility for your application.
Product details and specifications
Product Highlights
- ChemistryNi-MH
- Nominal Voltage (V)6
- Capacity (mAh)3000
- Max Continuous Discharge Current6A
- Weight10oz
- Dimension112 x 46 x 23mm (LxWxT)
- ConnectorHitech
Product Highlights
- ChemistryNi-MH
- Nominal Voltage (V)6
- Capacity (mAh)3000
- Max Continuous Discharge Current6A
- Weight10oz
- Dimension112 x 46 x 23mm (LxWxT)
- ConnectorHitech
output
- TypePack
- ChemistryNi-MH
- Cell SizeSub-C
- Nominal Voltage (V)6
- Capacity (mAh)3000
- Max Continuous Discharge Current6A
-
Battery Charging Current
- Standard1A
- Weight10oz
- Dimension112 x 46 x 23mm (LxWxT)
- ConnectorHitech
-
Recommended Storage Temps*
- Recommended Storage Temps*-20 to 50°C
- Less Than 90 Days-20 to 40°C
- Less Than 1 Year-20 to 30°C
- Humidity45-85%
Supported Chargers:
| Item Number | Model/Description | Compatible Packs | Charging Current |
| 01006 | Tenergy Smart NiMH/NiCD Pack Charger for 2.4V-7.2V | 2.4-7.2V (2-6S) | 0.9A or 1.8A |
| 01025 | Tenergy Smart NiMH/NiCD Pack Charger for 6V-12V | 6V-12V (5-10S) | 1A or 2A |
| 90263 | Tenergy TB6B Multifunction Balance Charger + Power Supply | 1.2V - 18V (1-15S) | 0.1A to 5A |
*Note: while these chargers can support this battery and chemistry, Part #01006 & #01025 will need to a custom change of connector if you plan to use it. Otherwise, only the TB6B charger supports it natively as it has a Hitech connector.
*Disclaimer:
NiMH/NiCd battery voltage can drop significantly during storage due to self-discharge. We strongly recommend checking the voltage of your stored batteries, or cycle them, at least once every 6 months. Some chargers may have a safety timer to shut off after a certain number of hours, it may not fully charge a high capacity battery pack in one sitting.
