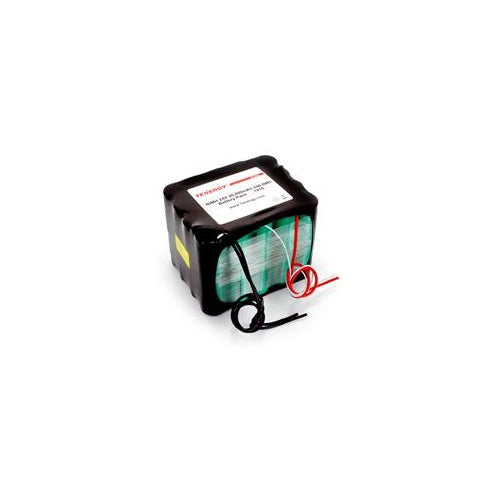

Shop the Tenergy 24V 20,000mAh NiMH Rechargeable Battery Pack (20S2P, 480.0Wh, 10A Rate). Review the manufacturer description and specifications below to confirm voltage, capacity, dimensions, connector and compatibility for your application.
Product details and specifications
Product Highlights
- ChemistryNi-MH
- Nominal Voltage (V)24
- Capacity (mAh)20000
- Max Continuous Discharge Current10A
- Weight 14.5lbs
- Dimension165 x 130x 128mm (LxWxH)
- ConnectorBare Leads
Product Highlights
- ChemistryNi-MH
- Nominal Voltage (V)24
- Capacity (mAh)20000
- Max Continuous Discharge Current10A
- Weight 14.5lbs
- Dimension165 x 130x 128mm (LxWxH)
- ConnectorBare Leads
output
- TypePack
- ChemistryNi-MH
- Cell SizeD
- Nominal Voltage (V)24
- Capacity (mAh)20000
- Max Continuous Discharge Current10A
-
Battery Charging Current
- Standard1A
- Rapid5A
- Weight14.5lbs
- Dimension165 x 130x 128mm (LxWxH)
- ConnectorBare Leads
-
Recommended Storage Temps*
- Less Than 30 Days-20 to 50°C
- Less Than 90 Days-20 to 40°C
- Less Than 1 Year-20 to 30°C
- Humidity45-85%
Supported Chargers:
| Item Number | Model/Description | Compatible Packs | Charging Current |
| 01027 | Tenergy Smart NiMH/NiCD Pack Charger for 12V-24V | 12V-24V (10-20S) | 0.5A |
*Disclaimer:
NiMH/NiCd battery voltage can drop significantly during storage due to self-discharge. We strongly recommend checking the voltage of your stored batteries, or cycle them, at least once every 6 months. Some chargers may have a safety timer to shut off after a certain number of hours, it may not fully charge a high capacity battery pack in one sitting.
