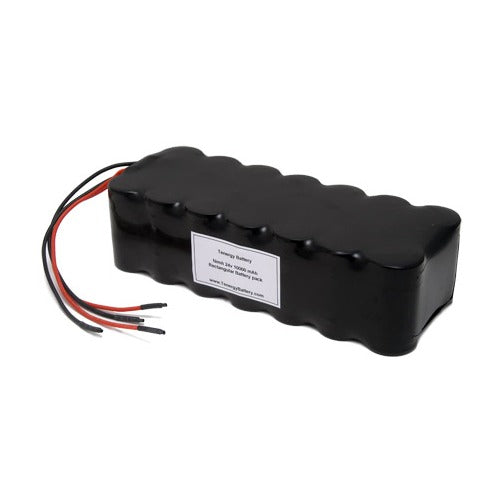

Shop the Tenergy 24V 10000mAh NiMH Rechargeable Battery Pack (20S1P, 240.0Wh, 10A Rate, 2 Sets Bare Leads). Review the manufacturer description and specifications below to confirm voltage, capacity, dimensions, connector and compatibility for your application.
Product details and specifications
Product Highlights
- ChemistryNi-MH
- Nominal Voltage (V)24
- Capacity (mAh)10000
- Max Continuous Discharge Current10A
- Weight6.8lbs
- Dimension229 x 89 x 60mm (LxWxT)
- Connector 2 Sets of Bare Leads
Product Highlights
- ChemistryNi-MH
- Nominal Voltage (V)24
- Capacity (mAh)10000
- Max Continuous Discharge Current10A
- Weight6.8lbs
- Dimension229 x 89 x 60mm (LxWxT)
- Connector 2 Sets of Bare Leads
output
- TypePack
- ChemistryNi-MH
- Cell SizeD
- Nominal Voltage (V)24
- Capacity (mAh)10000
- Max Continuous Discharge Current10A
-
Battery Charging Current
- Standard1A
- Rapid5A
- Weight6.8lbs
- Dimension229 x 89 x 60mm (LxWxT)
- Connector 2 Sets of Bare Leads
-
Recommended Storage Temps*
- Less Than 30 Days-20 to 50°C
- Less Than 90 Days-20 to 40°C
- Less Than 1 Year-20 to 30°C
- Humidity45-85%
Supported Chargers:
| Item Number | Model/Description | Compatible Packs | Charging Current |
| 01027 | Tenergy Smart NiMH/NiCD Pack Charger for 12V-24V | 12V-24V (10-20S) | 0.5A |
*Disclaimer:
NiMH/NiCd battery voltage can drop significantly during storage due to self-discharge. We strongly recommend checking the voltage of your stored batteries, or cycle them, at least once every 6 months. Recommended charger does not charge the battery pack in one setting. It has a 15-Hour Safety Shut Off. The charger will need to be manually reset to completely charge the pack.
