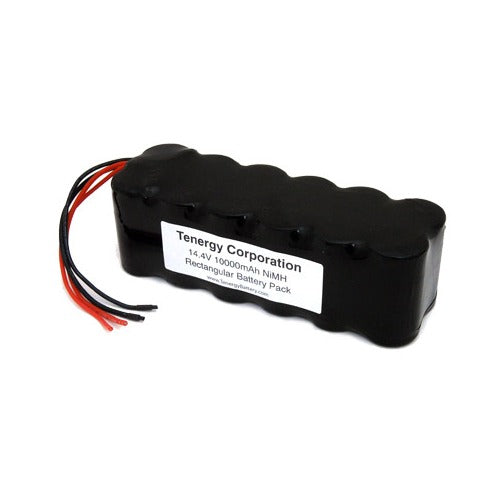

Shop the Tenergy 14.4V 10000mAh NiMH Rechargeable Battery Pack (12S1P, 144.0Wh, 10A Rate, 2 Sets Bare Leads). Review the manufacturer description and specifications below to confirm voltage, capacity, dimensions, connector and compatibility for your application.
Product details and specifications
Product Highlights
- ChemistryNi-MH
- Nominal Voltage (V)14.4
- Capacity (mAh)10000
- Max Continuous Discharge Current10A
- Weight4.15lbs
- Dimension192 x 66 x 60mm (LxWxT)
- Connector2 Sets of Bare Leads
Product Highlights
- ChemistryNi-MH
- Nominal Voltage (V)14.4
- Capacity (mAh)10000
- Max Continuous Discharge Current10A
- Weight4.15lbs
- Dimension192 x 66 x 60mm (LxWxT)
- Connector2 Sets of Bare Leads
output
- TypePack
- ChemistryNi-MH
- Cell SizeD
- Nominal Voltage (V)14.4
- Capacity (mAh)10000
- Max Continuous Discharge Current10A
-
Battery Charging Current
- Standard1A
- Rapid5A
- Weight4.15lbs
- Dimension192 x 66 x 60mm (LxWxT)
- Connector2 Sets of Bare Leads
-
Recommended Storage Temps*
- Less Than 30 Days-20 to 50°C
- Less Than 90 Days-20 to 40°C
- Less Than 1 Year-20 to 30°C
- Humidity45-85%
Supported Chargers:
| Item Number | Model/Description | Compatible Packs | Charging Current |
| 01004 | Tenergy Smart NiMH/NiCD Pack Charger for 12V-16.8V | 12V-16.8V (10-14S) | 0.9A or 1.8A |
| 90263 | Tenergy TB6B Multifunction Balance Charger + Power Supply | 1.2V - 18V (1-15S) | 0.1A to 5A |
*Disclaimer:
NiMH/NiCd battery voltage can drop significantly during storage due to self-discharge. We strongly recommend checking the voltage of your stored batteries, or cycle them, at least once every 6 months. Some chargers may have a safety timer to shut off after a certain number of hours, it may not fully charge a high capacity battery pack in one sitting.
