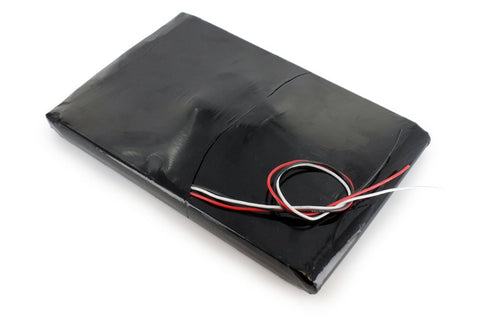

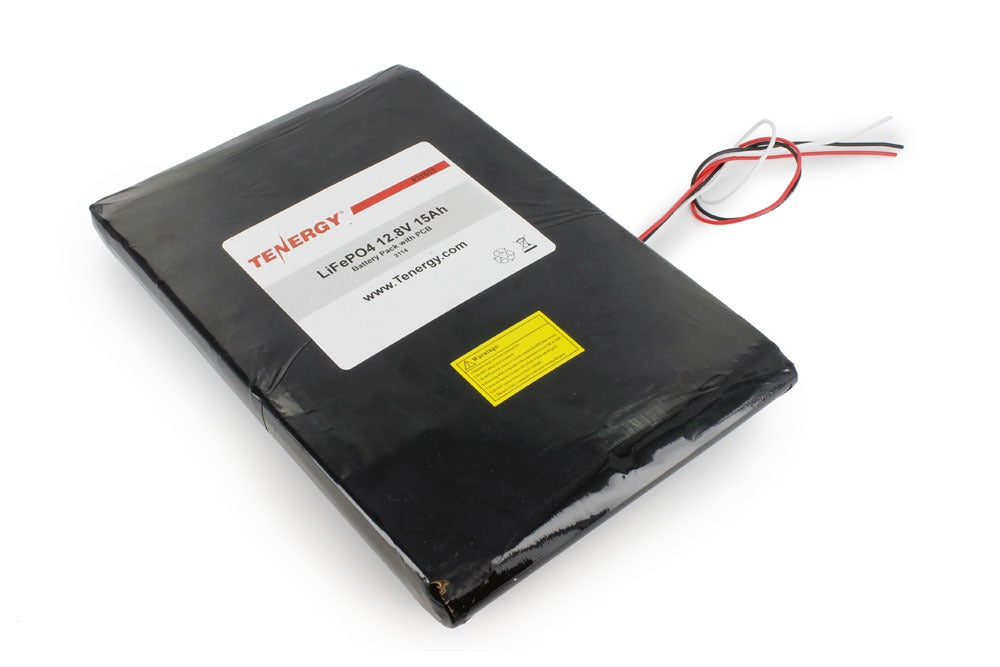

Shop the Tenergy 12.8V 15,000mAh LiFePO4 Battery Pack with PCB (DGR-A), 18AWG wire. Review the manufacturer description and specifications below to confirm voltage, capacity, dimensions, connector and compatibility for your application.
Product details and specifications
Product Highlight
- Nominal Voltage12.8V
- Capacity15Ah
- 1000 long life cycle
- WeightApprox: 1750g
- Dimension232 x 160 x 24 mm (LxWxH)
- Max 15-amp working/ 25-amp bursting
Product Highlight
- Nominal Voltage12.8V
- Capacity15Ah
- 1000 long life cycle
- WeightApprox: 1750g
- Dimension232 x 160 x 24 mm (LxWxH)
- Max 15-amp working/ 25-amp bursting
Features
- AT Tenergy 12.8V 15Ah LiFePO4 Battery Pack with PCB Built with 4 pieces 3.2V 15Ah LiFePO4 (Lithium Iron Phosphate) Rechargeable Battery More capacity per gram, meaning longer duration between charges.
- 1000 long life cycle.
- Low self discharge, so it is always ready to go even weeks after charging. Faster charge time.
- Connector: no connector, bare leads.
output
- Rated Capacity15Ah
- Nominal Voltage12.8V
- Charging voltage 14.4V
- Impedance ≤120mΩ
-
Standard Charge
- Constant Current3A
- Constant Voltage14.4V
- Cut-off current 0.3A
-
Standard Discharge
- Constant Current3A
- End voltage9.2V
- WeightApprox: 1750g
- Dimension232 x 160 x 24 mm (LxWxH)
-
Fast Charge
- Constant Current15A
- Constant Voltage 14.4V
- Cut-off current 0.3A
- Capacity15Ah
- Maximum continuous discharge current15A
-
Operation temperature range
- Charge 0~45℃
- Discharge-20~60℃
- Cycle life≥1000 （80% DoD）
-
Storage temperature
- ≤ 1 month0 ~45℃
- ≤ 3 month-10 ~30℃
- ≤ 6 month-10 ~25℃
Supported Chargers:
| Item Number | Model/Description | Compatible Packs | Charging Current |
| 01303 | Tenergy 12.8V (4S) LiFePO4 Battery Pack Charger | 12.8V (4S) | 1.5A |
Warning:
- This pack is LiFePO4 chemistry. Only charge them on quality chargers which have a dedicated charge routine for LiFePO4 cells.
- NEVER attempt to charge damaged packs.
- Read all cautions on product packaging before using these packs.
