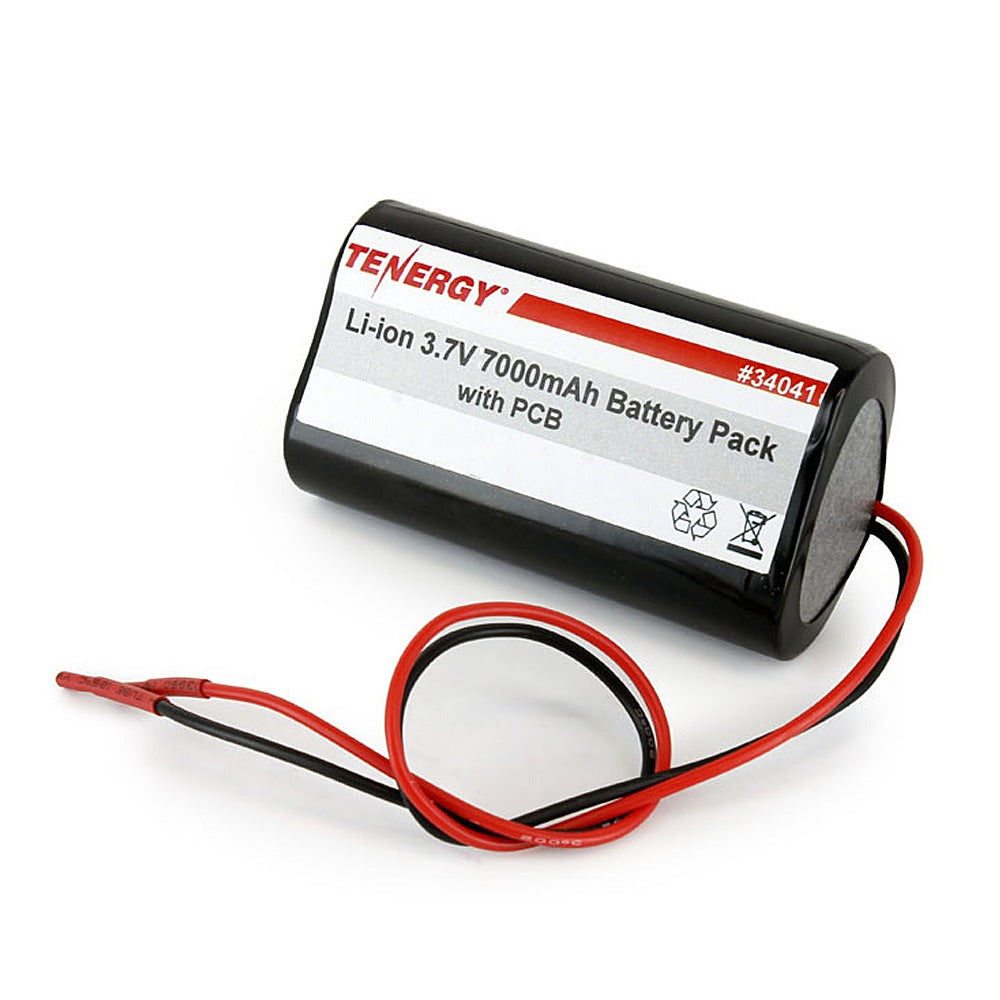

Shop the Tenergy Li-ion 18650 3.6V 7000mAh Rechargeable Battery Pack w/ PCB (1S2P, 25.20Wh, 6A Rate). Review the manufacturer description and specifications below to confirm voltage, capacity, dimensions, connector and compatibility for your application.
Product details and specifications
Product Highlights
- ChemistryLi-ion
- Nominal Voltage (V)3.6
- Capacity (mAh)7000
- Max Continuous Discharge Current6A
- Weight100g
- Dimension69 x 36.8 x 18.8mm (LxWxH)
- ConnectorBare Leads
Product Highlights
- ChemistryLi-ion
- Nominal Voltage (V)3.6
- Capacity (mAh)7000
- Max Continuous Discharge Current6A
- Weight100g
- Dimension69 x 36.8 x 18.8mm (LxWxH)
- ConnectorBare Leads
output
- TypePack
- ChemistryLi-ion
- Nominal Voltage (V)3.6
- Capacity (mAh)7000
- Max Continuous Discharge Current6A
-
Battery Charging Current
- Standard1.3A
- Rapid3A
- Weight100g
- Dimension69 x 36.8 x 18.8mm (LxWxH)
- ConnectorBare Leads
-
Avg. Temperature Ranges for:
- Charging32° F~113° F / (0~45°C)
- Discharging14°F ~140°F / (-10~60°C)
- Storage32°F ~86°F / (0~30°C)
-
PCB/Pack Protection:
- Overcharge Protection:>4.2V
- Over-discharge Protection:<3.0V
- Over Current Cutoff (A):15 ± 3A
Supported Chargers:
| Item Number | Model/Description | Compatible Packs | Charging Current |
| 01348 | Tenergy Li-ion 3.7V 1.5A Battery Pack Charger | 3.7V (1S) | 1.5A |
| 01211 | Tenergy TLP-2000 Li-ion Battery Pack Charger | 3.7V - 14.8V (1-4S) | 0.5A |
| 01281 | Tenergy TLP-4000 Li-ion Battery Pack Charger | 3.7V - 14.8V (1-4S) | 1.0A |
CAUTION:
- when working with Li-ion cells, they are very sensitive to charging characteristics and may explode if mis-handled.
- users should have enough knowledge on Li-ion rechargeable batteries in charging, and discharging before use.
- we are not responsible for any damage caused by misuse or mishandling of these Li-ion battery packs.
- it is strongly suggested that you use our Smart Li-ion battery chargers to recharge the battery pack
- never use conventional DC adapter to charge the battery module - we are NOT responsible for any damage that is caused by improper charging.
- do not make parallel connection with more than three modules to avoid uneven charge.
