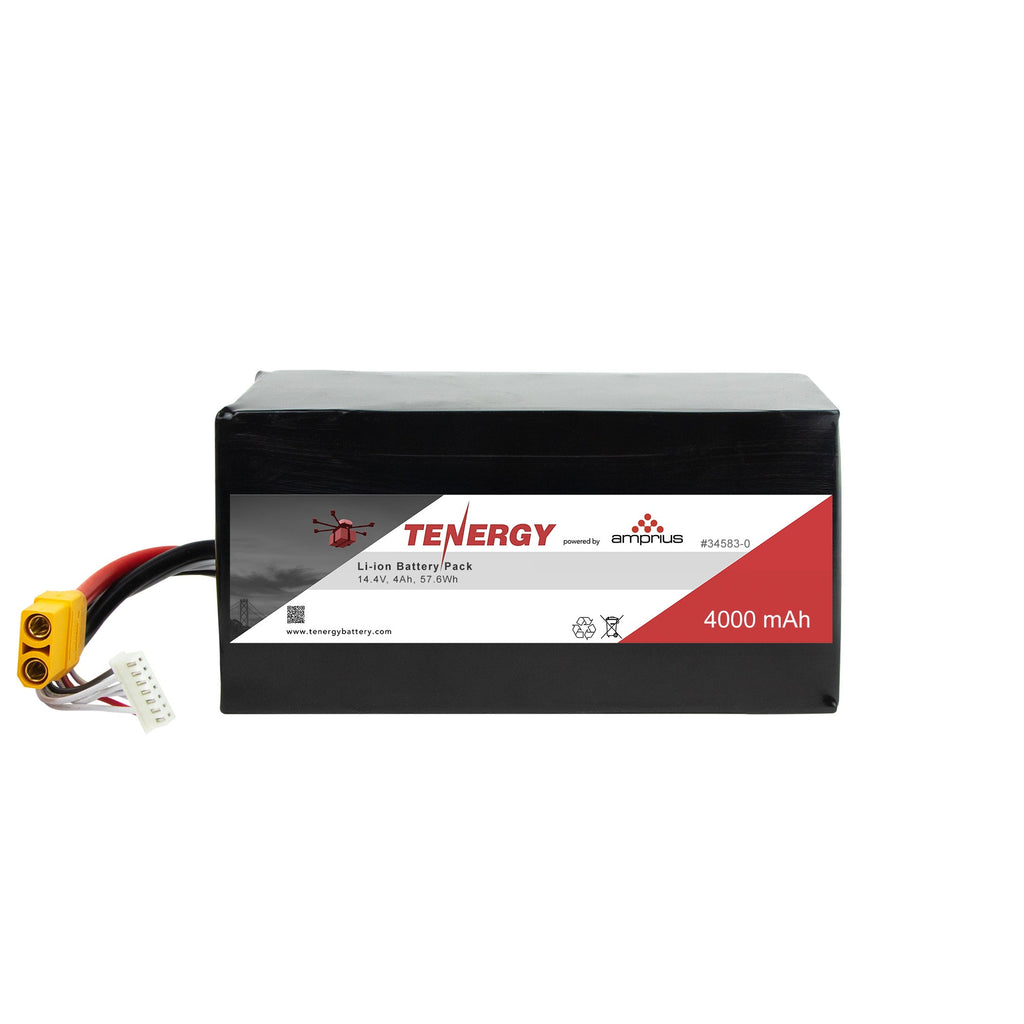

Shop the Tenergy Li-ion Cylindrical 18650 14.4V 4000mAh Rechargeable Battery Pack (4S1P, 57.6Wh, 16A Discharge) | Powered by Amprius. Review the manufacturer description and specifications below to confirm voltage, capacity, dimensions, connector and compatibility for your application.
Product details and specifications
product highlights
- 16A Airflow Determined
- Compact Size: 7.16cmx3.7cmx3.7cm (LxWxT)
- Discharge/Charge: XT90 connector, 150mm 10AWG wire
- Balance Charge: JST XHP-5P balance connector, 70mm 22AWG wire
product highlights
- 16A Airflow Determined
- Compact Size: 7.16cmx3.7cmx3.7cm (LxWxT)
- Discharge/Charge: XT90 connector, 150mm 10AWG wire
- Balance Charge: JST XHP-5P balance connector, 70mm 22AWG wire
Product Description:
- Ultra high energy density
- 16A Airflow Determined
- 7.16cmx3.7cmx3.7cm compact size
- Ideal battery pack for small-sized to mid-sized UAS (Unmanned Aircraft Systems)
- For technical support or product inquiry, contact: iad@tenergy.com
Specifications:
- Type: Battery Pack
- Chemistry: Li-ion Cylindrical 18650
- Nominal Voltage (V): 14.4
- Capacity (mAh): 4,000
- Energy (Wh): 57.6
- Constant Discharge Current: 16A Airflow Determined
- Burst Current: 20A for 10 seconds Airflow Determined
- Charging Current: 4 Amps Normal
- Weight: 205.98g
- Dimensions: 7.16x3.7x3.7cm (LxWxT)
- Connector/Wire:
- Discharge/Charge: XT90 connector, 150mm 10AWG wire
- Balance Charge: JST XHP-5P balance connector, 70mm 22AWG wire
- Maximum Cell Temperature Range: -17 to 70°C, 0 to 165°F
Safety Precaution and Liability Release Form:
- By completing a purchase of this item, you are acknowledging that you have fully read and agreed to the terms and conditions of the reliability release form below for this Amprius battery pack:
CAUTION:
- When working with Li-ion packs, they are very sensitive to charging characteristics and may explode if mis-handled.
- Users should have enough knowledge on Li-ion rechargeable batteries in charging, and discharging before use.
- We are not responsible for any damage caused by misuse or mishandling of these Li-ion battery packs.
- Never use conventional DC adapter to charge the battery module - we are NOT responsible for any damage that is caused by improper charging.
- Do not make parallel connection with more than three modules to avoid uneven charge.
