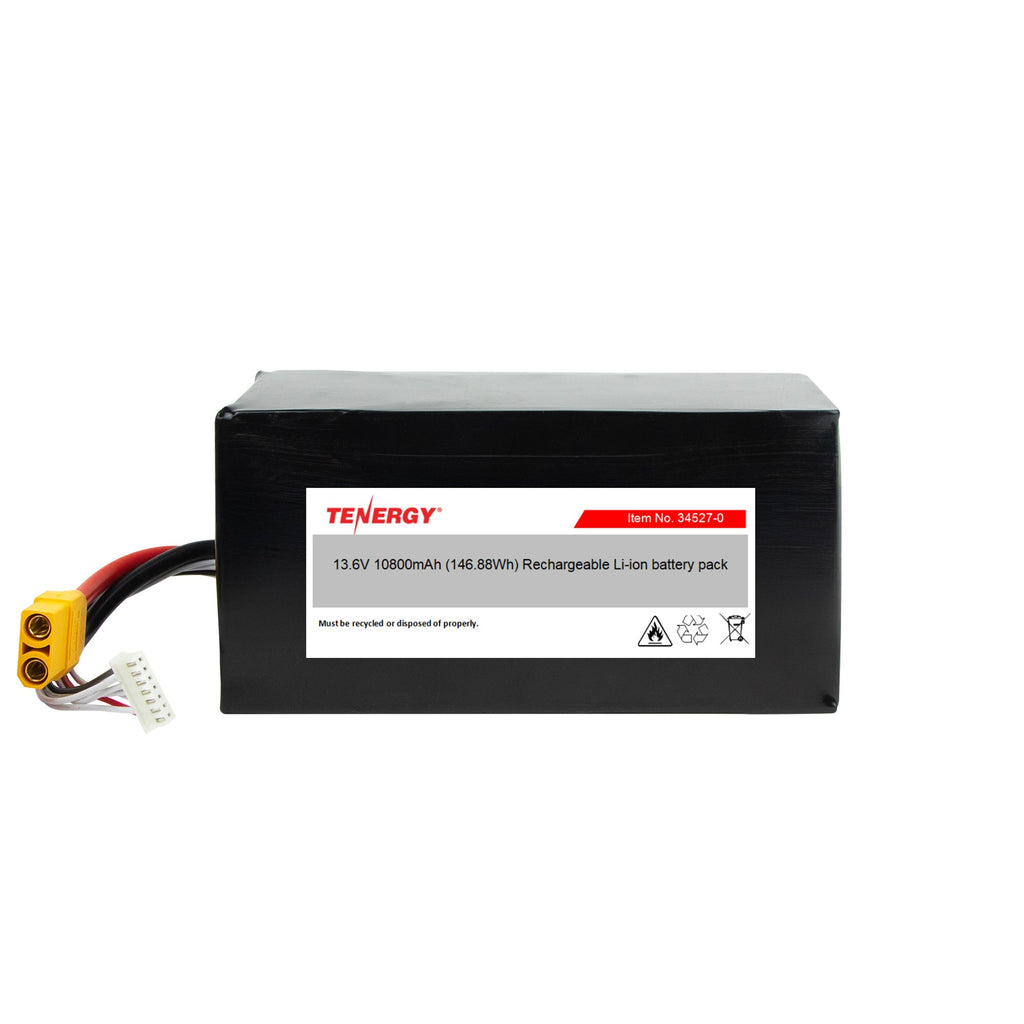

Shop the Tenergy Li-ion Polymer 13.6V 10,800mAh Rechargeable Battery Pack (4S1P, 146.88Wh, 32A Discharge) | Powered by Enovix / Amprius. Review the manufacturer description and specifications below to confirm voltage, capacity, dimensions, connector and compatibility for your application.
Product details and specifications
product highlights
- 32A Max Continuous discharge current (customizable for higher current)
- Compact Size: 5.2x4.9x15cm (LxWxH)
- Discharge/Charge connector: XT90 connector, 150mm 10AWG wire
- Balance Charge connector: JST XHP-5P balance connector, 70mm 22AWG wire
product highlights
- 32A Max Continuous discharge current (customizable for higher current)
- Compact Size: 5.2x4.9x15cm (LxWxH)
- Discharge/Charge connector: XT90 connector, 150mm 10AWG wire
- Balance Charge connector: JST XHP-5P balance connector, 70mm 22AWG wire
Specifications:
- Type: Pack
- Chemistry: Li-Polymer
- Nominal Voltage (V): 13.6
- Capacity (mAh): 10800
- Max Continuous Discharge Current: 32A Airflow Determined
- Burst Current: 86A for 10seconds Airflow Determined
- Battery Charging Current:
- 8 Amps Nominal
- 16 Amps Airflow Determined
- Weight: 460g
- Dimensions: 5.2x4.9x15cm (LxWxH)
- Connector:
- Discharge/Charge: XT90 connector, 150mm 10AWG wire
- Balance Charge: JST XHP-5P balance connector, 70mm 22AWG wire
- Maximum Cell Temperature Range: -20 to 70°C, 0 to 165°F
Safety Precaution and Liability Release Form:
- By completing a purchase of this item, you are acknowledging that you have fully read and agreed to the terms and conditions of the reliability release form below for this Amprius battery pack:
CAUTION:
- When working with Li-Polymer cells, they are very sensitive to charging characteristics and may explode if mis-handled.
- Users should have enough knowledge on Li-Polymer rechargeable batteries in charging, and discharging before use.
- We are not responsible for any damage caused by misuse or mishandling of these Li-Polymer battery packs.
- It is strongly suggest that you use our Smart Li-Ion battery chargers to recharge the battery pack
- Never use conventional DC adapter to charge the battery module - we are NOT responsible for any damage that is caused by improper charging.
- Do not make parallel connection with more than three modules to avoid uneven charge.
