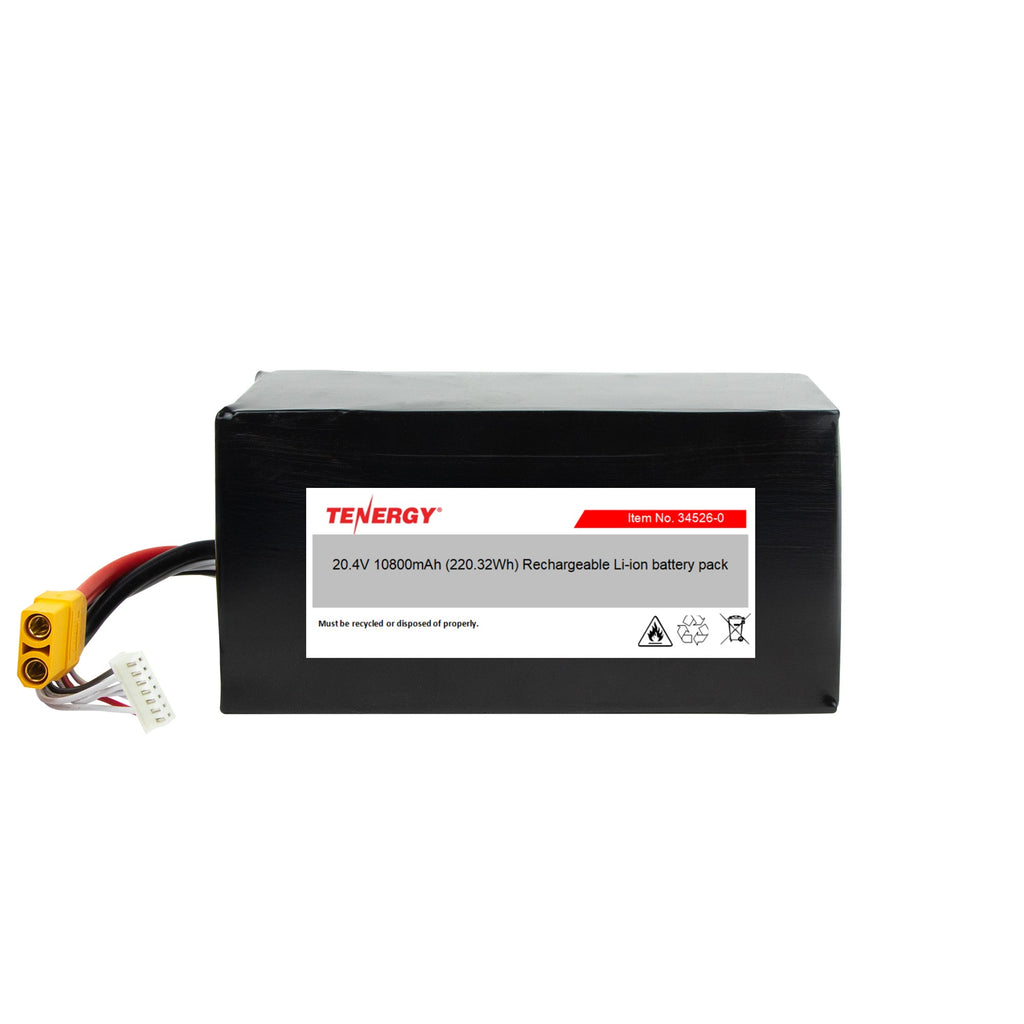

Shop the Tenergy Li-ion Polymer 20.4V 10,800mAh Rechargeable Battery Pack (6S1P, 220.32Wh, 30A Discharge) | Powered by Enovix / Amprius. Review the manufacturer description and specifications below to confirm voltage, capacity, dimensions, connector and compatibility for your application.
Product details and specifications
product highlights
- 30A Max continuous discharge current (customizable for higher current)
- Compact Size: 5.2x4.9x14cm (LxWxH)

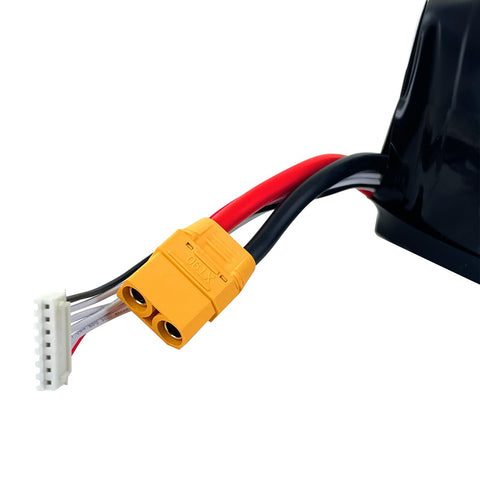

- Discharge/Charge Connector: XT90 connector, 150mm 10AWG wire
- Balance Charge Connector: JST XHP-7P balance connector, 70mm 22AWG wire
product highlights
- 30A Max continuous discharge current (customizable for higher current)
- Compact Size: 5.2x4.9x14cm (LxWxH)
- Discharge/Charge Connector: XT90 connector, 150mm 10AWG wire
- Balance Charge Connector: JST XHP-7P balance connector, 70mm 22AWG wire
Specifications:
- Type: Pack
- Chemistry: Li-Polymer
- Nominal Voltage (V): 20.4
- Capacity (mAh): 10800
- Max Continuous Discharge Current: 30A Airflow Determined
- Battery Charging Current:
- 10 Amps Nominal, 20 Amps Airflow Determined
- Weight: 675g
- Dimensions: 5.2x4.9x14cm (LxWxH)
- Connector:
- Discharge/Charge: XT90 connector, 150mm 10AWG wire
- Balance Charge: JST XHP-7P balance connector, 70mm 22AWG wire
- Maximum Cell Temperature Range: -20 to 70°C, 0 to 165°F
PCM Features:
- Over-voltage
- Under-voltage
- Short-circuit
- Over-current
- Over-Temperature
- Cell balancing
Safety Precaution and Liability Release Form:
- By completing a purchase of this item, you are acknowledging that you have fully read and agreed to the terms and conditions of the reliability release form below for this Amprius battery pack:
CAUTION:
- When working with Li-Polymer cells, they are very sensitive to charging characteristics and may explode if mis-handled.
- Users should have enough knowledge on Li-Polymer rechargeable batteries in charging, and discharging before use.
- We are not responsible for any damage caused by misuse or mishandling of these Li-Polymer battery packs.
- It is strongly suggest that you use our Smart Li-Ion battery chargers to recharge the battery pack
- Never use conventional DC adapter to charge the battery module - we are NOT responsible for any damage that is caused by improper charging.
- Do not make parallel connection with more than three modules to avoid uneven charge.
