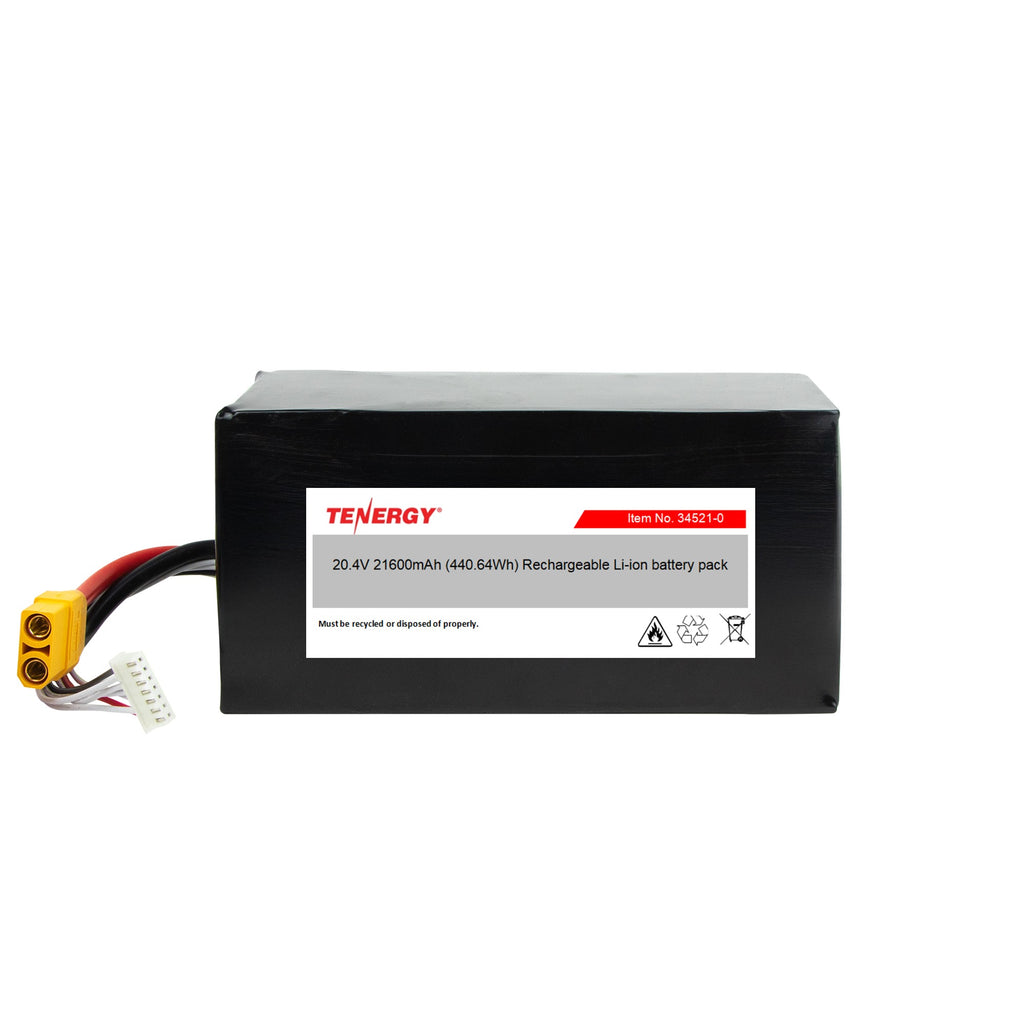

Shop the Tenergy Li-ion Polymer 20.4V 21,600mAh Rechargeable Battery Pack(6S2P, 440.64Wh, 60A Discharge) | Powered by Enovix / Amprius. Review the manufacturer description and specifications below to confirm voltage, capacity, dimensions, connector and compatibility for your application.
Product details and specifications
product highlights
- 60A Max Continuous discharge current
- Compact Size: 5.3x15.3x8.2cm (LxWxH)
- Built-in PCM features

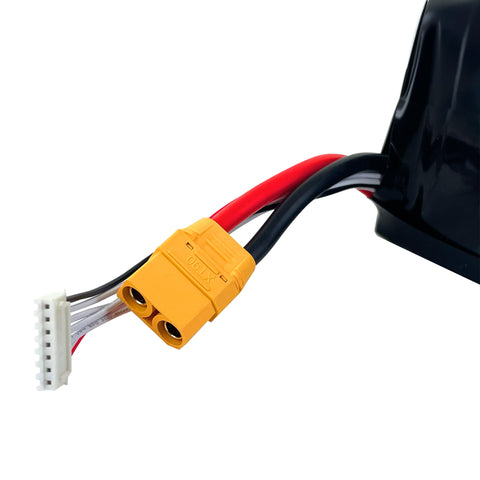

- Discharge/Charge: XT90 connector, 150mm 10AWG wire
- Balance Charge: JST XHP-7P balance connector, 70mm 22AWG wire
product highlights
- 60A Max Continuous discharge current
- Compact Size: 5.3x15.3x8.2cm (LxWxH)
- Built-in PCM features
- Discharge/Charge: XT90 connector, 150mm 10AWG wire
- Balance Charge: JST XHP-7P balance connector, 70mm 22AWG wire
Product Description:
- Ultra high energy density
- 60A Max Continuous discharge current (if you need more than 80A current draw, please contact us for customization)
- 5.3x15.3x8.2cm compact size
- Built-in protection features: Over-voltage; Under-voltage; Short-circuit; Over-current; Over-Temperature; Cell balancing
- Ideal battery pack for small-sized to mid-sized UAS (Unmanned Aircraft Systems)
- For technical support or product inquiry, contact: iad@tenergy.com
Specifications:
- Type: Battery Pack
- Chemistry: Li-ion Polymer
- Nominal Voltage (V): 20.4
- Capacity (mAh): 21,600
- Energy (Wh): 440.64
- Constant Discharge Current: 60A Airflow Determined
- Burst Current: 170A for 10 seconds Airflow Determined
- Charging Current:
- Standard:18A Nominal
- Rapid: 36A Airflow Determined
- Weight: 1335g
- Dimensions: 5.3x15.3x8.2cm (LxWxH)
- Connector/Wire:
- Discharge/Charge: XT90 connector, 150mm 10AWG wire
- Balance Charge: JST XHP-7P balance connector, 70mm 22AWG wire
- Maximum Cell Temperature Range: -20 to 70°C, 0 to 165°F
PCM Features:
- Over-voltage
- Under-voltage
- Short-circuit
- Over-current
- Over-Temperature
- Cell balancing
Safety Precaution and Liability Release Form:
- By completing a purchase of this item, you are acknowledging that you have fully read and agreed to the terms and conditions of the reliability release form below for this Amprius battery pack:
CAUTION:
- When working with Li-ion packs, they are very sensitive to charging characteristics and may explode if mis-handled.
- Users should have enough knowledge on Li-ion rechargeable batteries in charging, and discharging before use.
- We are not responsible for any damage caused by misuse or mishandling of these Li-ion battery packs.
- Never use conventional DC adapter to charge the battery module - we are NOT responsible for any damage that is caused by improper charging.
- Do not make parallel connection with more than three modules to avoid uneven charge.
