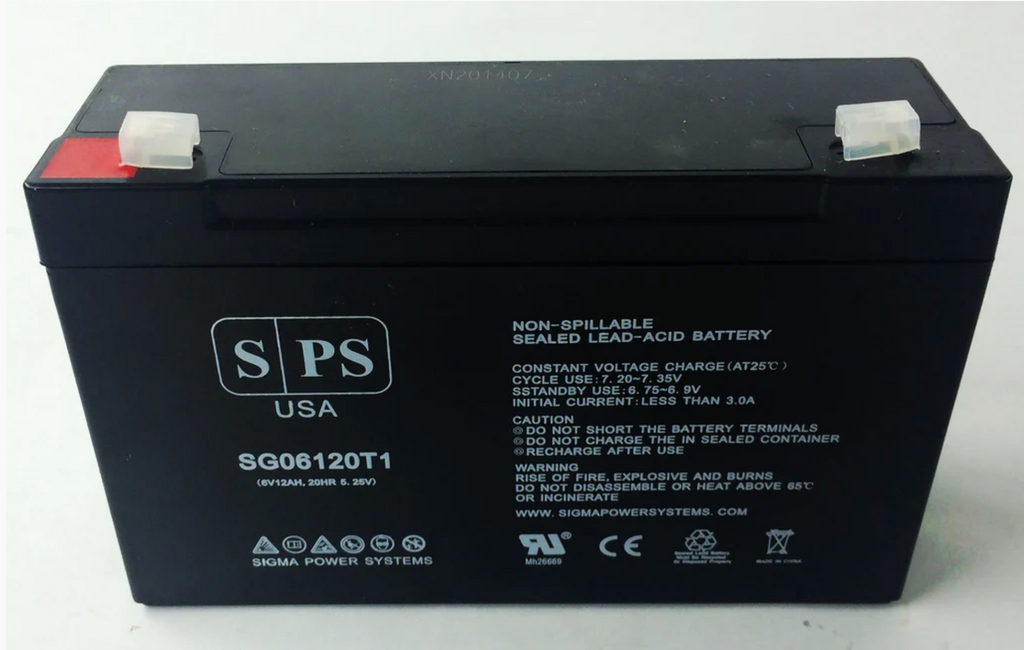

Sigma SG06120T1 6V 12Ah AGM Battery is a rechargeable AGM sealed lead-acid battery. Each battery is rated 6V 12Ah. Match the dimensions, terminal connections and polarity to your equipment.
Sigma SG06120T1 battery specifications
| Specification | Details |
|---|---|
| Model | SG06120T1 |
| Nominal voltage | 6V |
| Capacity | 12Ah |
| Chemistry | AGM sealed lead-acid |
| Rechargeable | Yes |
| Terminal type | T1/F1 blade |
| Terminal width | 0.187 inch / approximately 4.75 mm |
| Listed dimensions | 5.94″ L × 1.97″ W × 3.94″ H |
| Listed weight | 3.75 lb |
Selecting the correct 6V replacement battery
Check the voltage printed on your current battery and specified in your equipment documentation. The SG06120T1 is a 6V battery; a 12Ah capacity rating alone does not make it interchangeable with a 12V 12Ah model.
Confirm that your equipment and charger support a 6V AGM sealed lead-acid battery. Then compare the required capacity, battery dimensions, terminal positions, and polarity.
For equipment that uses several batteries, verify the required quantity and wiring configuration before selecting replacements.
Match the T1/F1 blade terminals
This battery uses 0.187-inch T1/F1 terminals. These are narrower than 0.250-inch T2/F2 terminals, so check the size of your existing cable connectors.
The connectors should match the specified terminal width, and the positive and negative connections must align with your equipment’s wiring. A similar-looking battery may use a different terminal arrangement.
Measure the battery compartment
Compare the available space with the listed 5.94-inch length, 1.97-inch width, and 3.94-inch height. Check the retaining bracket or mounting arrangement and leave sufficient clearance for the attached cables.
Physical fit matters alongside electrical specifications. Confirm both before ordering a replacement.
Order a Sigma SG06120T1 or request volume pricing
Buy online from Rocket Distributing, or request a quote for maintenance, service, and resale quantities.
Email Sales@RocketDistributing.com with the model SG06120T1, required quantity, delivery location, and timing. If you need help checking a match, include your equipment model and clear photos of the existing battery label and connections.
Browse our Sigma Batteries collection to compare other voltages, capacities, and terminal options.
